My Part Number:
Part Number: FZK01170.0-02
Manufacturer Code: 01170.0-02
Multiples of: 1 | Minimum Order: 1
MECHANICAL THERMOSTAT
FZK 011
The set value corresponds to the upper switch point at which the contact breaker opens. The set value, minus the switch temperature difference of 5 K (and tolerances) corresponds to the lower switch point at which the contact breaker closes. The mechanical thermostat is used for controlling heaters, coolers, filter fans or signal devices.
• Adjustable temperature
• Small hysteresis allows for precise regulation
• High switching capacity
• Change-over contact (heating or cooling)
• Clip-mounted
Switch temperature difference: 5 K (-3/+2 K tolerance)¹
Sensor element: thermostatic bimetal
Contact type: change-over snap-action contact
Service life: > 100,000 cycles
Min. switching capacity: 10 mA
Max. switching capacity, NC: AC 250 V / AC 120 V, 10 (4) A, DC 30 W
Max. switching capacity, NO: AC 250 V / AC 120 V, 5 (2) A, DC 30 W
Max. inrush current: AC 16 A for 10 s
Connection: 4-pole terminal, clamping torque 0.5 Nm max.: rigid/stranded² wire 2.5 mm² (AWG 14)
Mounting: clip for 35mm DIN rail, EN 60715
Casing: plastic according to UL94 V-0, light grey

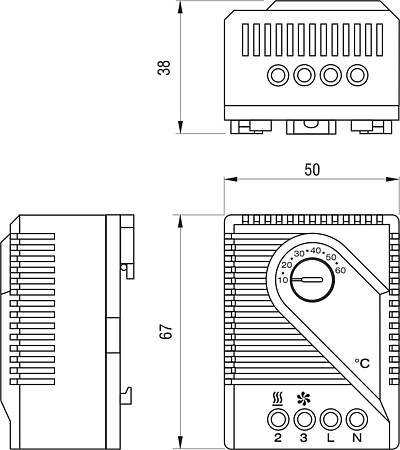

Dimensions: 67 x 50 x 38 mm
Weight: ~ 0,1 kg
Fitting position: variable
Operating/Storage temperature: -45 to +65 °C (-49 to +149 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type: IP20
Approvals: UL File No. E164102, EAC
¹ If the Normally Closed contact is used, the switch temperature difference could be reduced by connecting terminal "N" (RF heating resistor). It causes the thermal feedback which is subject to surrounding conditions and thus has to be determined for each individual application.
² When connecting with stranded wires, wire end ferrules must be used.
Brand |
STEGO |
|
£24.96
per 1 (ex. VAT)£29.95
per 1 (inc. VAT)
