My Part Number:
Part Number: LP16502.0-00
Manufacturer Code: 16502.0-00
Multiples of: 1 | Minimum Order: 1

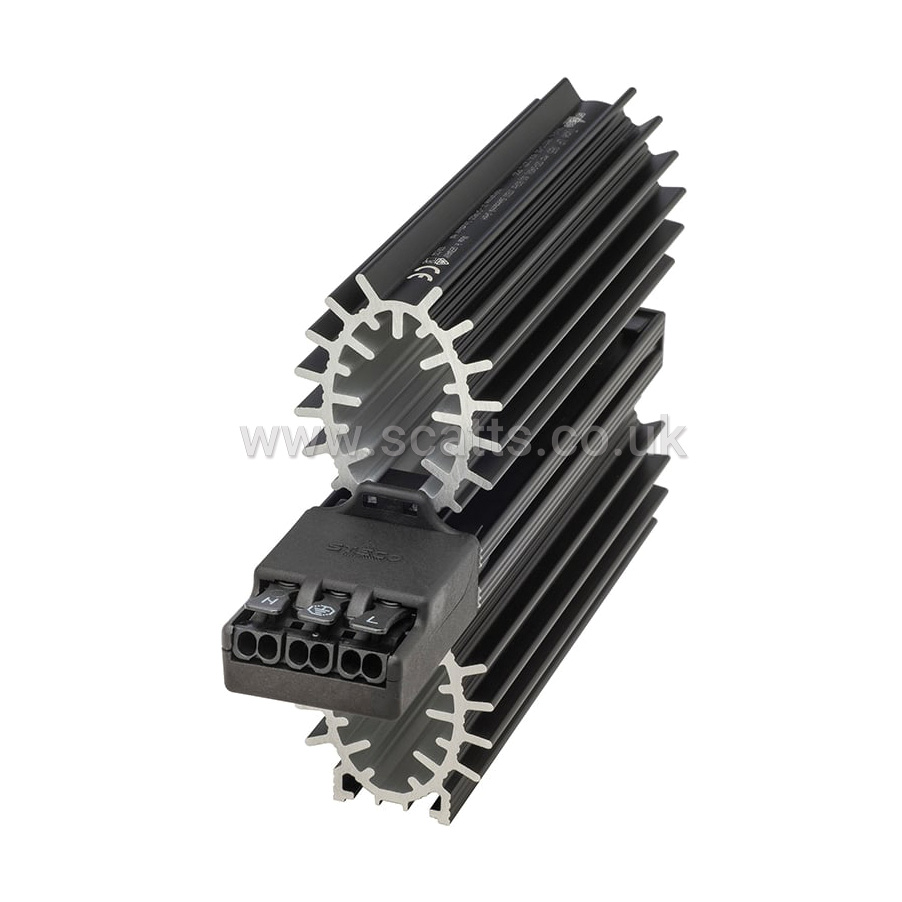

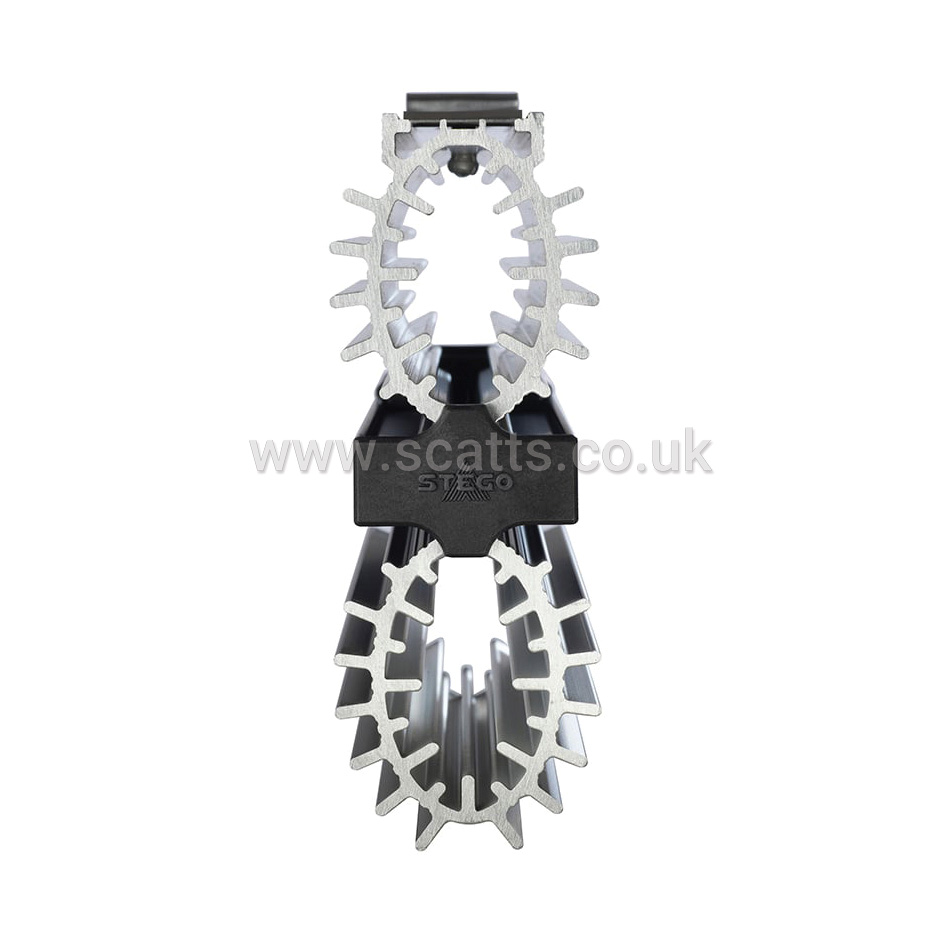

ENCLOSURE HEATER
LP 165 | 75 W
Compact heater with PTC heating elements for heating enclosures with electrical or electronic components. The innovative aluminium profile in loop design creates a chimney effect, which ensures great convection resulting in excellent heat dissipation within the enclosure. The practical push-in clamping terminal ensures quick and easy electrical connection.
• Clip fixing and pressure clamp for quick mounting
• Dynamic heating up through PTC technology
• Heater body in loop design for optimal temperature distribution
• Wide voltage range
• Additional approvals
Operating voltage: AC/DC 120-240 V (min. 110 V, max. 265 V)
Heating element: PTC resistor - temperature limiting
Heater body: extruded aluminium profile, anodised
Connection: 3 x pressure clamps for stranded wire 0.5 - 1.5 mm²(with wireend ferule) and rigid wire 0.5 – 2.5 mm²
Connection casing: plastic according to UL94 V-0, black
Mounting: clip for 35 mm DIN rail, EN 60715
Fitting position: vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature: -45 °C to +70 °C (-49 °F to +158 °F)
Operating/Storage humidity: < 90 % RH (non-condensing)
Protection type/Protection class: IP20 / I (earthed)
Approvals: VDE, UL File No. 234324, EAC
Brand |
STEGO |
|
£48.78
per 1 (ex. VAT)£58.54
per 1 (inc. VAT)
