10W UL HEATER+LOOP CBL110-265V

ENCLOSURE HEATER

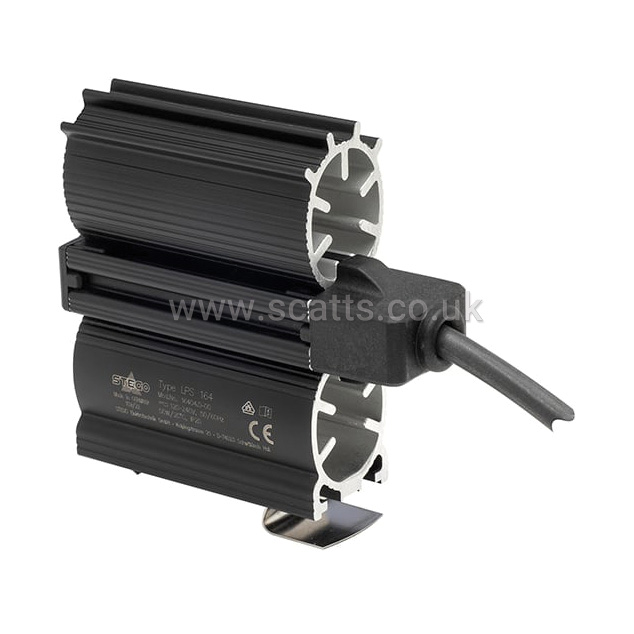

LPS 164 | 10 W


Compact heater with PTC heating elements for heating enclosures with electrical or electronic components. The heater prevents too low temperatures and thus condensation harming the components. The design of the aluminium profile creates a chimney effect, which ensures even temperature distribution within the enclosure.
• Clip fixing for quick mounting
• Dynamic heating up through PTC technology

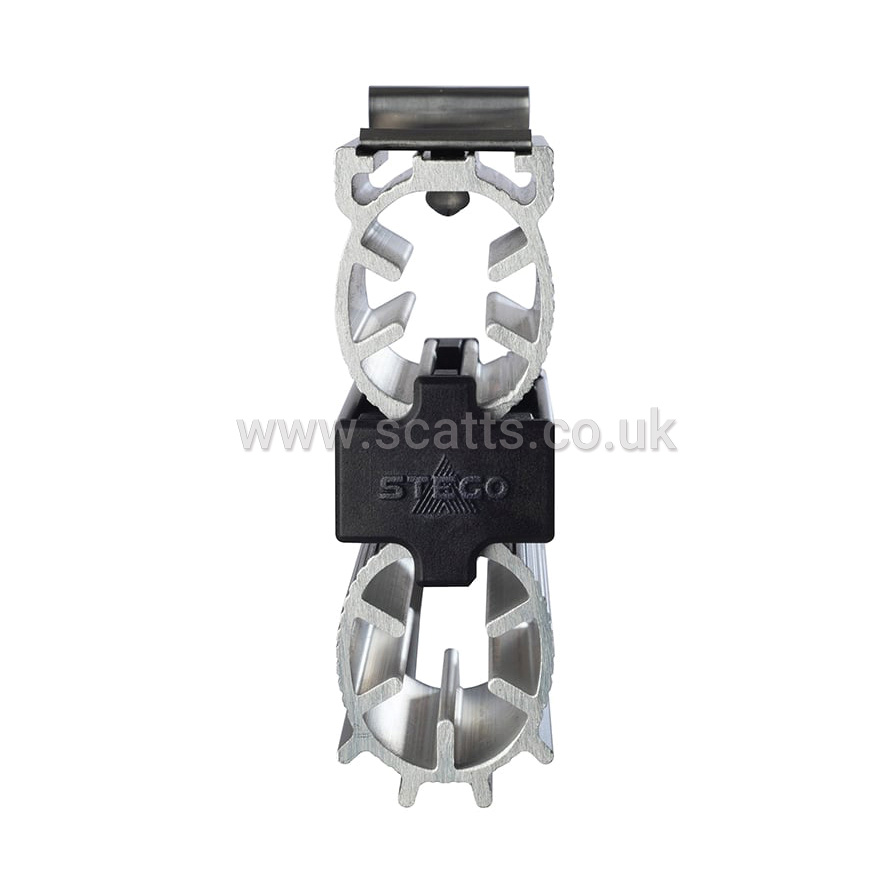

• Heater body in loop design for optimal temperature distribution
• Wide voltage range

Operating voltage: AC/DC 120-240 V (min. 110 V, max. 265 V)
Heating element: PTC resistor - temperature limiting
Heater body: aluminium profile, anodised
Connection: 3 x 0.5 mm2 x 300 mm cable
Dimensions: 83 x 25 x 76 mm
Mounting: clip for 35 mm DIN rail, EN 60715
Fitting position: vertical airflow (air outlet up, connection on bottom)
Weight: ~ 0,2 kg
Operating/Storage temperature: -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90 % RH (non-condensing)
Protection type/Protection class: IP20 / I (earthed)
