My Part Number:
Part Number: LTS06401.0-00
Manufacturer Code: 06401.0-00
Multiples of: 1 | Minimum Order: 1

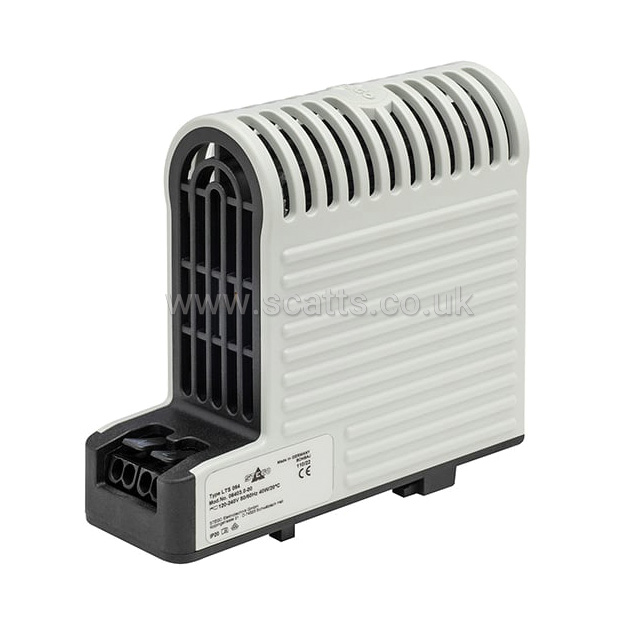

ENCLOSURE HEATER
LTS 064 | 20 W
Compact heater for the protection of electrical and electronic components in enclosures. Its design ensures great convection resulting in excellent heat dissipation. A touch-safe plastic cover provides for low surface temperatures on the side of the device. The practical push-in clamping terminal enables quick and easy electrical connection.
• Clip fixing and pressure clamp for quick mounting
• Low surface temperature
• Earthed plastic casing
• Wide voltage range
• Heater body in loop design for optimal temperature distribution
• Shock and vibration proof
Operating voltage: AC/DC 120 –240 V (min. 110 V, max. 265 V)
Heating element: PTC resistor – temperature limiting
Surface temperature: < +80 °C (+176 °F), except upper protective grille
Connection: 2 x pressure clamps for stranded wire 0.5 - 1.5 mm²(with wireend ferule) and rigid wire 0.5 – 2.5 mm²
Casing: plastic according to UL94 V-0, black and white
Dimensions: 105 x 38 x 99 mm
Mounting: clip for 35 mm DIN rail, EN 60715
Fitting position: vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature: -45 °C to +70 °C (-49 °F to +158 °F)
Operating/Storage humidity: < 90 % RH (non-condensing)
Protection type/Protection class: Protection type/Protection class
Approvals: VDE, UL File No. E234324, EAC, DIN EN 60068-2-27:2010-02, DIN EN 60068-2:64:2009-04, in Bezug auf DIN EN IEC 61373:2011-04, Kat. 1 B
Brand |
STEGO |
|
£23.08
per 1 (ex. VAT)£27.70
per 1 (inc. VAT)
