My Part Number:
Part Number: MFR01220.0-00
Manufacturer Code: 01220.0-00
Multiples of: 1 | Minimum Order: 1
MECHANICAL HYGROSTAT
MFR 012
The hygrostat is used to prevent condensation and regulates heaters and fans. From a critical relative humidity of 65%, the temperature is increased so as to raise the dew point.
• Adjustable relative humidity
• Change-over contact (heating or cooling)
• High switch performance
• Clip-mounted
Switch difference¹: 4% RH (±3% tolerance)
Permissible air velocity: 15m/s
Contact type: change-over contact
Service life: > 50,000 cycles
Min. switching capacity: 20 VAC / DC 100 mA
Max. switching capacity: 250 VAC, 5 A, DC 20 W
Connection: 3-pole terminal for 2.5 mm², clamping torque 0.5 Nm max.:, rigid wire 2.5 mm² (AWG 14), stranded wire² 1.5 mm² (AWG 16)
Mounting: clip for 35 mm DIN rail, EN 60715
Casing: plastic according to UL94 V-0, light grey

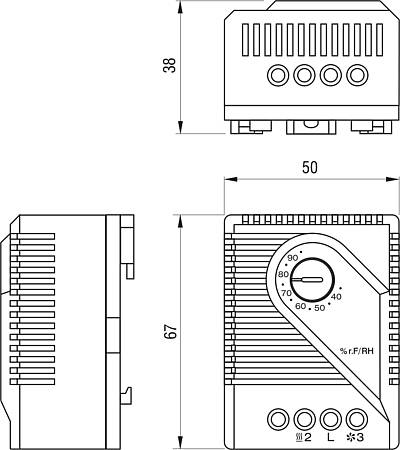

Dimensions: 67 x 50 x 38 mm
Weight: ~ 60 g
Fitting position: variable
Operating/Storage temperature: 0 to +60 °C (+32 to +140 °F) / -40 to +60 °C (-40 to +140 °F)
Operating/Storage humidity: < 95% RH (non-condensing)
Protection type: IP20
Approvals: UL File No. E164102, EAC, CQC
¹ at 50% RH
² When connecting with stranded wires, wire end ferrules must be used.
Brand |
STEGO |
|
£73.74
per 1 (ex. VAT)£88.49
per 1 (inc. VAT)
