My Part Number:
Part Number: RC01609.0-00
Manufacturer Code: 01609.0-00
Multiples of: 1 | Minimum Order: 1
FLAT ENCLOSURE HEATER
RC 016 | 10 W
The small and flat enclosure heater provides the best protection against condensation in small control cabinets, enclosures and installation spaces. The PTC heating element transmits its heat onto an anodised aluminium profile. The compact contact heater is designed for long-term use.
• Wider range of voltages for electrical connection
• PTC heating element with dynamic response behaviour
• Compact dimensions, example application: camera heater
• High heating output per volume
Operating voltage: AC/DC 120-240 V¹ (min. 110 V, max. 265 V)
Heating element: PTC resistor - temperature limiting
Heater body: aluminium, anodised
Connection: 2 x AWG 20 stranded wire, 300 mm (±8)

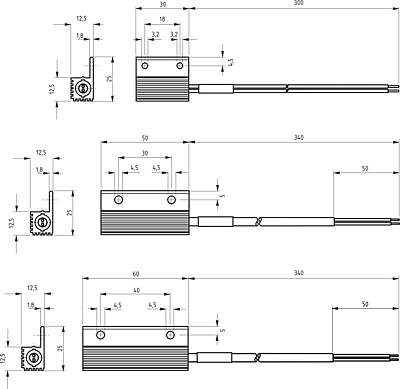

Dimensions: 01651.0-00: L1 = 35 mm, L2 = 30 mm, L3 = 18 mm and Ø 3,2 mm, 01662.0-00: L1 = 55 mm, L2 = 50 mm, L3 = 30 mm and Ø 4,5 mm, 01673.0-00: L1 = 65 mm, L2 = 60 mm, L3 = 40 mm and Ø 4,5 mm
Surface temperature: < +180 °C (+356 °F)
Mounting: screw fixing
Fitting position: variable
Operating temperature: VDE: -45 to +70 °C (-49 to +158 °F), UL: -45 to +40 °C (-49 to +104 °F)
Storage temperature: -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP40 / II (double insulated)
Approvals: VDE, UL File No. E234324 (according to UL 508A, NITW File on request), EAC
Brand |
STEGO |
|
£12.32
per 1 (ex. VAT)£14.78
per 1 (inc. VAT)
