S/L LAMP + MAGNET + SOCKET + PIR 230

ENCLOSURE LAMP WITH ENERGY-SAVING BULB
SL 025 | PIR MOTION SENSOR

The slimline enclosure lamp with PIR motion sensor uses the tried and tested energy-saving bulb as a light source. A luminous flux of 900 lm is emitted to illuminate control cabinets and enclosures for the purpose of safe working conditions. Electronic ballast and optional socket are integrated inside the enclosure lamp's slimline housing.

• PIR motion sensor with fixed duty cycle

Power consumption: 9 W
Luminous flux: 510 Lm (equals 45 W light bulb)
Lamp type: energy saving lamp, 2G7 socket
Service life: 10,000 h
Switch: PIR movement sensor, approx. 6 min. fixed switch-on duration
Connection: terminal 2.5 mm² with cable clamp, torque 0.8 Nm max.
Mounting: screw fixing, M5, 300mm centers, magnet fixing (optional)
Casing: plastic according to UL94 V-0, light grey

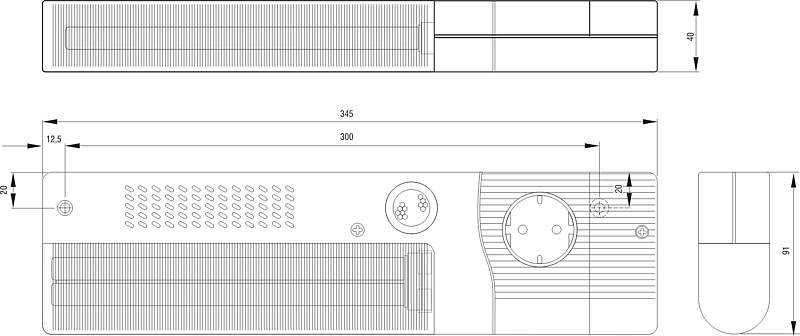

Dimensions: 345 x 91 x 40 mm
Fitting position: narrow surface/broad surface
Operating/Storage temperature: -20 to +50 °C (-4 to +122 °F) / -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type: IP20
