S/L LAMP + MAGNET + SOCKET + SW.230V

ENCLOSURE LAMP WITH ENERGY-SAVING BULB
SL 025 | ON/OFF SWITCH

Slimline enclosure lamp with on/off switch and energy-saving bulb as light source. A luminous flux of 900 lm is emitted to illuminate control cabinets and enclosures for the purpose of safe working conditions. Electronic ballast and optional socket are integrated inside the enclosure lamp's slimline housing.

• On/off switch with integrated electronic ballast
• Screw-mounted or optionally magnet-mounted

Power consumption: 9 W
Luminous flux: 510Lm (equals 45W light bulb)
Lamp type: energy saving lamp, 2G7 socket
Service life: 10.000 h
Switch: on/off light switch
Connection: terminal 2.5 mm² with cable clamp, torque 0.8 Nm max.
Mounting: screw fixing, M5, 300 mm centers, magnet fixing (optional)
Casing: plastic according to UL94 V-0, light grey

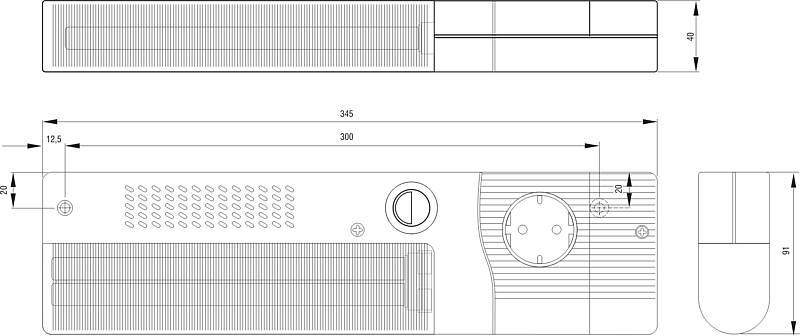

Dimensions: 345 x 91 x 40 mm
Fitting position: narrow surface/broad surface
Operating/Storage temperature: -20 to +50 °C (-4 to +122 °F) / -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type: IP20
