My Part Number:
Part Number: STO01115.0-00
Manufacturer Code: 01115.0-00
Multiples of: 1 | Minimum Order: 1

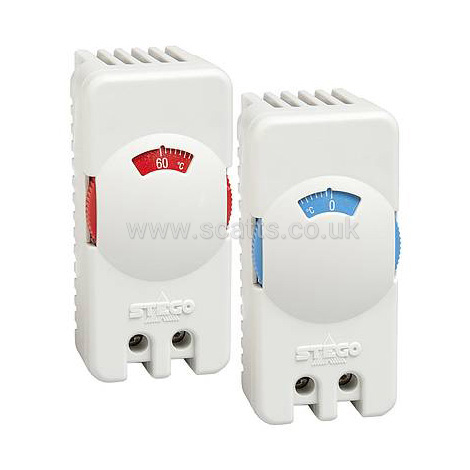

THERMOSTAT SWITCH NC NORMALLY CLOSED
STO 011
The mechanical thermostat opens when the temperature rises. Used for regulating heaters or switching signal devices in the event that the temperature limit is exceeded. The bimetal thermostat has a small hysteresis and an anti-frost setting.
• Resting adjustment dial
• Small hysteresis allows for precise regulation
• Anti-frost setting
• Optimised air inlets
• High switching capacity
Switch temperature difference: 4 K (±3 K tolerance)
Sensor element: thermostatic bimetal
Contact type: snap-action contact
Service life: > 100,000 cycles
Max. switching capacity: AC 250 V, 10 (2) A / AC 120 V, 15 (2) A, DC 30 W at DC 24 V to DC 72 V
Max. inrush current: AC 16 A for 10 s
Connection: 2-pole terminal, clamping torque 1 Nm max.: rigid/stranded1 wire 2.5mm² (AWG 14)
Mounting: clip for 35mm DIN rail, EN 60715
Casing: plastic according to UL94V-0, light grey

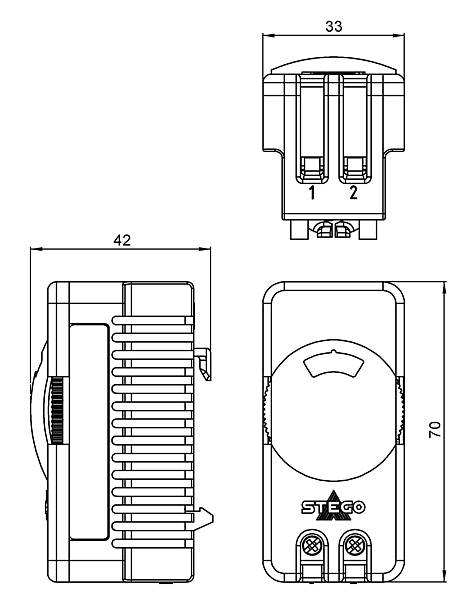

Dimensions: 70 x 33 x 42 mm
Weight: ~ 50 g
Fitting position: variable
Operating/Storage temperature: -45 to +80 °C (-49 to +176 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type: IP20
Approvals: VDE, UL File No. E164102, EAC
¹ When connecting with stranded wires, wire end ferrules must be used.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
Brand |
STEGO |
|
£19.34
per 1 (ex. VAT)£23.21
per 1 (inc. VAT)
