My Part Number:
Part Number: ZR01172.0-00
Manufacturer Code: 01172.0-00
Multiples of: 1 | Minimum Order: 1
DUAL THERMOSTAT
ZR 011
Thermostat NC (normally closed) and thermostat NO (normally open) in a single enclosure. Unlike thermostats with change-over contact, the dual thermostat switches independently. This allows heaters and coolers to be switched in different temperature ranges.
• NC (heating) and NO (cooling) thermostats in one casing
• Snap-action contact enables independent switching
• Temperatures can be set separately
• High switching capacity
• Clip-mounted
Switch temperature difference: 7 K (±4 K tolerance)
Sensor element: thermostatic bimetal
Contact type: snap-action contact
Service life: > 100,000 cycles
Max. switching capacity: AC 250 V, 10 (2) A, AC 120 V, 15 (2) A, DC 30 W at DC 24 V to DC 72 V
Max. inrush current: AC 16 A for 10 s
Connection: 4-pole terminal, clamping torque 0.5 Nm max.: rigid wire 2.5 mm² (AWG 14), stranded wire1 1.5 mm² (AWG 16)
Mounting: clip for 35 mm DIN rail, EN 60715
Casing: plastic according to UL94 V-0. light grey

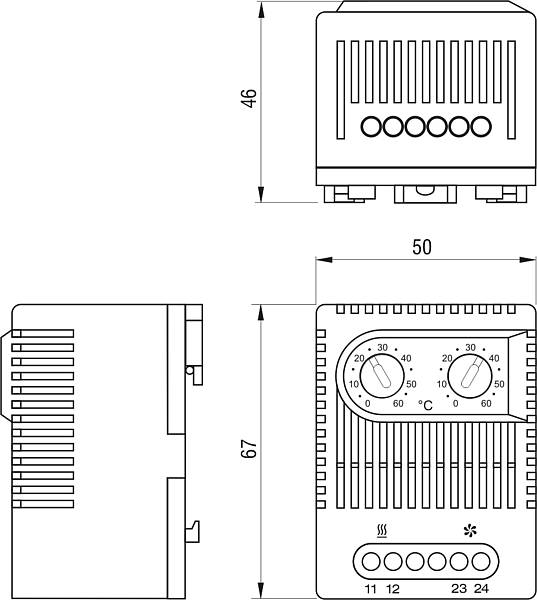

Dimensions: 67 x 50 x 46 mm
Weight: ~ 90 g
Fitting position: variable
Operating/Storage temperature: -45 to +80 °C (-49 to +176 °F)
Operating/Storage temperature: < 90% RH (non-condensing)
Protection type: IP20
Approvals: VDE, UL File No. E164102, CSA, EAC
¹ When connecting with stranded wires, wire end ferrules must be used.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
Brand |
STEGO |
|
£23.85
per 1 (ex. VAT)£28.62
per 1 (inc. VAT)
