My Part Number:
Part Number: XVBC9B
Multiples of: 1 | Minimum Order: 1

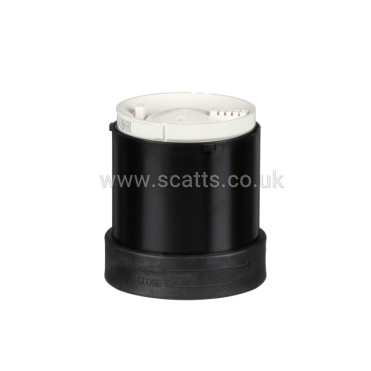

Audible unit for modular tower lights, plastic, Ø70, buzzer, continuous or intermitten tone,70 - 90 dB, 12-48 V AC/DC
Range of product: Harmony XVB Universal
Product or component type: Indicator bank
Beacon or indicator bank unit type: Audible unit
Mounting diameter: 70 mm
Noise level: 70-90 dB at 1 m
[Us] rated supply voltage: 12-48 V AC/DC
Signalling type: Continuous or intermittent buzzer
Assembly style: Customer assembly, up to 5 units
Connections - terminals: Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage: 250 V conforming to IEC 60947-1
Nominal voltage limit: 0.85-1.1 Un conforming to IEC 60947-5-1
Current consumption: < 15 mA
[Uimp] rated impulse withstand voltage: IEC 60947-1 4 kV
Fundamental frequency: 2.8 kHz
CAD overall width: 70 mm
CAD overall height: 63 mm
CAD overall depth: 70 mm
Brand |
SCHNEIDER TELEMECANIQUE |
|
£118.14
per 1 (ex. VAT)£141.77
per 1 (inc. VAT)
