M12F-A STR.4P CONN. SCREW TERM

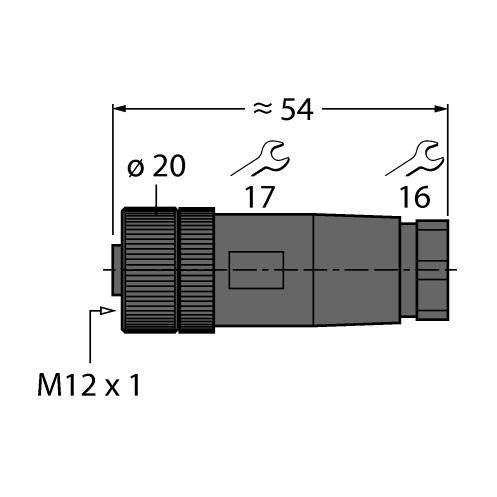

Field-Wireable Connector - Female Connector M12 × 1, Straight

• Plastic coupling nut
• UL approval
• Screw-clamp terminal
• A-coding
• 4-pin
• PG9 screw-in thread
• Cable feedthrough 6.0…8.0 mm


Technical Data

Application: Signal
Connector A: Female, M12 × 1, Straight, A-coded
Number of pins: 4
Connection mode: Screw/clamp connection
Screw-in thread: PG9
Housing material: Plastic, PA
Coupling nut/screw material: Plastic, PA, Black
External diameter of the cable: 6…8 mm
Core cross-section/Clamping ability: 0.14…0.75 mm²
Voltage: 250 V
Current: 4 A
Approvals: cULus recognized
