My Part Number:
Part Number: 2000-5317/102-000
Manufacturer Code: 2000-5317/102-000
Multiples of: 1 | Minimum Order: 1

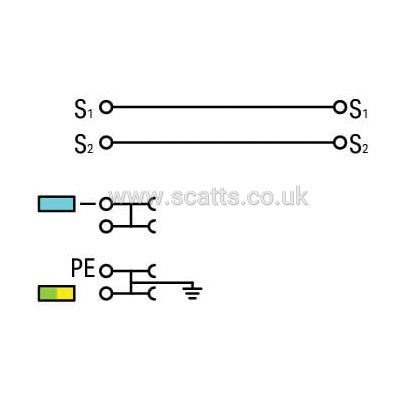

3-conductor actuator supply terminal block for PNP-(high-side) switching actuators, With ground contact, with colored conductor entries, 1 mm², Push-in CAGE CLAMP®, 1.00 mm², gray
3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)
The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.
Connection points: 8
Total number of potentials: 4
Number of levels: 3
Number of jumper slots: 4
Number of jumper slots: 2
Width: 7 mm / 0.276 inches
Height: 81.1 mm / 3.193 inches
Depth from upper-edge of DIN-rail: 52.4 mm / 2.063 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: gray
Material group: I
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Brand |
WAGO |
|
£839.00
per 100 (ex. VAT)£1,006.80
per 100 (inc. VAT)
