My Part Number:
Part Number: 2000-5477
Manufacturer Code: 2000-5477
Multiples of: 1 | Minimum Order: 1

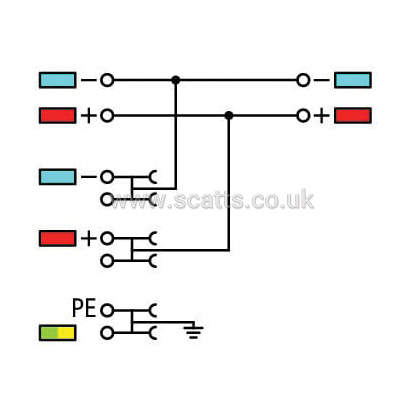

4-conductor sensor supply terminal block with ground contact and with colored conductor entries - 1 mm², Push-in CAGE CLAMP®, 1.00 mm², orange
3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)
The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.
Connection points: 10
Total number of potentials: 5
Number of levels: 4
Width: 7 mm / 0.276 inches
Height: 97.3 mm / 3.831 inches
Depth from upper-edge of DIN-rail: 52.4 mm / 2.063 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: orange
Material group: I
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Brand |
WAGO |
|
£919.00
per 100 (ex. VAT)£1,102.80
per 100 (inc. VAT)
4-conductor sensor supply terminal block with ground contact and with colored conductor entries - 1 mm², Push-in CAGE CLAMP®, 1.00 mm², orange
3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)
The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.
Connection points: 10
Total number of potentials: 5
Number of levels: 4
Width: 7 mm / 0.276 inches
Height: 97.3 mm / 3.831 inches
Depth from upper-edge of DIN-rail: 52.4 mm / 2.063 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: orange
Material group: I
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Brand |
WAGO |
|
