My Part Number:
Part Number: 2001-1401
Manufacturer Code: 2001-1401
Multiples of: 1 | Minimum Order: 1

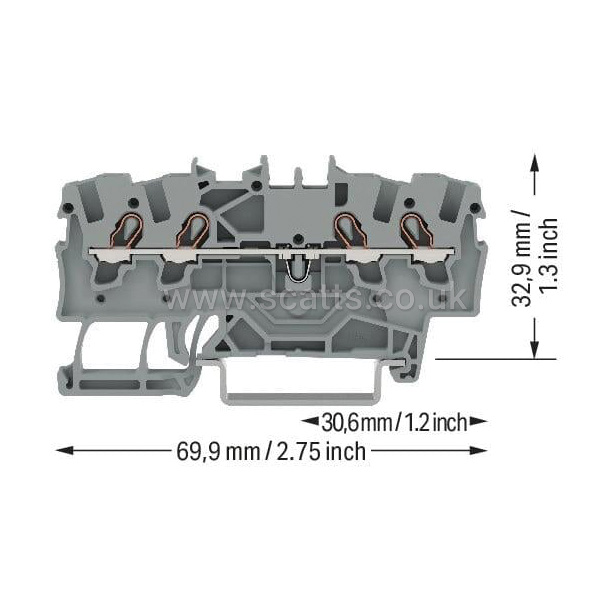

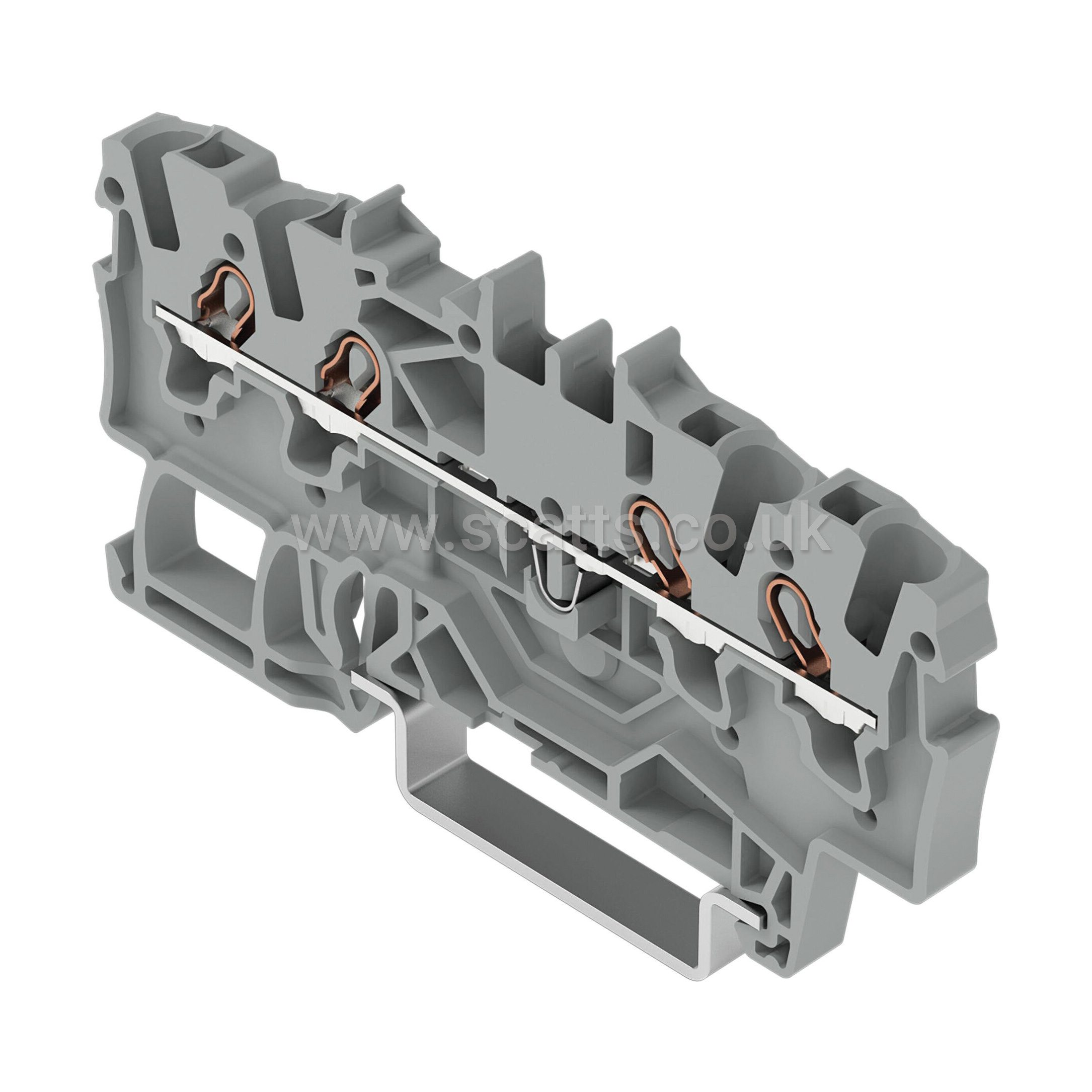

4-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; gray
Width: 4.2 mm / 0.165 inches
Height: 69.9 mm / 2.752 inches
Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: gray
Material group: I
Insulation material :Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 0.128MJ
Weight: 5.9g
Brand |
WAGO |
|
Conductor Size |
1.5 mm² |
|
£94.00
per 100 (ex. VAT)£112.80
per 100 (inc. VAT)
4-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; gray
Width: 4.2 mm / 0.165 inches
Height: 69.9 mm / 2.752 inches
Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: gray
Material group: I
Insulation material :Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 0.128MJ
Weight: 5.9g
Brand |
WAGO |
|
Conductor Size |
1.5 mm² |
|
