My Part Number:
Part Number: 2001-1404
Manufacturer Code: 2001-1404
Multiples of: 1 | Minimum Order: 1

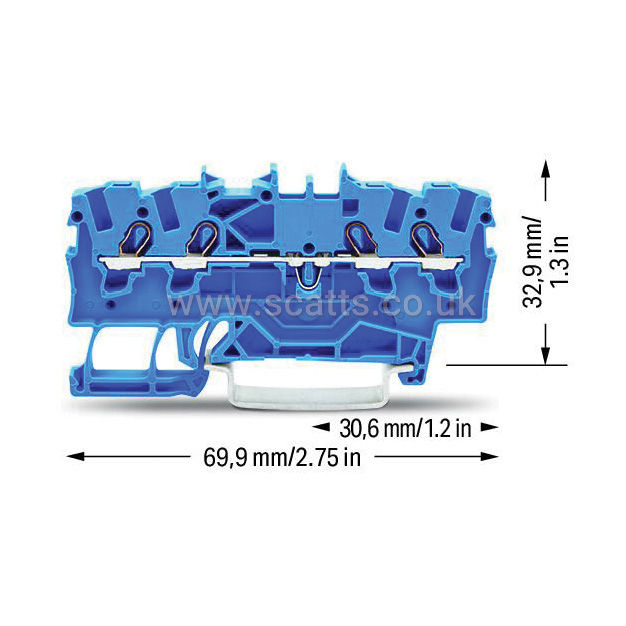

4-conductor through terminal block; 1.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; blue
Width: 4.2 mm / 0.165 inches
Height: 69.9 mm / 2.752 inches
Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: blue
Material group: I
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 0.124MJ
Weight: 5.1g
Brand |
WAGO |
|
Conductor Size |
1.5 mm² |
|
£96.00
per 100 (ex. VAT)£115.20
per 100 (inc. VAT)
4-conductor through terminal block; 1.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; blue
Width: 4.2 mm / 0.165 inches
Height: 69.9 mm / 2.752 inches
Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: blue
Material group: I
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 0.124MJ
Weight: 5.1g
Brand |
WAGO |
|
Conductor Size |
1.5 mm² |
|
