My Part Number:
Part Number: 2002-1201
Manufacturer Code: 2002-1201
Multiples of: 1 | Minimum Order: 1

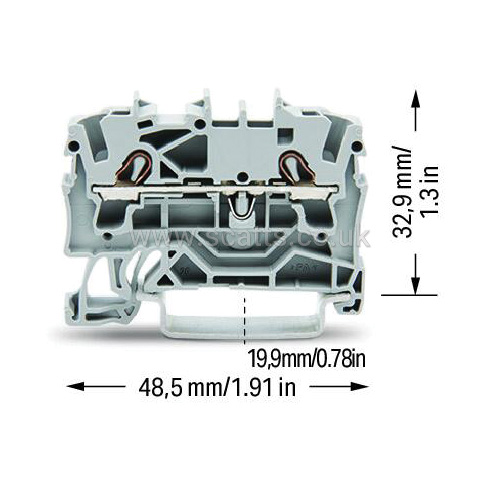

2-conductor through terminal block - 2.5 mm², Suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2,50 mm², gray
Connection points: 2
Total number of potentials: 1
Number of levels: 1
Number of jumper slots: 2
Width: 5.2 mm / 0.205 inches
Height: 48.5 mm / 1.909 inches
Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: gray
Material group: I
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Brand |
WAGO |
|
Conductor Size |
2.5 mm² |
|
£73.00
per 100 (ex. VAT)£87.60
per 100 (inc. VAT)
2-conductor through terminal block - 2.5 mm², Suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2,50 mm², gray
Connection points: 2
Total number of potentials: 1
Number of levels: 1
Number of jumper slots: 2
Width: 5.2 mm / 0.205 inches
Height: 48.5 mm / 1.909 inches
Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
Mounting type: DIN-35 rail
Marking level: Center/side marking
Colour: gray
Material group: I
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Brand |
WAGO |
|
Conductor Size |
2.5 mm² |
|
