My Part Number:
Part Number: 221-2411/BOX60
Manufacturer Code: 221-2411
Multiples of: 1 | Minimum Order: 1

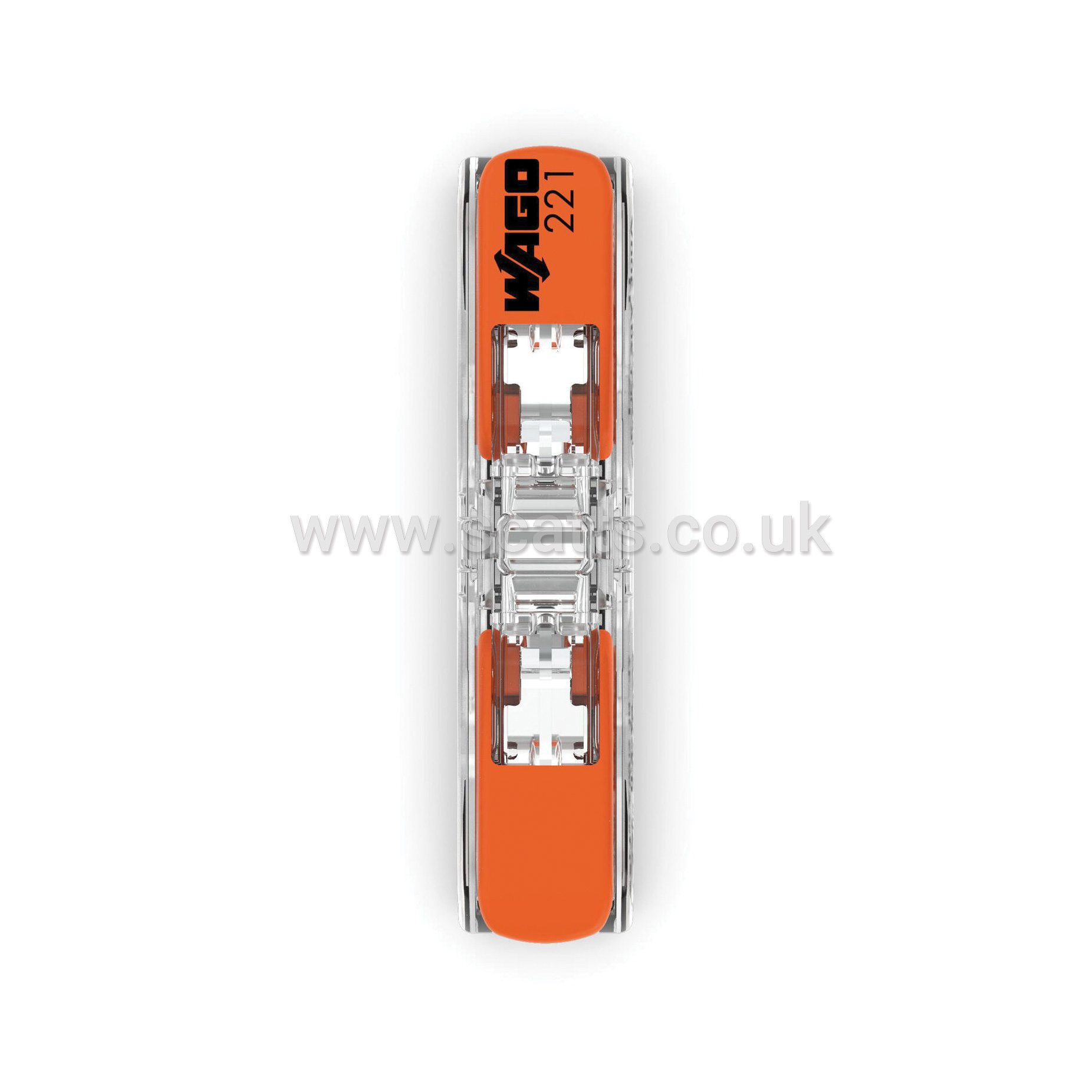

Inline splicing connector with lever for all conductor types - max. 4 mm² 2-conductor, transparent housing, Transparent cover, Surrounding air temperature: max 85°C (T85)
• Inline connection of solid, stranded and fine-stranded conductors from 0.2 to 4 mm² (24–16 AWG)
• Slim design saves space in tight areas
• Tool-free connection and disconnection thanks to convenient lever technology
• Use a mounting carrier for fixed and multi-pole wiring
Width: 8.1 mm / 0.319 inches
Height: 8.9 mm / 0.35 inches
Depth: 35.5 mm / 1.398 inches
Colour: transparent/orange
Material group: IIIa
Insulation material: Polycarbonate (PC)
Flammability class per UL94: V2
Brand |
WAGO |
|
£23.40
per 1 (ex. VAT)£28.08
per 1 (inc. VAT)
