My Part Number:
Part Number: 221-415/BOX25
Manufacturer Code: 221-415
Multiples of: 1 | Minimum Order: 1
COMPACT Splicing Connector for all conductor types - max. 4 mm² 5-conductor, with levers, transparent housing, Surrounding air temperature: max 85°C (T85), 4.00 mm², transparent
Your benefits:
• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-, 3- and 5-wire connectors
• Easily terminate conductors from 0.14 to 4 mm²
• Connect solid, stranded and fine-stranded conductors
• Save time for installers and device manufacturers
• Quickly install devices with higher power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards

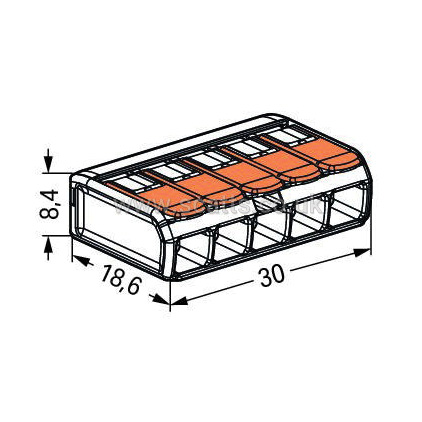

Width: 30 mm / 1.181 inches
Height: 8.4 mm / 0.331 inches
Depth: 18.8 mm / 0.732 inches
Colour: transparent
Insulation material: Polycarbonate (PC)
Flammability class per UL94: V2
Brand |
WAGO |
|
£16.25
per 1 (ex. VAT)£19.50
per 1 (inc. VAT)
COMPACT Splicing Connector for all conductor types - max. 4 mm² 5-conductor, with levers, transparent housing, Surrounding air temperature: max 85°C (T85), 4.00 mm², transparent
Your benefits:
• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-, 3- and 5-wire connectors
• Easily terminate conductors from 0.14 to 4 mm²
• Connect solid, stranded and fine-stranded conductors
• Save time for installers and device manufacturers
• Quickly install devices with higher power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
Width: 30 mm / 1.181 inches
Height: 8.4 mm / 0.331 inches
Depth: 18.8 mm / 0.732 inches
Colour: transparent
Insulation material: Polycarbonate (PC)
Flammability class per UL94: V2
Brand |
WAGO |
|
