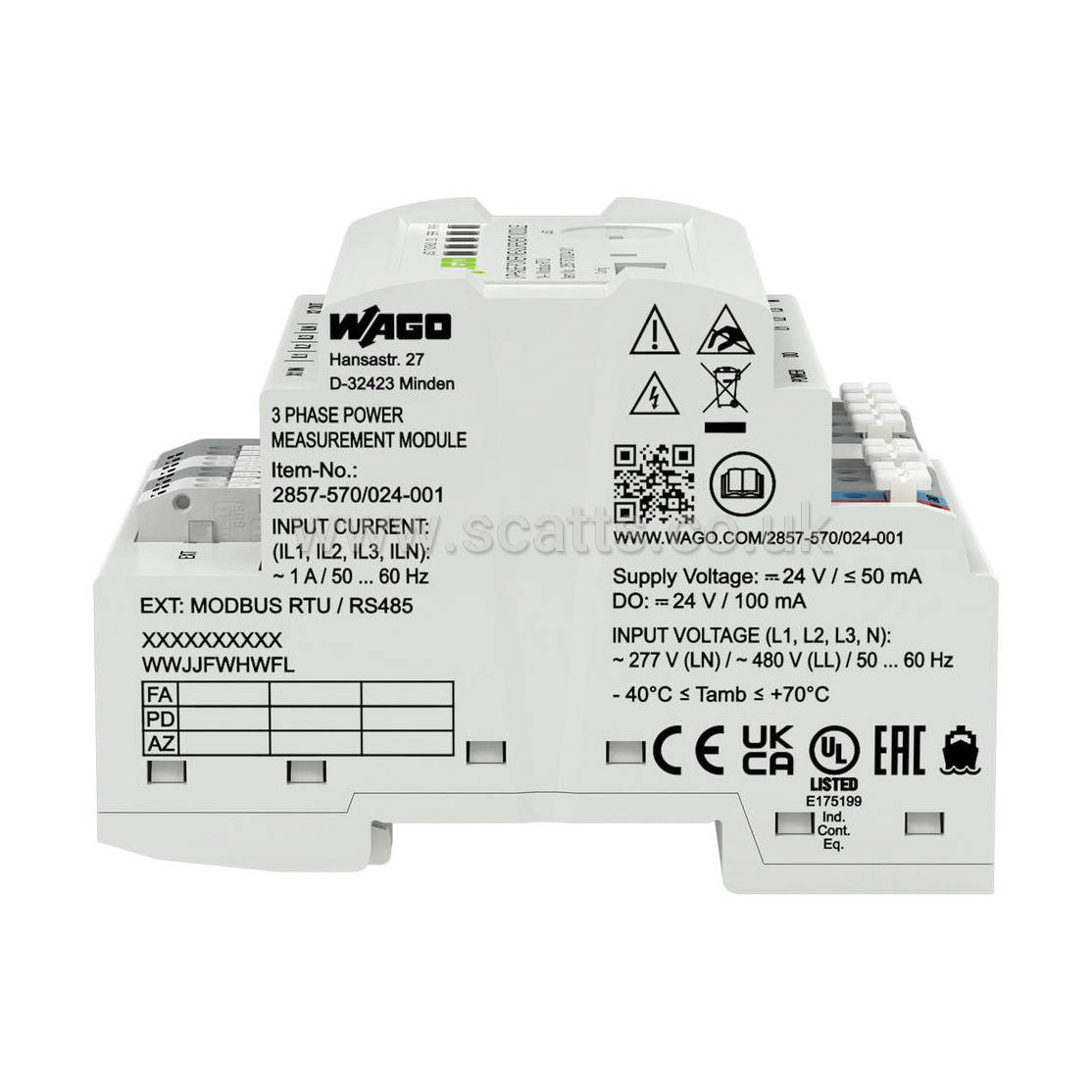

3PH POWER MODULE MODBUS RTU

3-Phase Power Measurement Module; 3x277/480 V/1 A; Modbus RTU; Digital output; Configuration via software; Supply voltage: 24 VDC


WAGO's 3-Phase Power Measurement Module in a DIN-rail-mount enclosure measures electrical data in three-phase supply networks – remotely from the control level.
Measured variables such as active/apparent/reactive power, energy consumption, power factor, phase angle and frequency can be accessed via Modbus® interface. In addition, the measured variables can be stored on a microSD card.

Features:

• Current measurement via 1A current transformer
• Mobile measurement and storage of measured values on microSD card
• Configuration and display of measured values during operation via configuration interface
• Compact device in DIN-rail-mount enclosure saves space used for building technology
• Communication of measured values via Modbus® interface
• Configurable digital signal output as pulse output
