My Part Number:
Part Number: 2857-570/024-005
Manufacturer Code: 2857-570/024-005
Multiples of: 1 | Minimum Order: 1

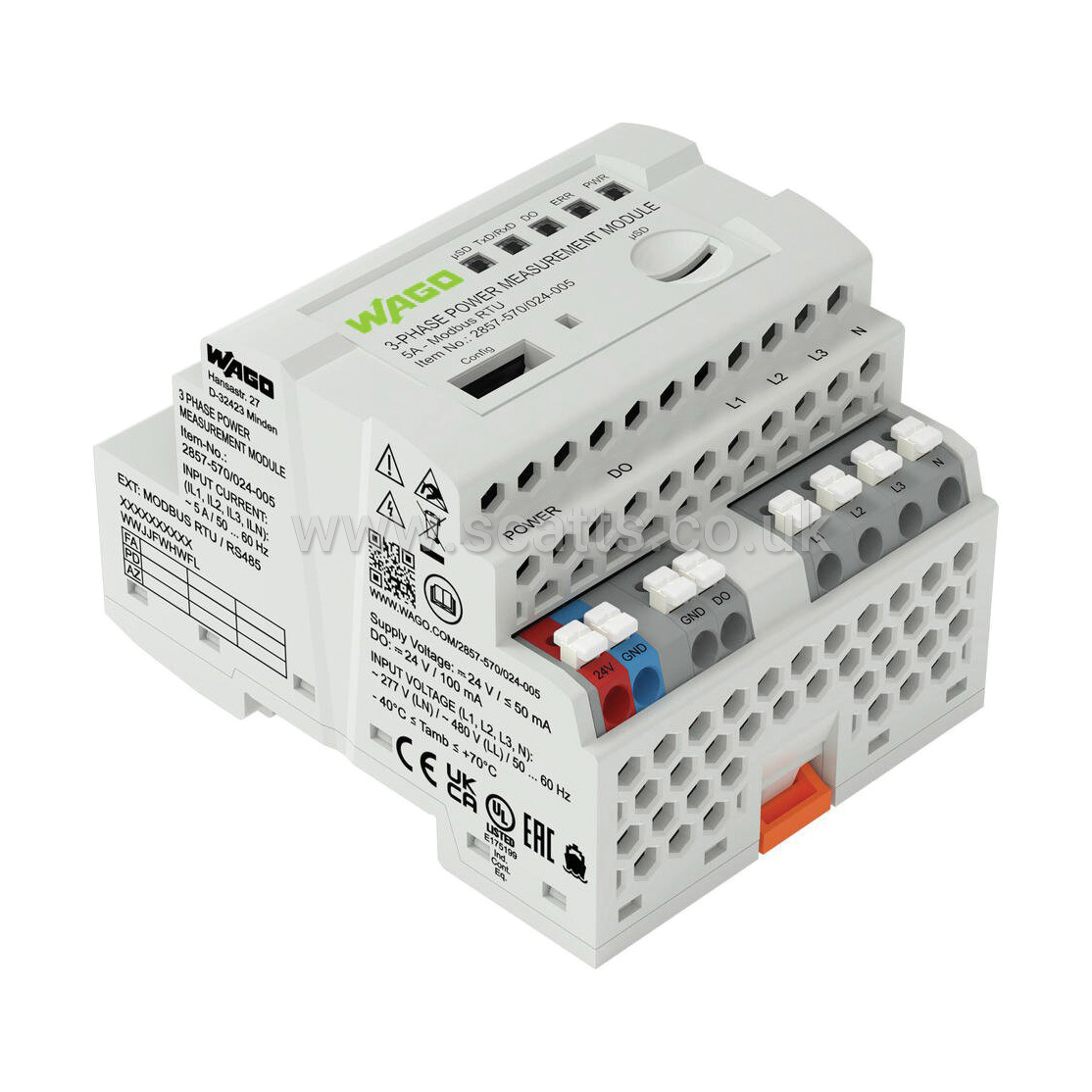

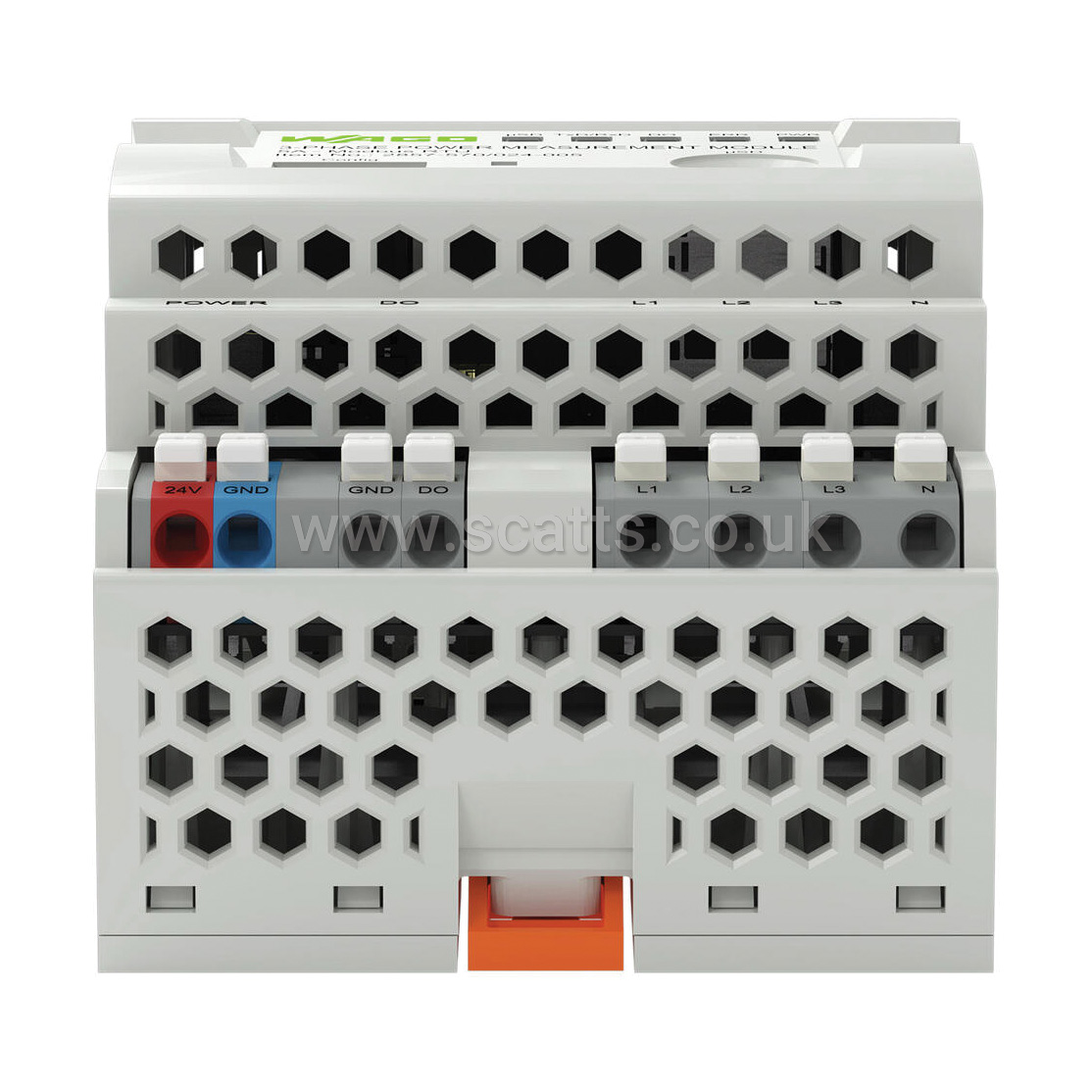

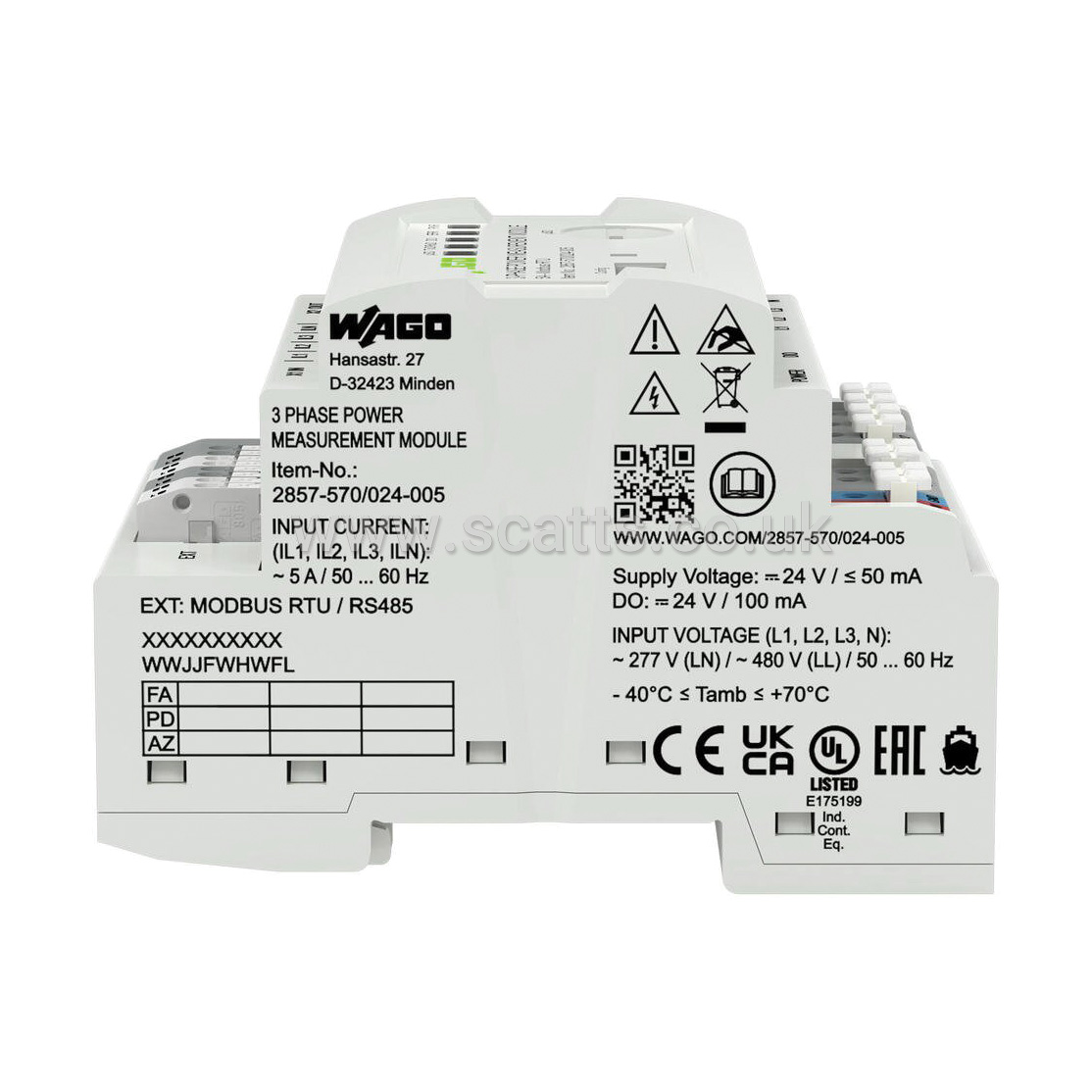

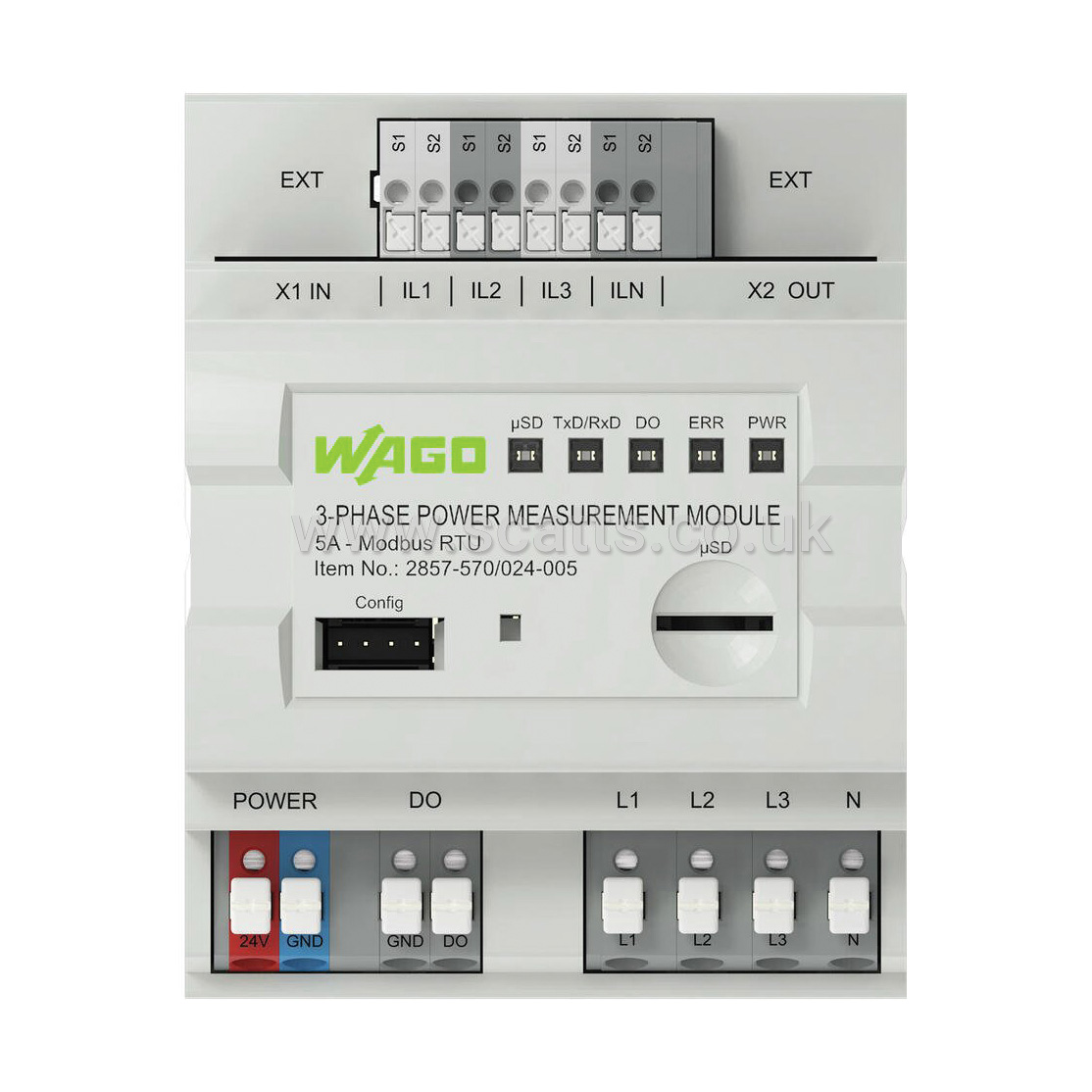

3-Phase Power Measurement Module; 3x277/480 V/5 A; Modbus RTU; Digital output; Configuration via software; Supply voltage: 24 VDC
Rated voltage: 600V
Overvoltage category: III
Pollution degree: 2
Safe isolation: Input/supply and communication per EN 61010-1
Requirement (N input): Neutral conductors that are part of the mains circuit are considered dangerous voltage.
ILx input requirement: Coils/converters with basic insulation
Protection type: IP20
Test voltage (input/output/supply): AC 3.51 kV; 50 Hz; 1 min
Width: 72 mm / 2.835 inches
Height: 90 mm / 3.54 inches
Depth from upper-edge of DIN-rail: 55 mm / 2.165 inches
Mounting type: DIN-35 rail
Housing design: DIN-rail-mount enclosure
Brand |
WAGO |
|
£301.47
per 1 (ex. VAT)£361.76
per 1 (inc. VAT)
3-Phase Power Measurement Module; 3x277/480 V/5 A; Modbus RTU; Digital output; Configuration via software; Supply voltage: 24 VDC
Rated voltage: 600V
Overvoltage category: III
Pollution degree: 2
Safe isolation: Input/supply and communication per EN 61010-1
Requirement (N input): Neutral conductors that are part of the mains circuit are considered dangerous voltage.
ILx input requirement: Coils/converters with basic insulation
Protection type: IP20
Test voltage (input/output/supply): AC 3.51 kV; 50 Hz; 1 min
Width: 72 mm / 2.835 inches
Height: 90 mm / 3.54 inches
Depth from upper-edge of DIN-rail: 55 mm / 2.165 inches
Mounting type: DIN-35 rail
Housing design: DIN-rail-mount enclosure
Brand |
WAGO |
|
