Part Number: 750-1406
Manufacturer Code: 750-1406
Multiples of: 1 | Minimum Order: 1
16-channel digital input - 24 VDC, 0.2 ms
Number of digital inputs: 16
Total number of channels (module): 16
Signal type: Digital
Signal type (voltage): 24 VDC
Sensor connection: 16 x (1-wire)
Input characteristic: high-side switching
Input filter (digital): 0.2ms
Input current per channel for signal (0) typ.: 0.6mA
Input current per channel for signal (1) typ.: 2.3mA
Input current per channel for signal (1) min.: 2.1mA
Input current per channel for signal (1) max.: 2.4mA
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
Input data width (internal) max.: 16Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 25mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
Isolation: 500 V system/field

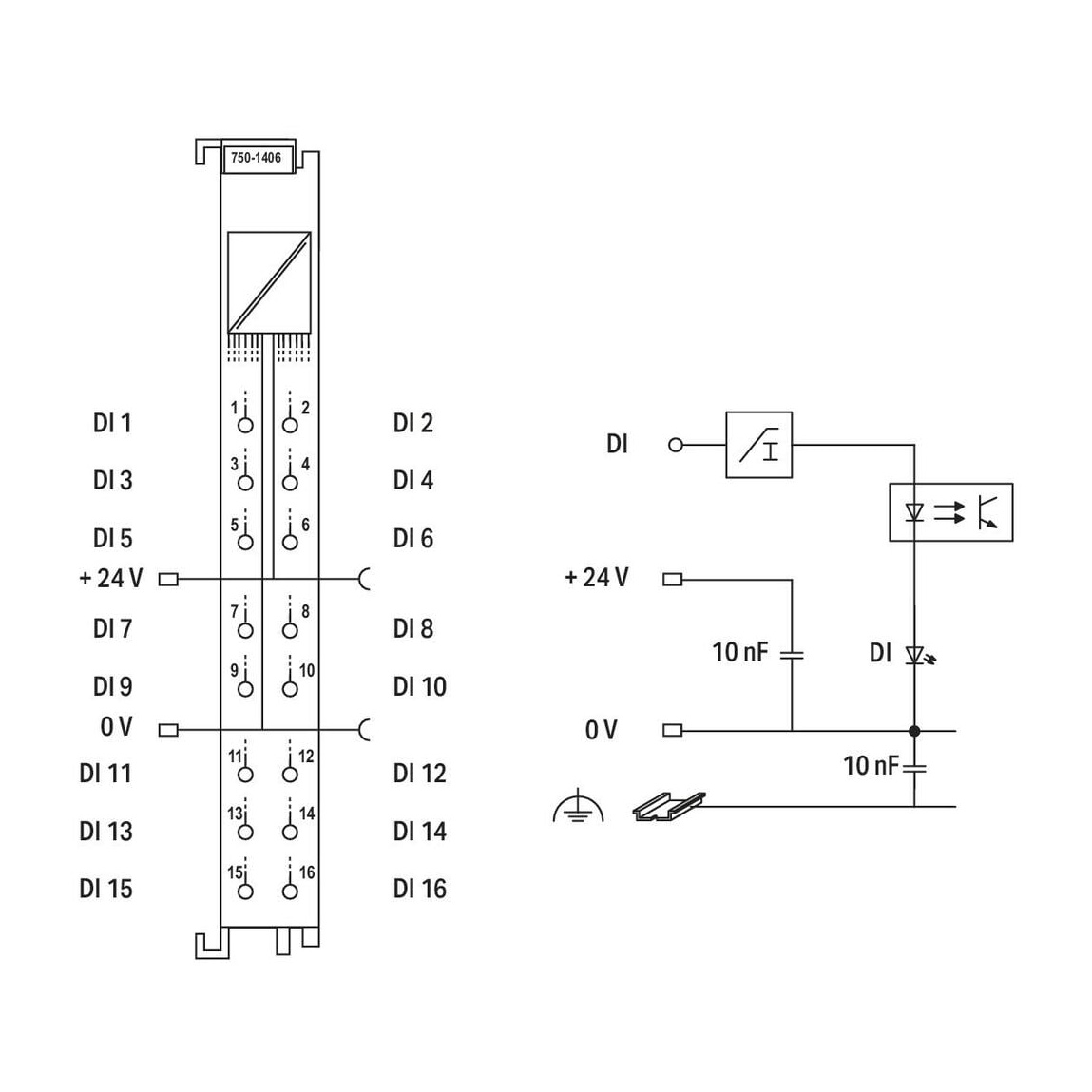

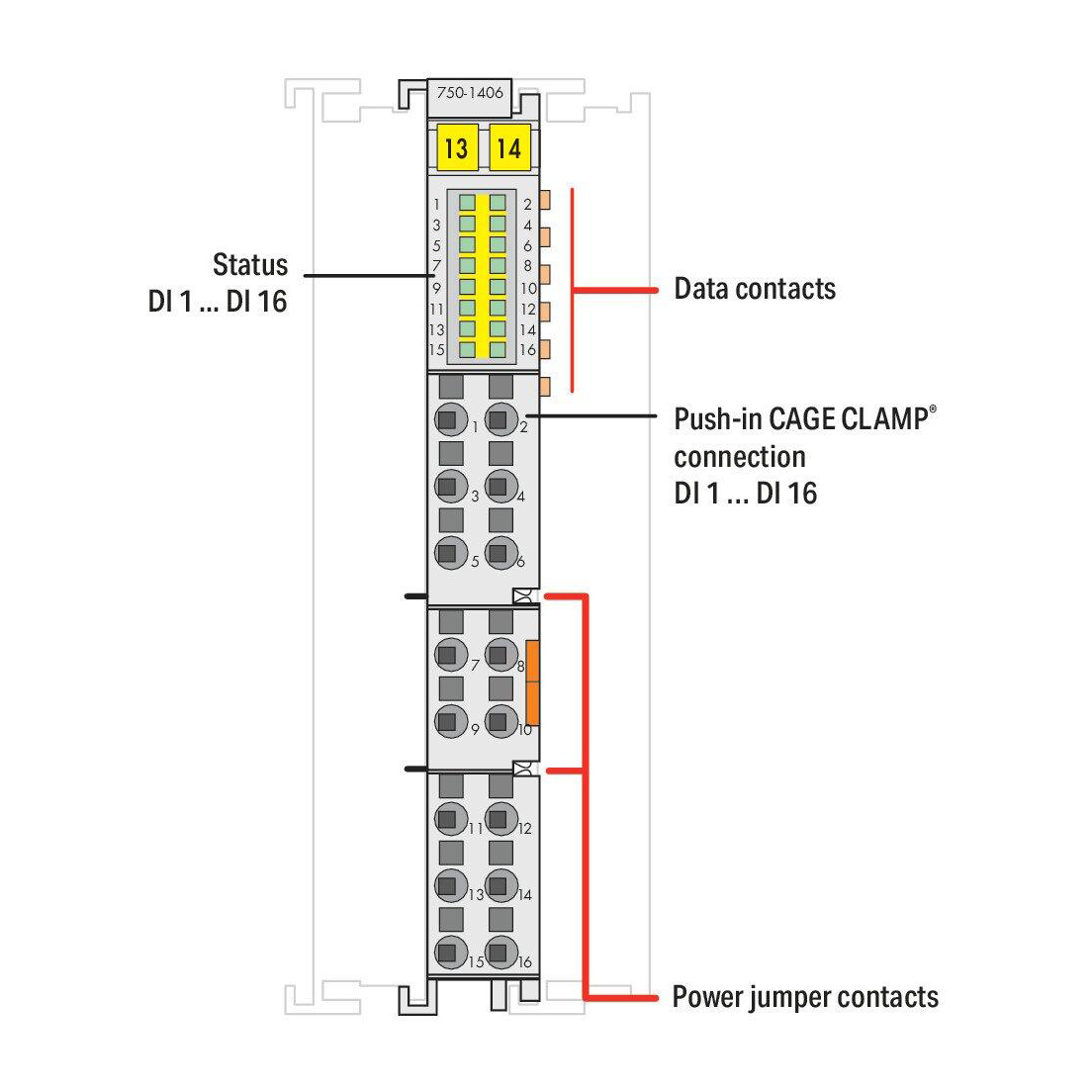

Indicators: LED (1-16) green: Status DI 1 … DI 16
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP® (inputs)
Connectable conductor materials: Copper
Connection type 1: Input
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69 mm / 2.717 inches
Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
Mounting type: DIN-35 rail
Pluggable connector: fixed
Housing material: Polycarbonate; polyamide 6.6
Fire load: 0.837MJ
Weight: 47.5g
Conformity marking: CE
Ambient temperature (operation): 0 … +55 °C
Ambient temperature (storage): -40 … +85 °C
Protection type: IP20
Pollution degree: 2 per IEC 61131-2
Operating altitude: 0 … 2000 m / 0 … 6562 ft
Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
Relative humidity (without condensation): 95%
Vibration resistance: 4g per IEC 60068-2-6
Shock resistance: 15g per IEC 60068-2-27
EMC immunity to interference: per EN 61000-6-2, marine applications
EMC emission of interference: per EN 61000-6-3, marine applications
Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S contaminant concentration at a relative humidity 75 %: 10ppm
Permissible SO2 contaminant concentration at a relative humidity 75 %: 25ppm
