Part Number: 750-1416
Manufacturer Code: 750-1416
Multiples of: 1 | Minimum Order: 1
8-channel digital input; 24 VDC; 0.2 ms; 2-conductor connection
This digital input module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch). It receives binary control signals from digital field devices (e.g., sensors, encoders, switches or proximity sensors). The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. Each input channel has a noise-rejection RC filter with 0.2 ms time constant. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
Number of digital inputs: 8
Total number of channels (module): 8
Signal type: Digital, Voltage
Signal type: 24 VDC
Supply voltage (sensor): 24 VDC

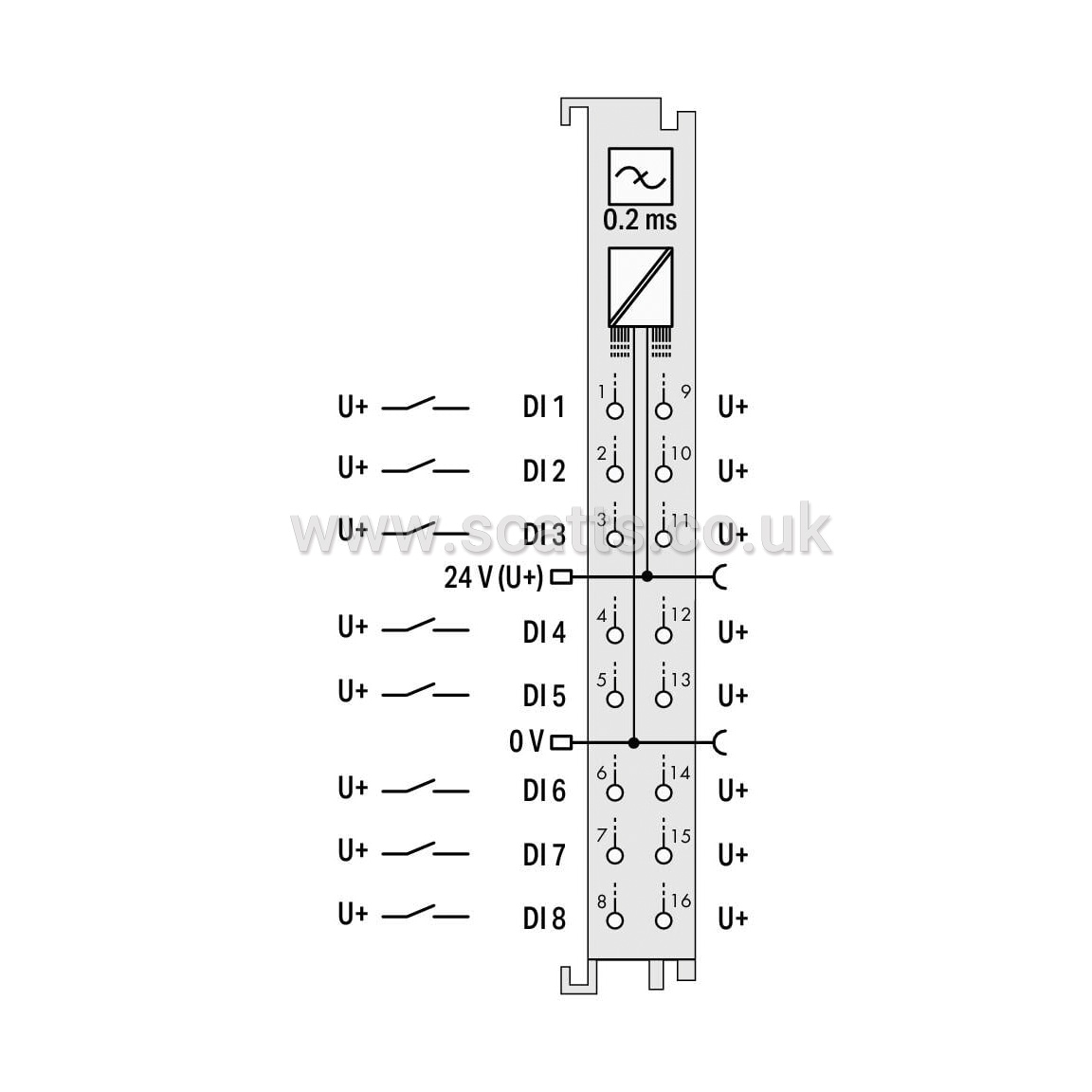

Sensor connection: 8 x (2-wire)
Input characteristic: high-side switching
Input characteristic: Type 3
Input filter (digital): 0.2ms, 0.2ms
Input current per channel for signal (0) typ.: 1.6mA
Input current per channel for signal (1) typ.: 4.5mA
Input current per channel for signal (1) min.: 4.3mA
Input current per channel for signal (1) max.: 4.6mA
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 11 … 30 VDC
Input data width (internal) max.: 8Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 6mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 2mA
Isolation: 500 V system/field

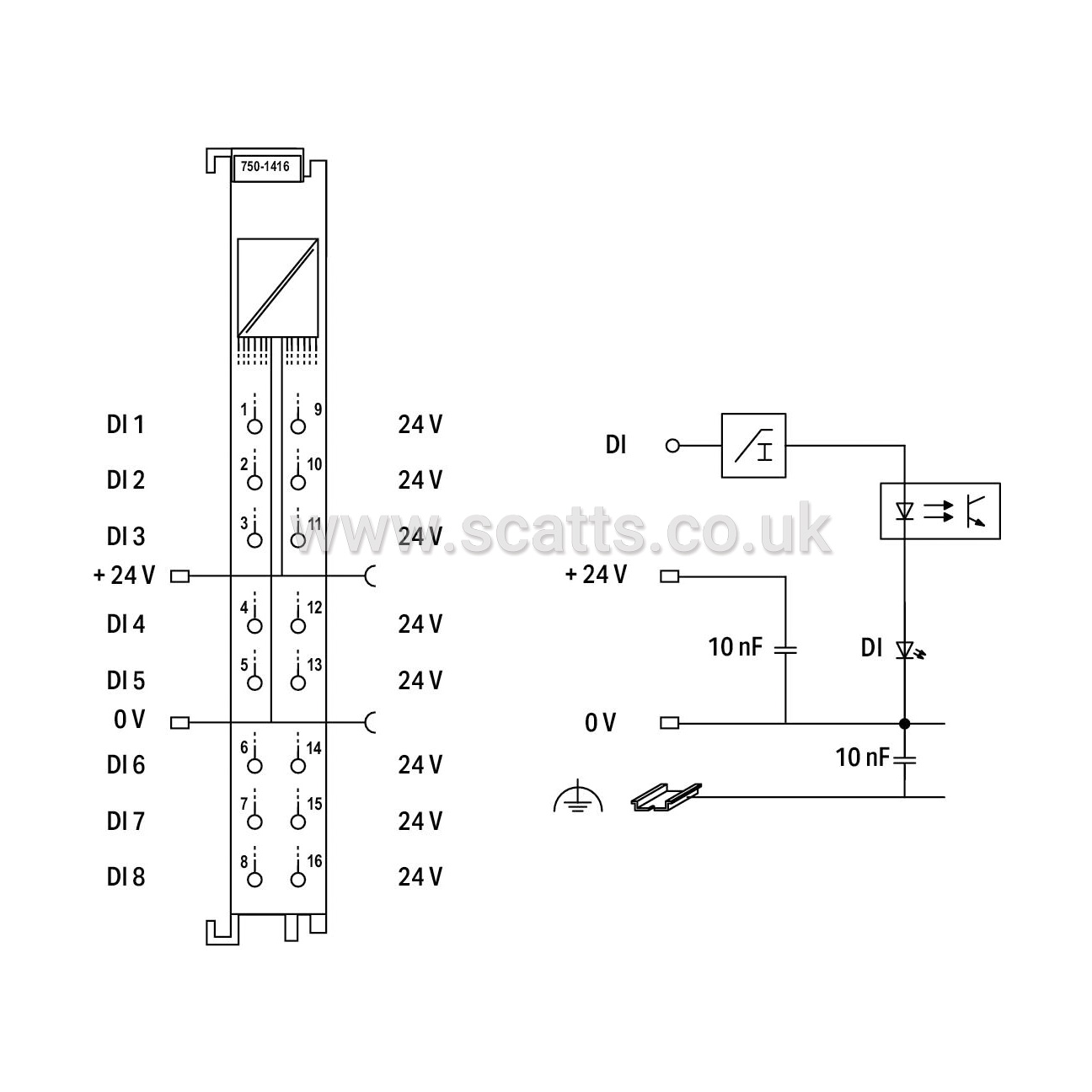

Indicators: LED (1-8) green: Status DI 1 … DI 8
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69 mm / 2.717 inches
Mounting type: DIN-35 rail
Pluggable connector: Fixed
Housing material: Polycarbonate; polyamide 6.6
