My Part Number:
Part Number: 750-1420
Manufacturer Code: 750-1420
Multiples of: 1 | Minimum Order: 1
4-channel digital input - 24 VDC, 3 ms, 3-conductor connection

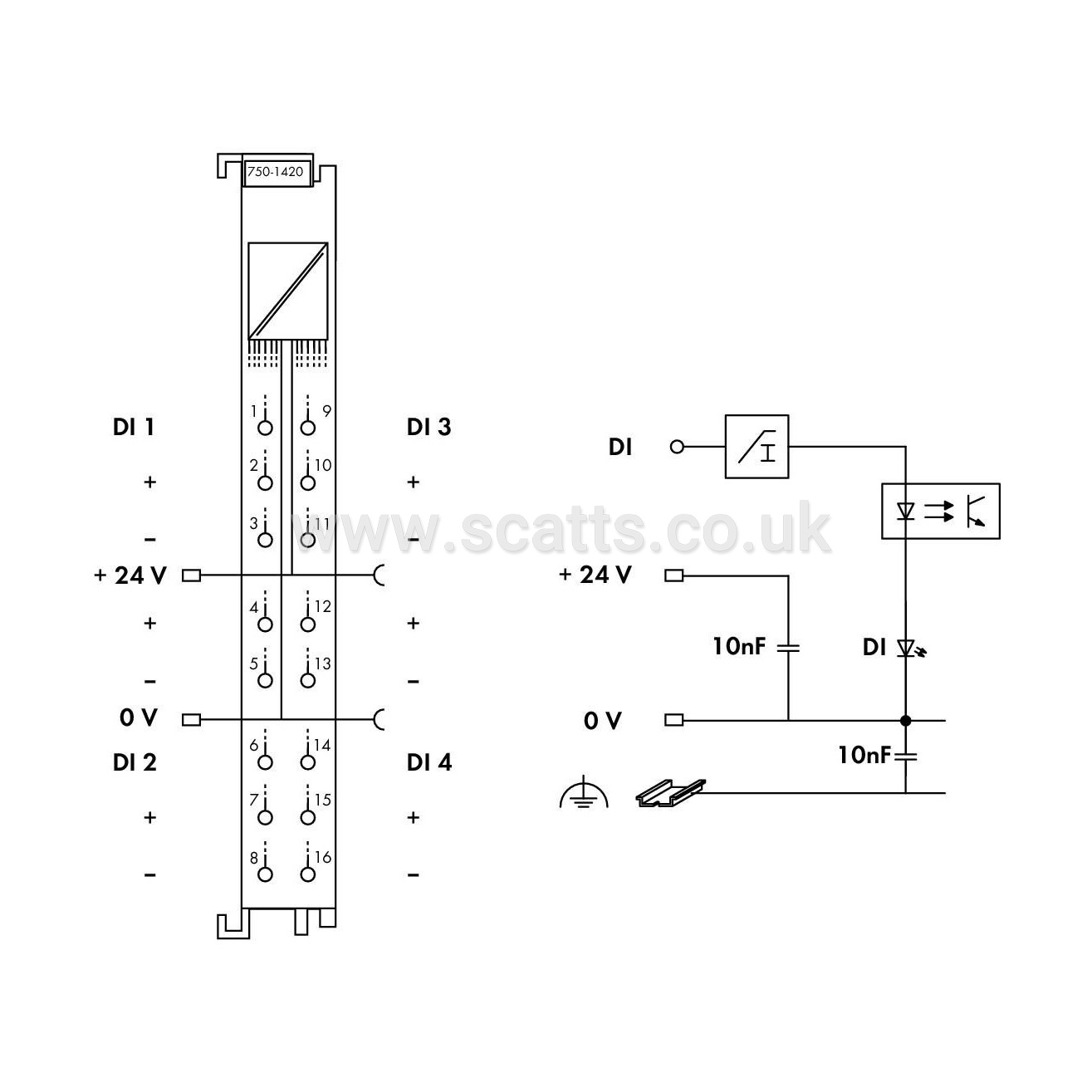

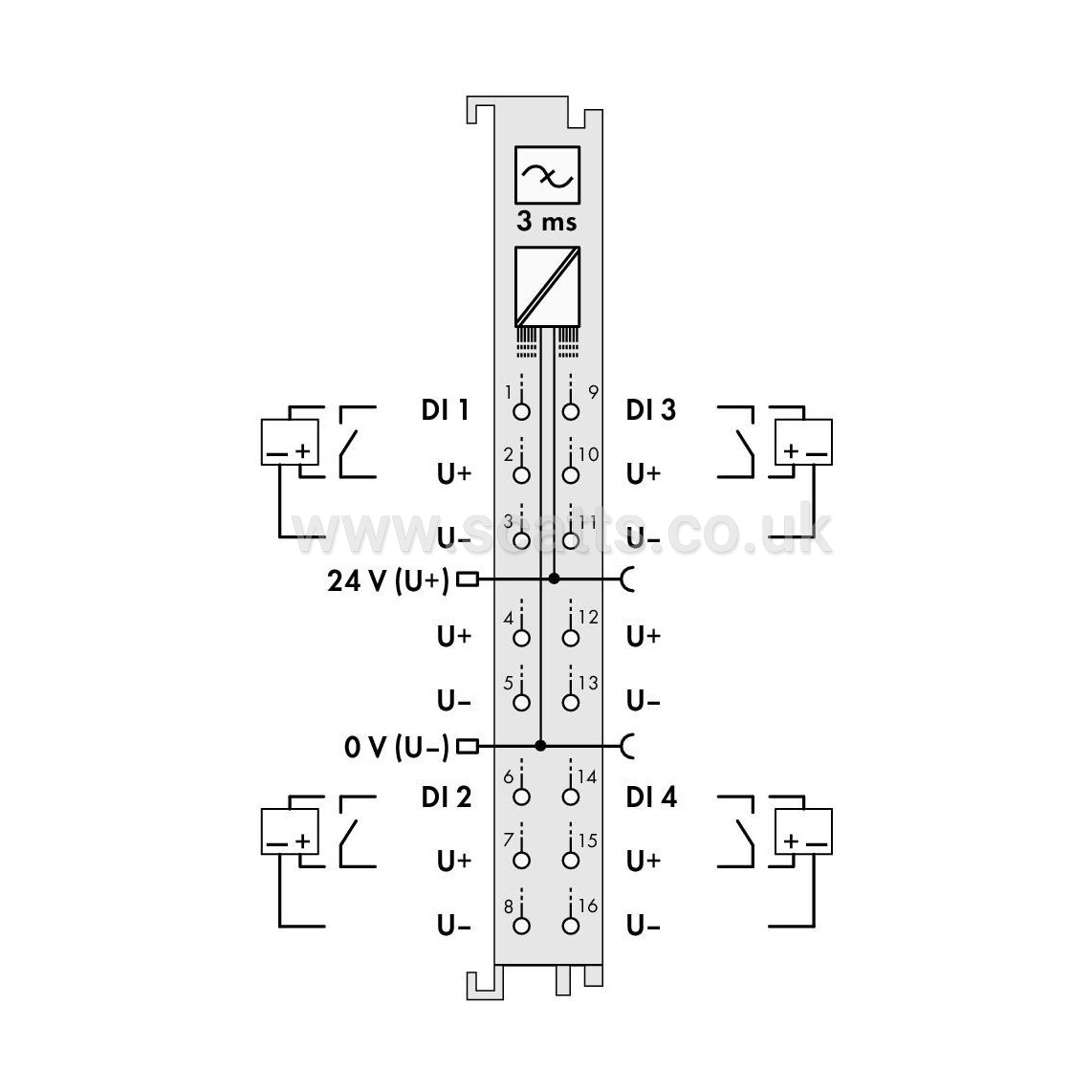

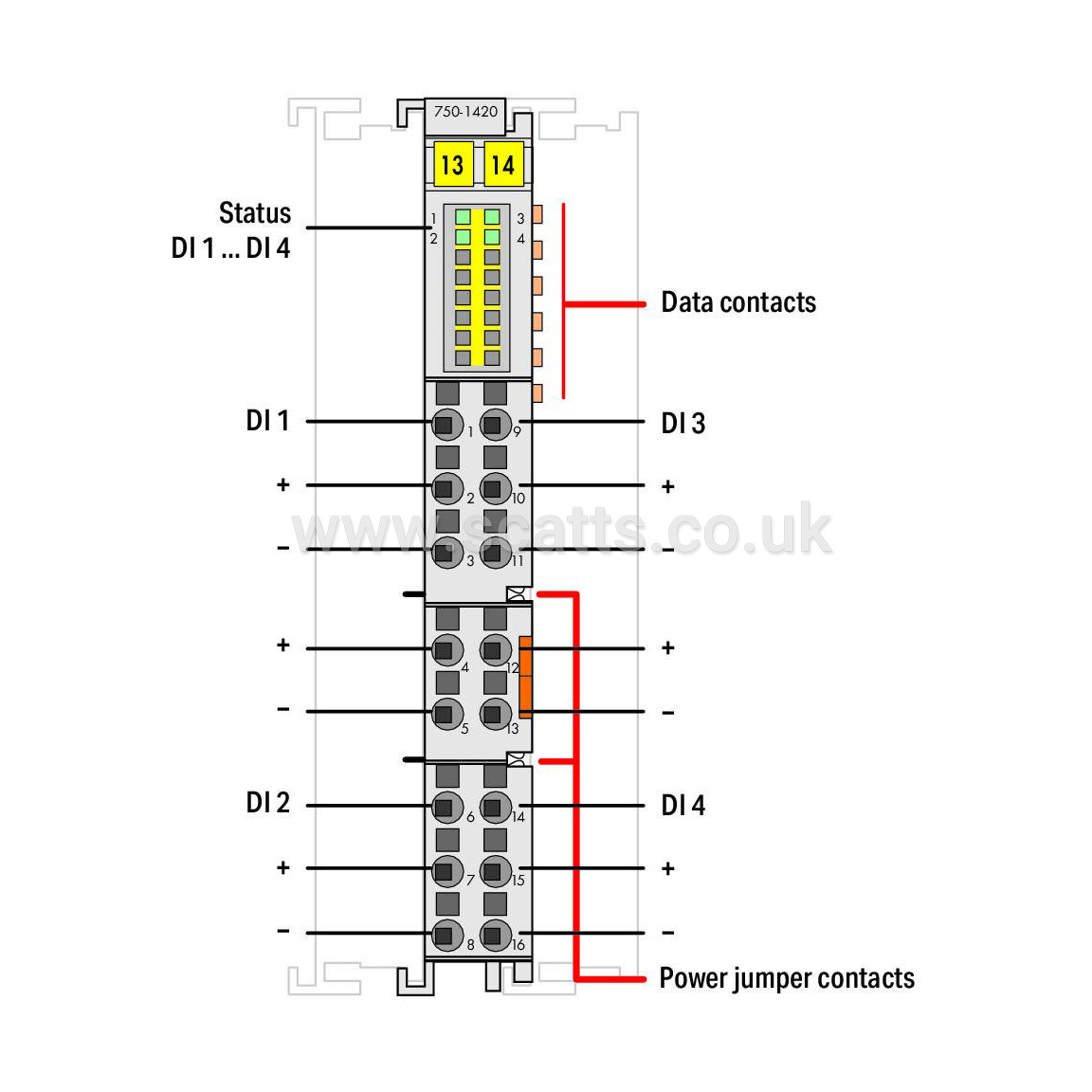

This digital input module is a 3-wire device featuring four channels in a width of just 12 mm (0.47 inch). It receives binary control signals from digital field devices (e.g., sensors, encoders, switches or proximity sensors). The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. Each input channel has a noise-rejection RC filter with 3.0 ms time constant. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69 mm / 2.717 inches
Mounting type: DIN-35 rail
Pluggable connector: Fixed
Housing material: Polycarbonate; polyamide 6.6
Brand |
WAGO |
|
£56.74
per 1 (ex. VAT)£68.09
per 1 (inc. VAT)
