Part Number: 750-1500
Manufacturer Code: 750-1500
Multiples of: 1 | Minimum Order: 1

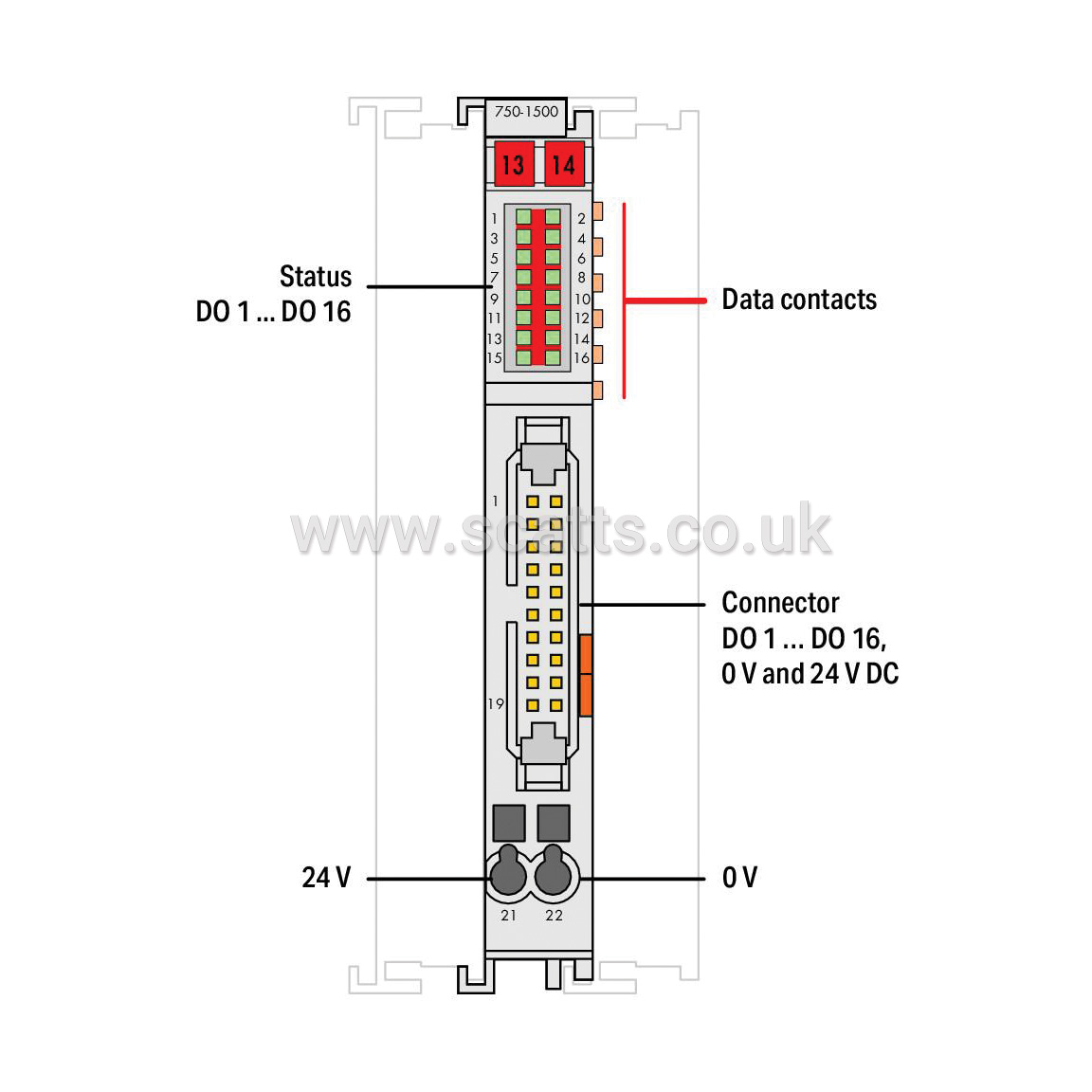

16-channel digital output; 24 VDC; 0.5 A; Ribbon cable
This digital output module features 16 channels in a width of just 12 mm (0.47 inch). It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads). The module connects to electronic modules via a 20-pole ribbon cable. The 24 V power is fed to the electronic modules via two CAGE CLAMP® connectors. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated.
Number of digital outputs: 16
Total number of channels (module): 16
Signal type: Digital
Signal type: 24 VDC
Actuator connection: 16 x (1-wire)
Output characteristic: high-side switching
Output current per channel: 0.5A
Output current: short-circuit-protected
Switching frequency (max.): 1 kHz
Load type: Resistive, inductive, lamp load
Output data width (internal) max.: 16Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 40mA
Supply voltage (field): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Current consumption, field supply (module with no external load): 29mA
Isolation: 500 V system/field
Indicators: LED (1-16) green: Status DO 1 … DO 16

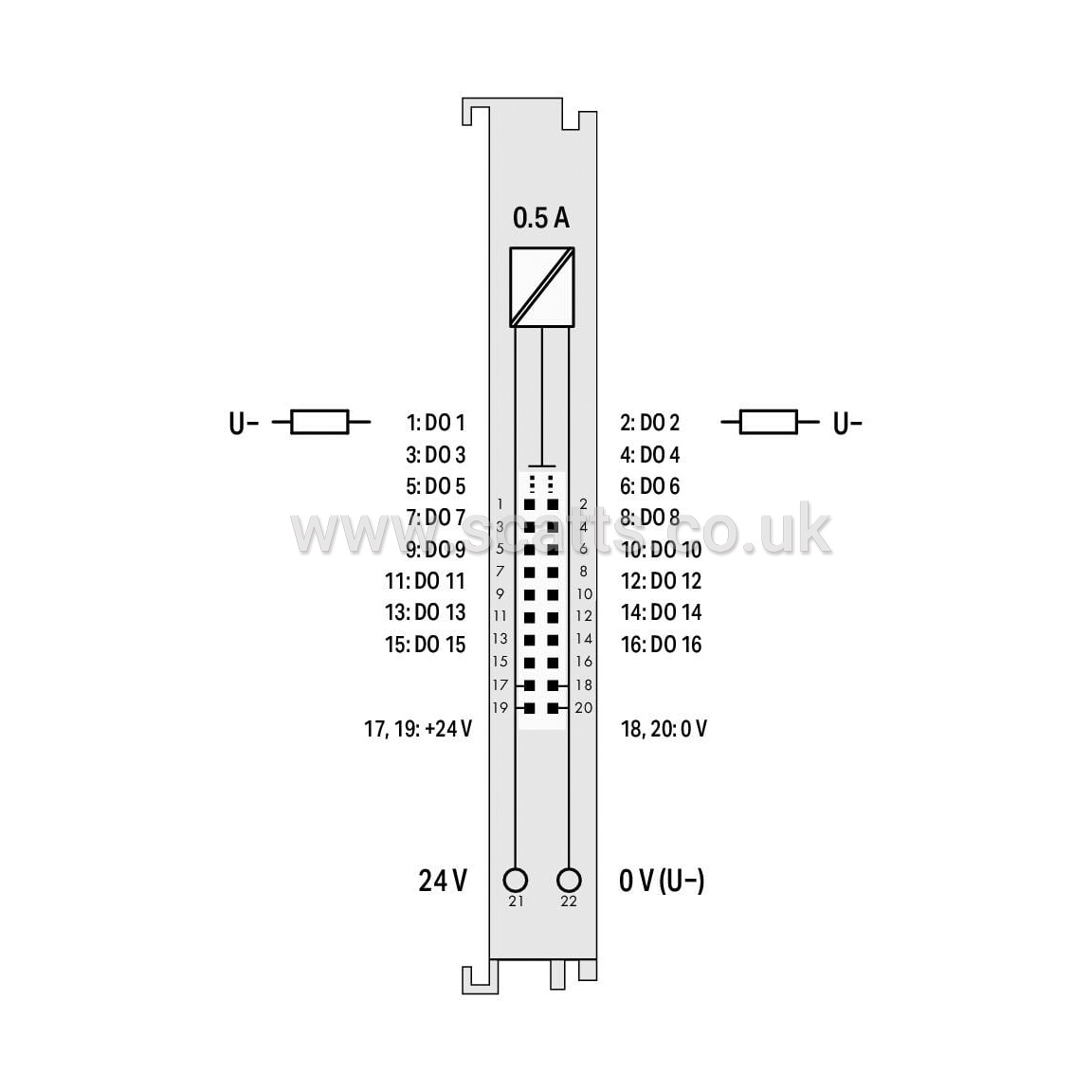

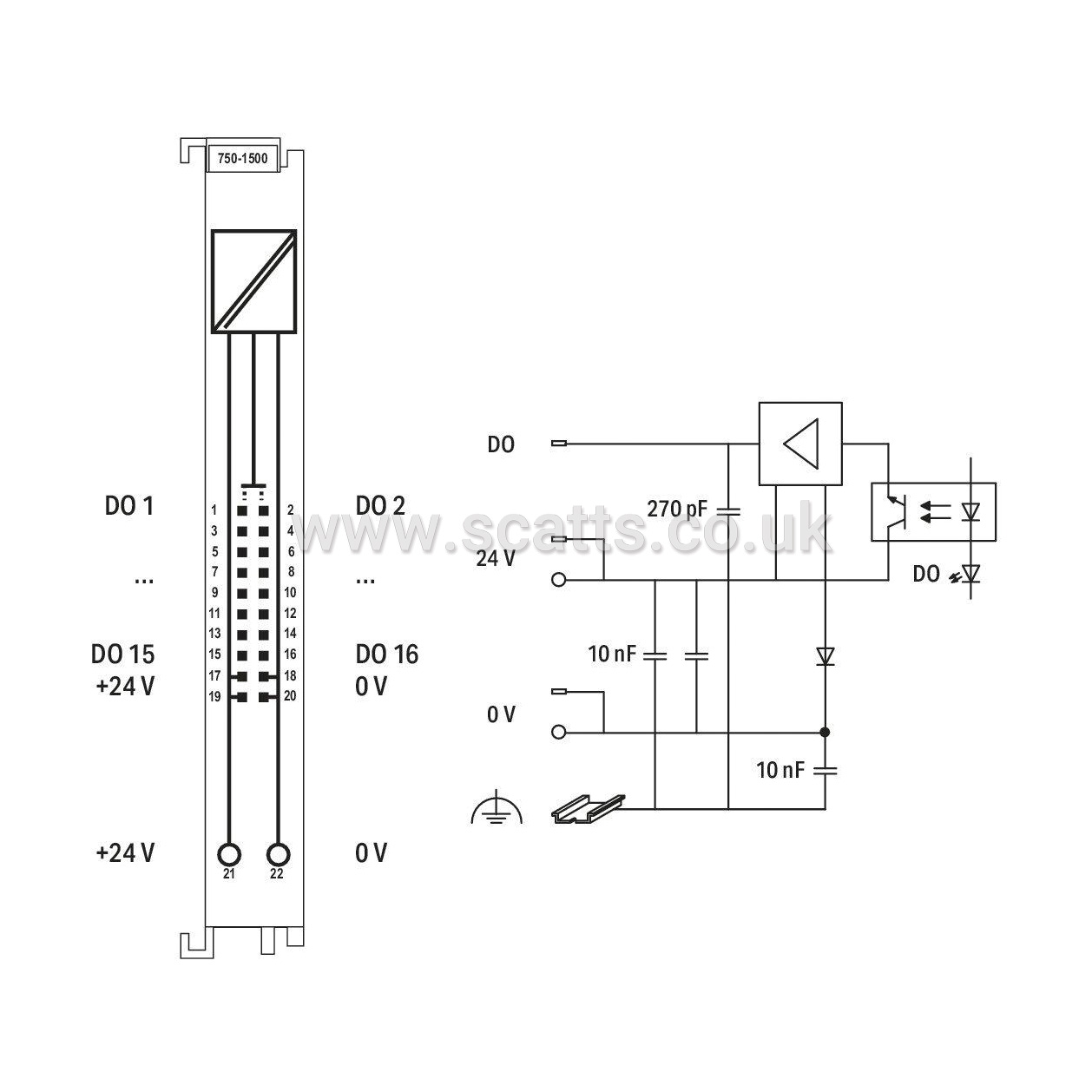

Connection technology: inputs/outputs: 1 x DIN 41651 connector; male connector (20-pole)
Connection technology: field supply: 2 x CAGE CLAMP®
Connection type 1: Inputs/Outputs
Connection type 2: Field supply
Solid conductor 2: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length 2: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 74.1 mm / 2.917 inches
Mounting type: DIN-35 rail
Pluggable connector: Fixed
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Fire load: 1.031MJ
