Part Number: 750-1505
Manufacturer Code: 750-1505
Multiples of: 1 | Minimum Order: 1

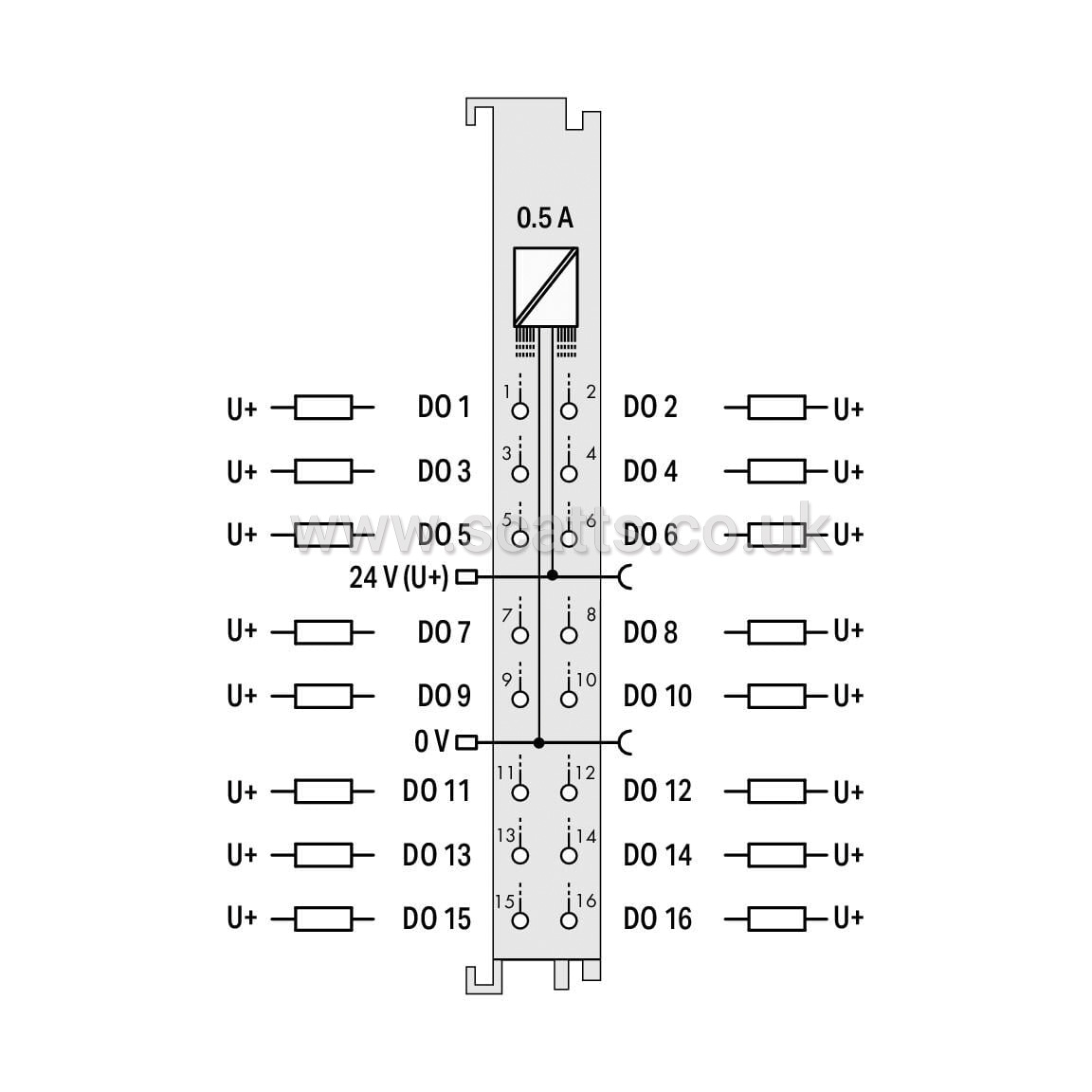

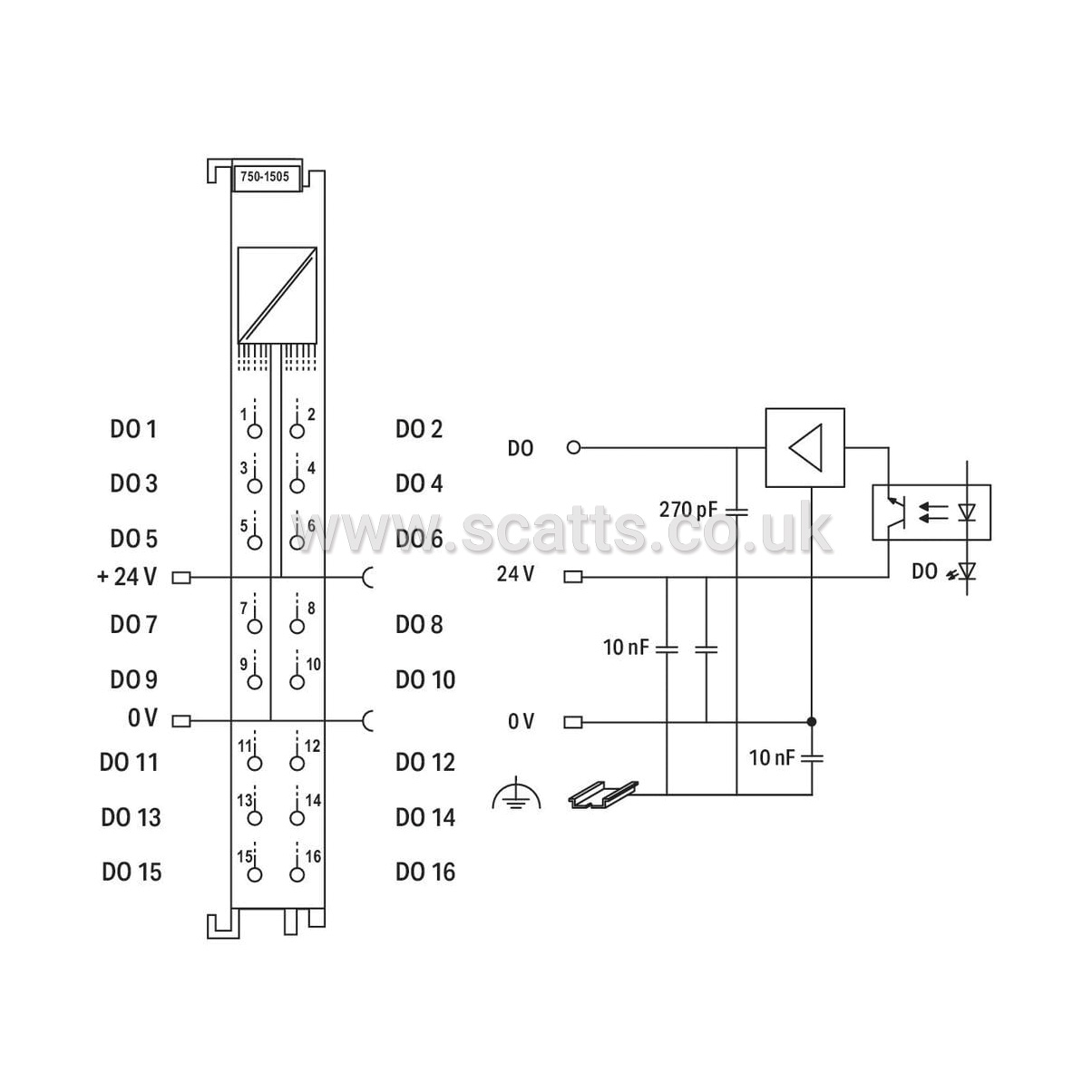

16-channel digital output - 24 VDC, 0.5 A, Low-side switching

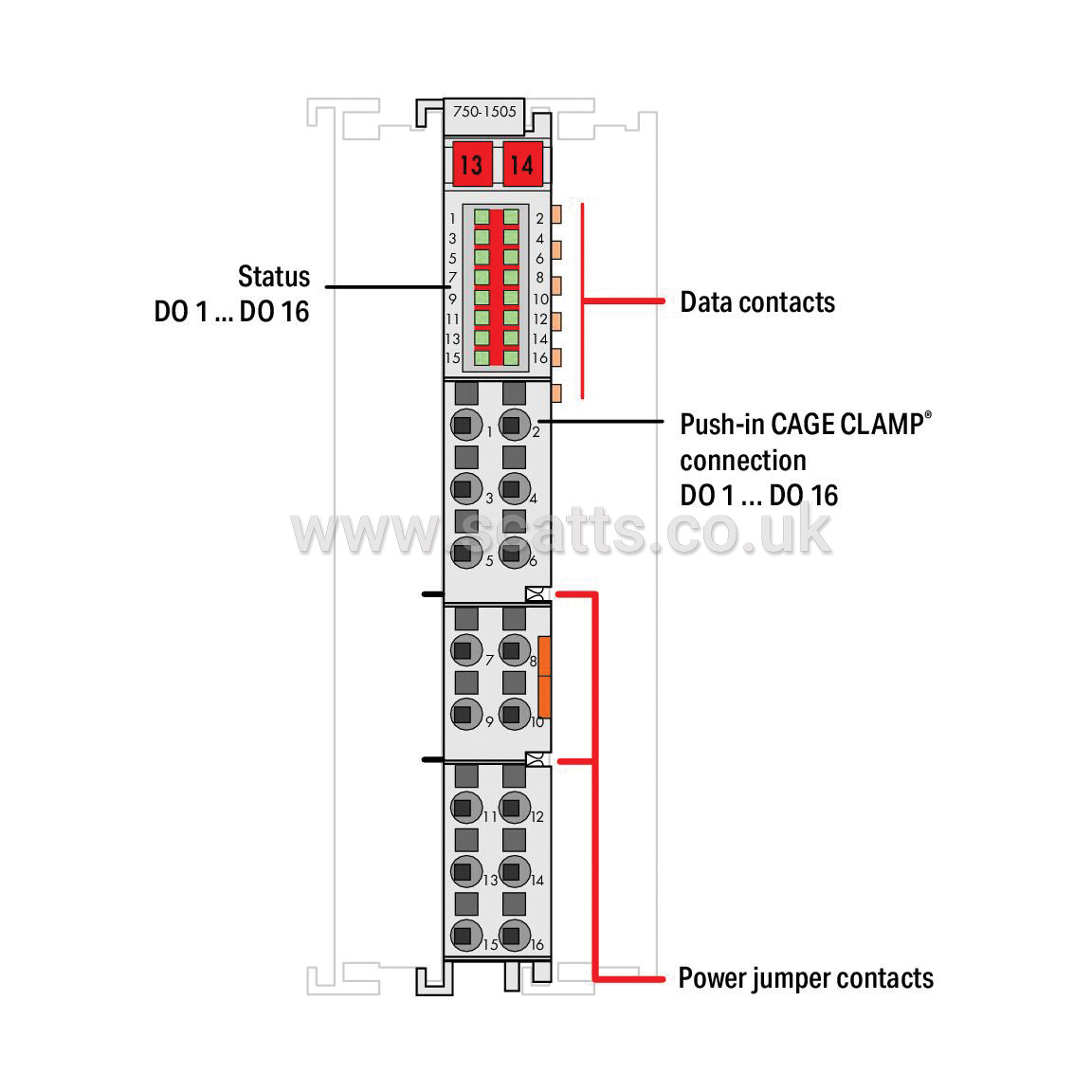

This digital output module features 16 channels in a width of just 12 mm (0.47 inch). It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads). The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69 mm / 2.717 inches
Mounting type: DIN-35 rail
Pluggable connector: Fixed
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Brand |
WAGO |
|
£132.98
per 1 (ex. VAT)£159.58
per 1 (inc. VAT)
