My Part Number:
Part Number: 750-1506
Manufacturer Code: 750-1506
Multiples of: 1 | Minimum Order: 1

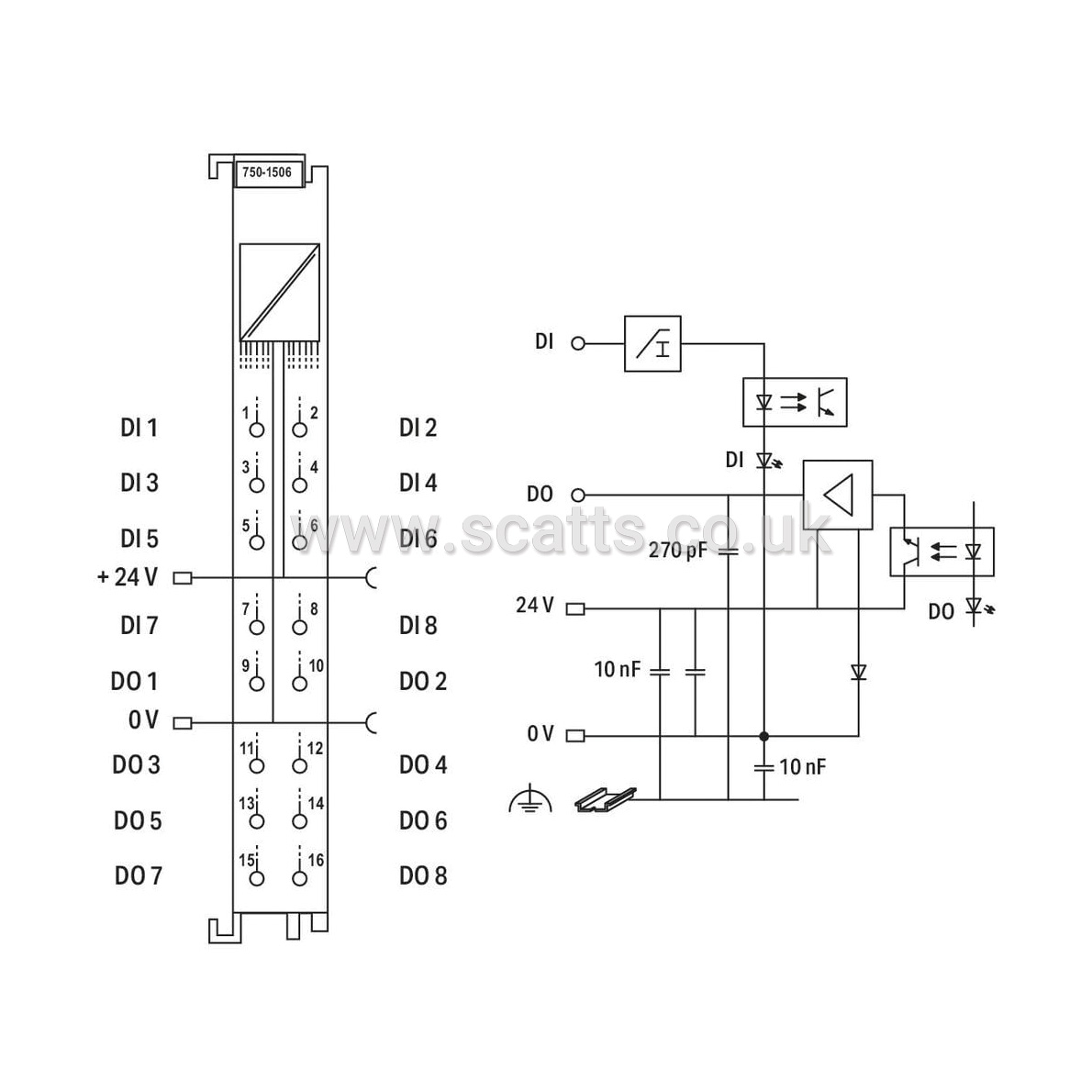

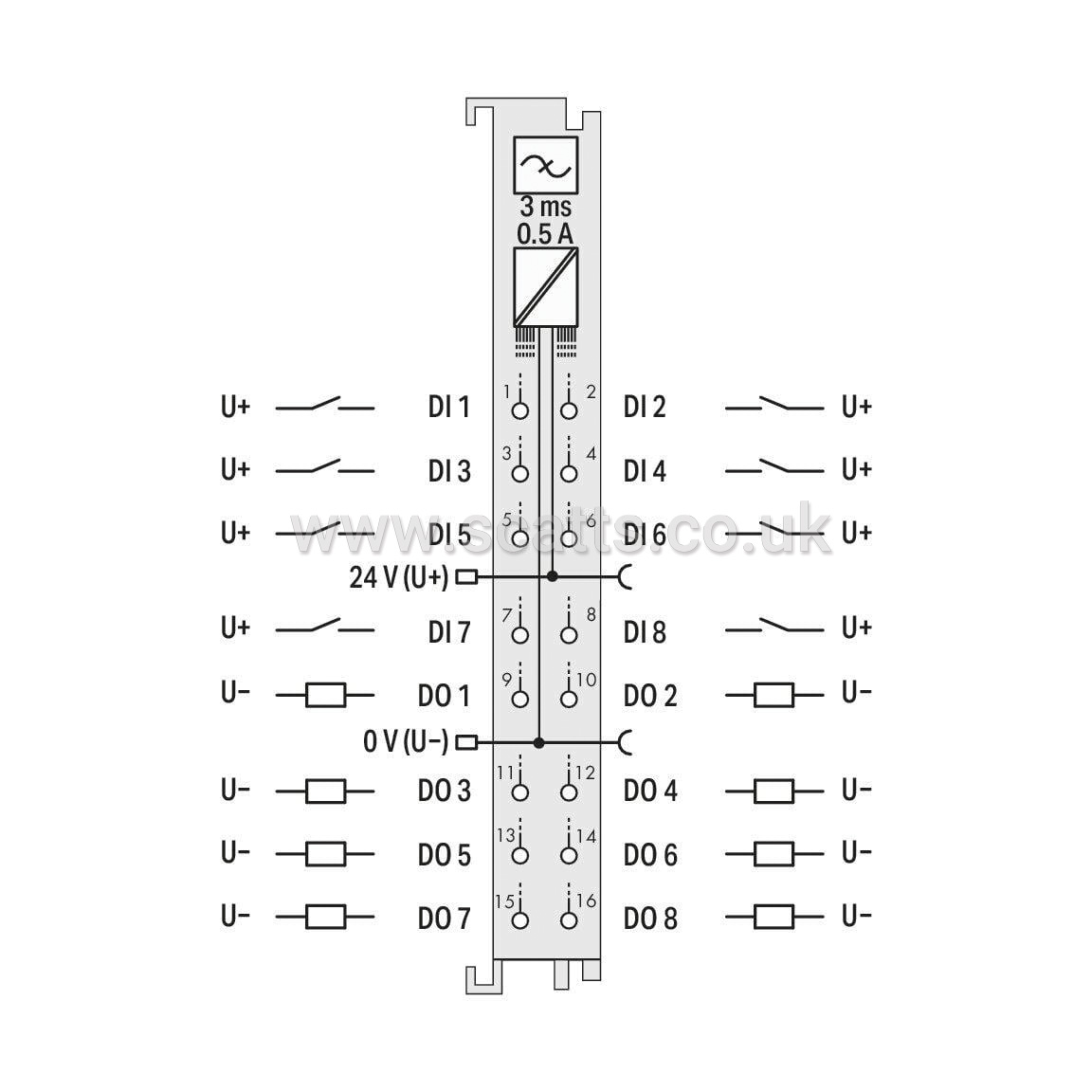

8-channel digital input/output - 24 VDC, 0.5 A

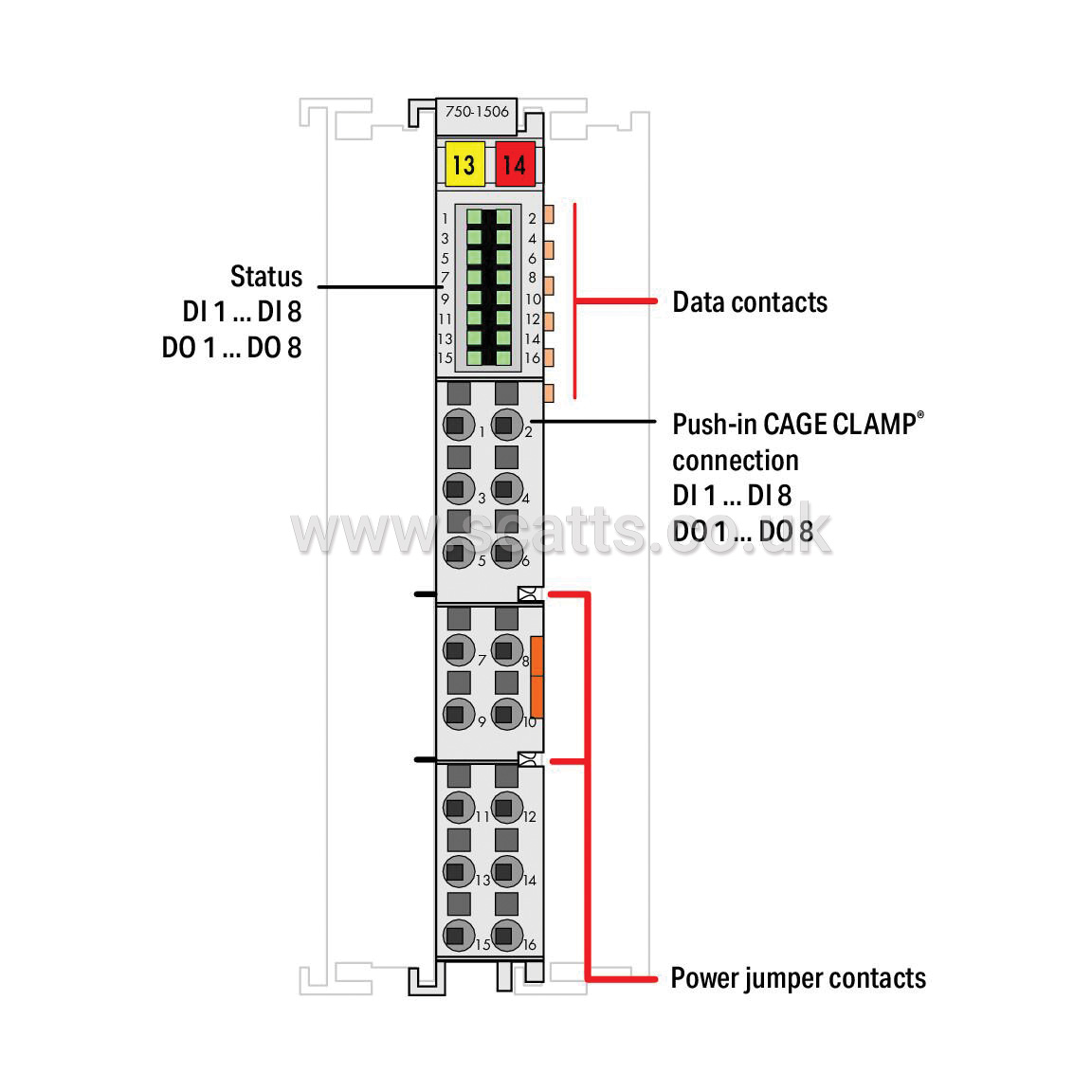

This digital input/output module features eight inputs and eight outputs in a width of just 12 mm (0.47 inch). It receives binary control signals from digital field devices and transmits them to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads). The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69 mm / 2.717 inches
Mounting type: DIN-35 rail
Pluggable connector: Fixed
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Brand |
WAGO |
|
£127.70
per 1 (ex. VAT)£153.24
per 1 (inc. VAT)
