Part Number: 750-1605
Manufacturer Code: 750-1605
Multiples of: 1 | Minimum Order: 1

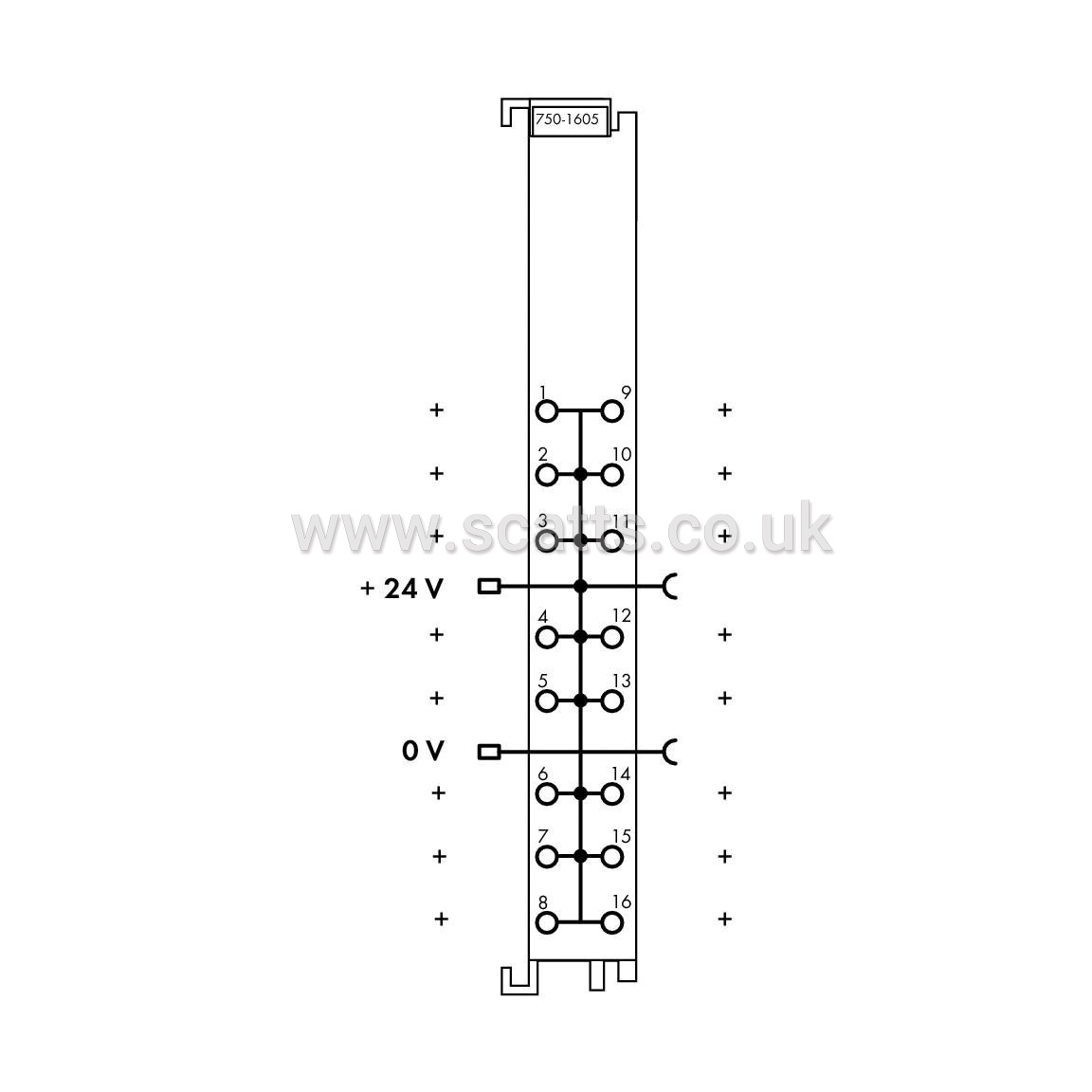

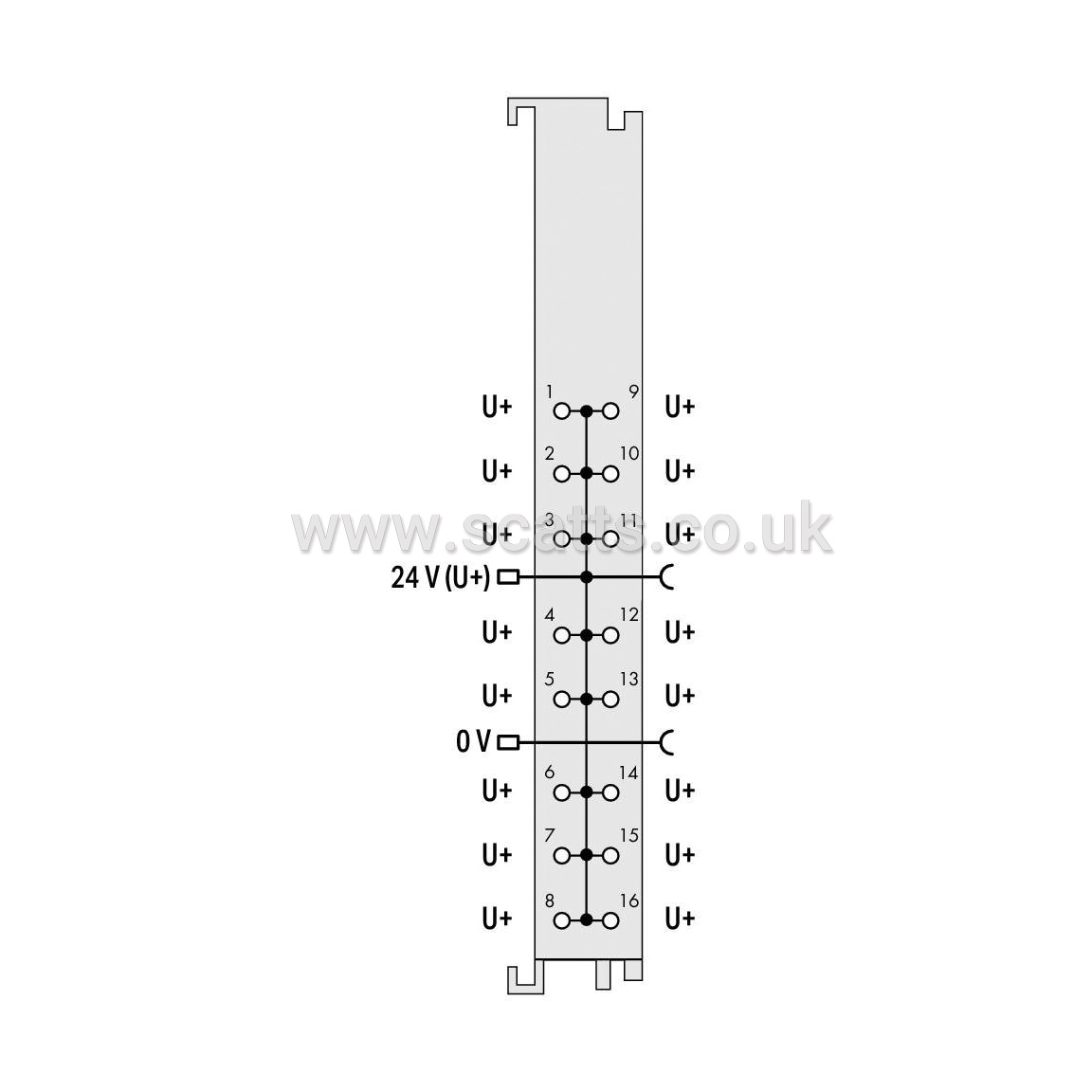

Potential Distribution - 16-way, 24 V
This potential multiplication module provides 24 V to the inputs in combination with the 750-1405 and 750-1406 16-Channel Input Module (also suitable for 8-channel input modules with with a single wire connection). This eliminates the need for additional DIN-rail-mount terminal blocks.

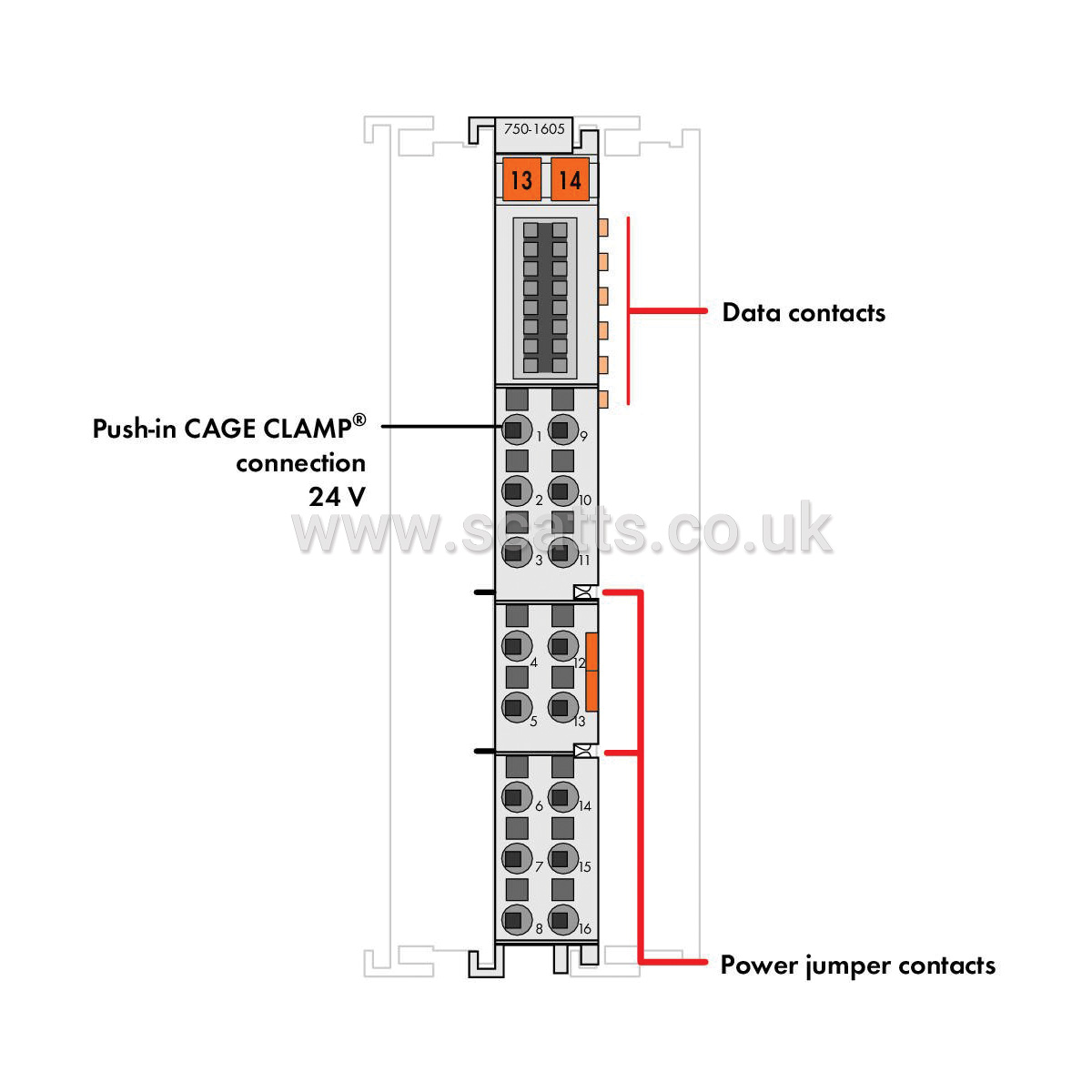

The 24 V supply and 0 V potential are derived from the internal power jumper contacts of an adjacent upstream I/O module. A connection of the potentials to the downstream I/O modules is made automatically via the power jumper contacts when snapping the I/O modules together. The 24 V power is provided to all sixteen field-side Push-in CAGE CLAMP® connections and the 0 V potential passed through without being used by the module. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
Connection technology: field supply 16 x CAGE CLAMP®
Connection type 1: Field supply
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69 mm / 2.717 inches
Mounting type; DIN-35 rail
Housing material: Polycarbonate; polyamide 6.6
Brand |
WAGO |
|
£34.60
per 1 (ex. VAT)£41.52
per 1 (inc. VAT)
