Part Number: 750-1606
Manufacturer Code: 750-1606
Multiples of: 1 | Minimum Order: 1

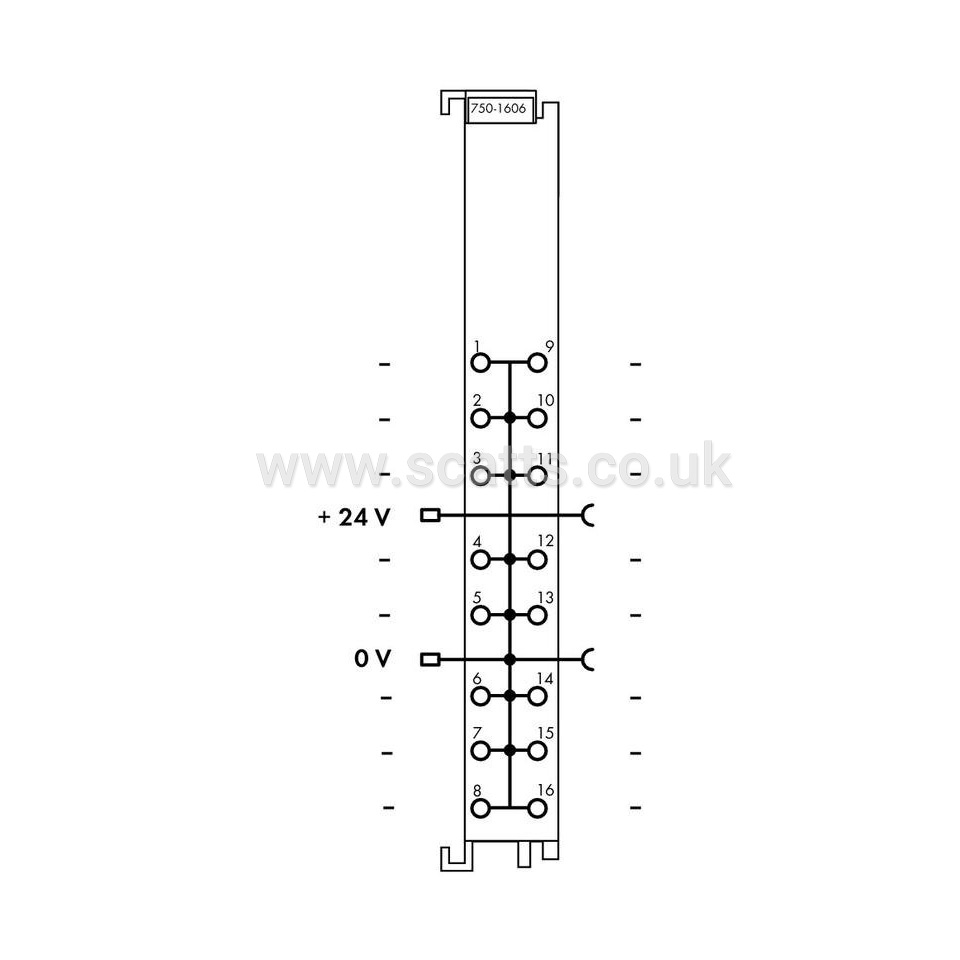

Potential Distribution - 16-way, 0 V
This potential multiplication module provides 0 V to the outputs in combination with the 750-1504 16-Channel Output Module (also suitable for 8-channel output modules with a single wire connection). This eliminates the need for additional DIN-rail-mount terminal blocks.

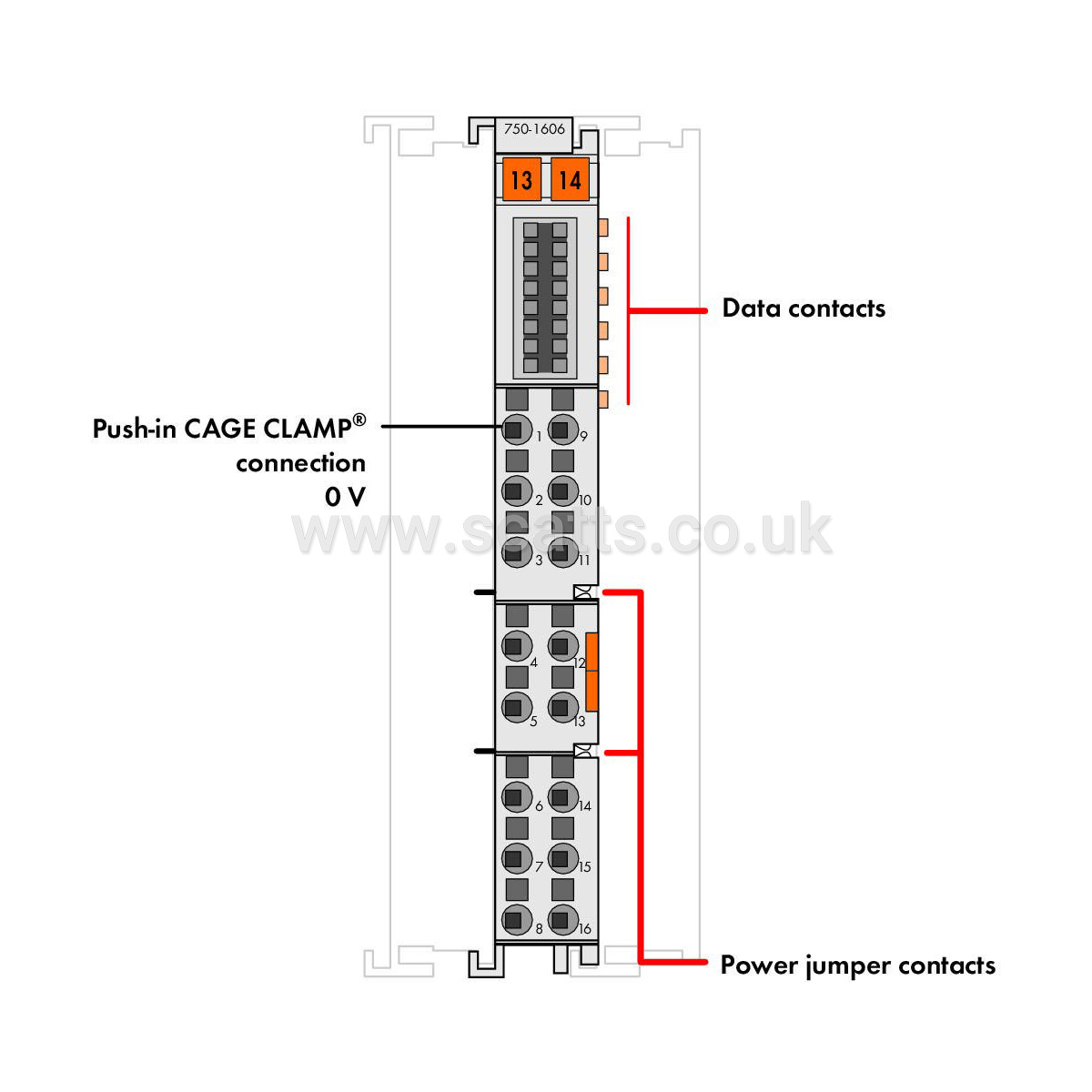

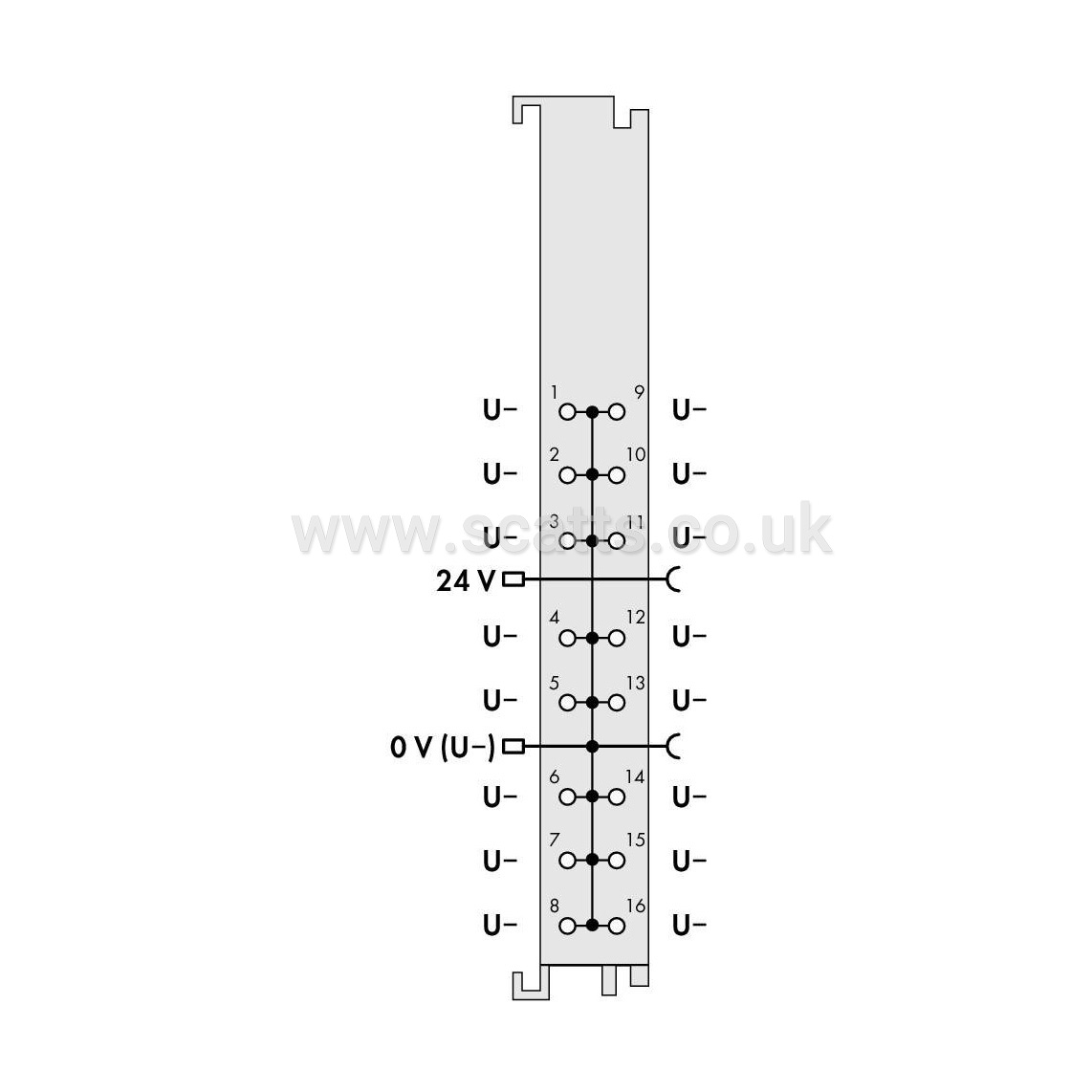

The 24 V supply and 0 V potential are derived from the internal power jumper contacts of an adjacent upstream I/O module. A connection of the potentials to the downstream I/O modules is made automatically via the power jumper contacts when snapping the I/O modules together. The 0 V power is provided to all sixteen field-side Push-in CAGE CLAMP® connections and the 24 V potential passed through without being used by the module.
An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
Connection technology: field supply: 16 x CAGE CLAMP®
Connection type 1: Field supply
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69 mm / 2.717 inches
Mounting type: DIN-35 rail
Housing material: Polycarbonate; polyamide 6.6
