My Part Number:
Part Number: 750-310
Manufacturer Code: 750-310
Multiples of: 1 | Minimum Order: 1
Fieldbus Coupler CC-Link - light gray
This fieldbus coupler connects the WAGO I/O System as a slave to the CC-Link fieldbus. The fieldbus coupler detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules. The process image can be transferred via the CC‐Link fieldbus to the memory of the control system. The local process image is divided into two data zones containing the data received and the data to be sent. The process data can be sent via CC-Link to a control system for further processing. The process output data is sent via CC-Link.
The data of the analog modules is stored in the process image that is created automatically according to the order in which the modules are connected to the coupler. The bits of the digital modules are sent byte by byte and added to the analog data. If the amount of digital I/O information exceeds eight bits, the coupler automatically starts with a new byte.
Connection technology: communication/fieldbus: CC-Link: 1 x D-Sub 9 socket

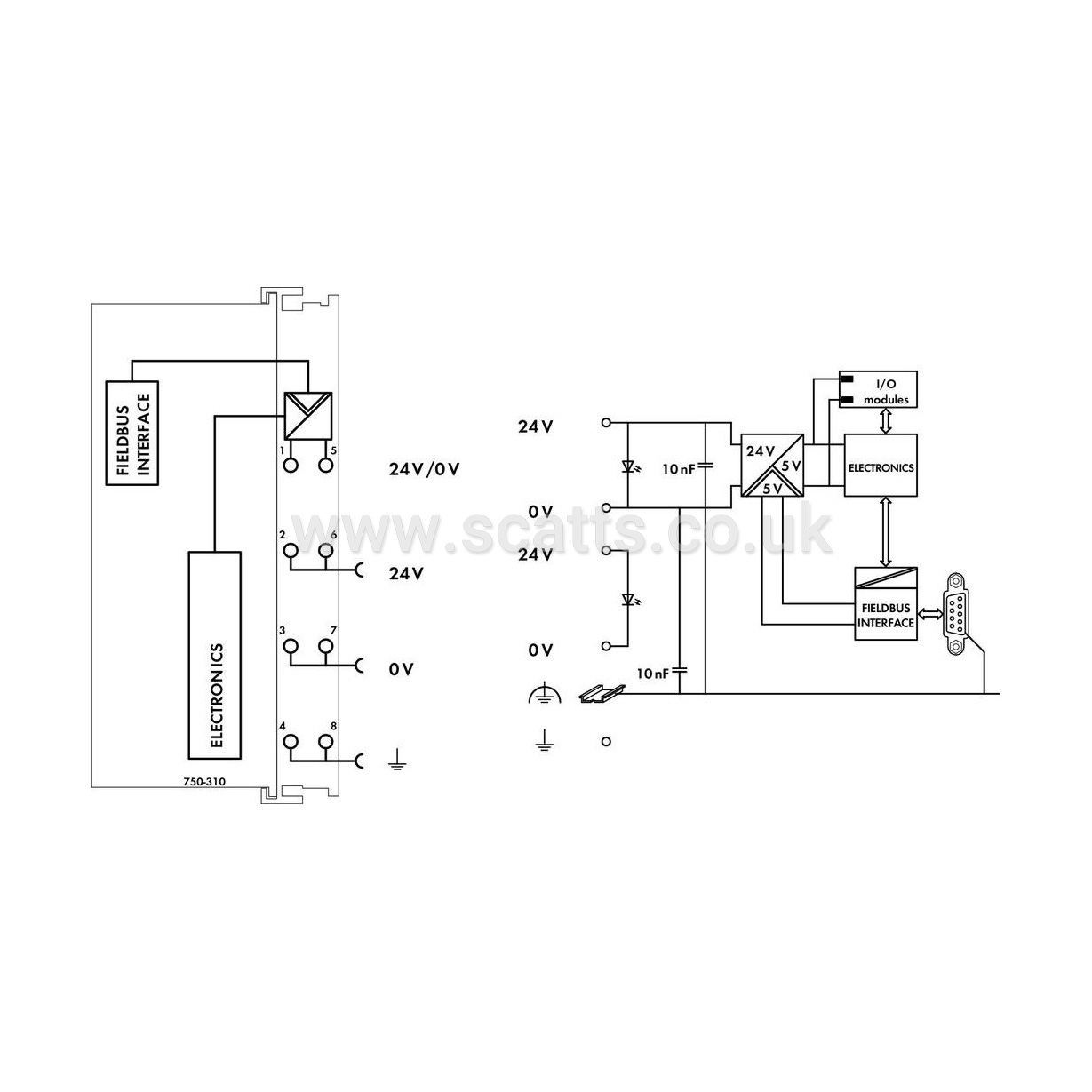

Connection technology: field supply: 6 x CAGE CLAMP®
Connection technology: system supply: 2 x CAGE CLAMP®
Connection technology: device configuration: 1 x Male connector; 4-pole
Connection type 1: System/field supply
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 50.5 mm / 1.988 inches
Height: 100 mm / 3.937 inches
Depth: 71.1 mm / 2.799 inches
Mounting type: DIN-35 rail
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Brand |
WAGO |
|
£418.99
per 1 (ex. VAT)£502.79
per 1 (inc. VAT)
