My Part Number:
Part Number: 750-346
Manufacturer Code: 750-346
Multiples of: 1 | Minimum Order: 1

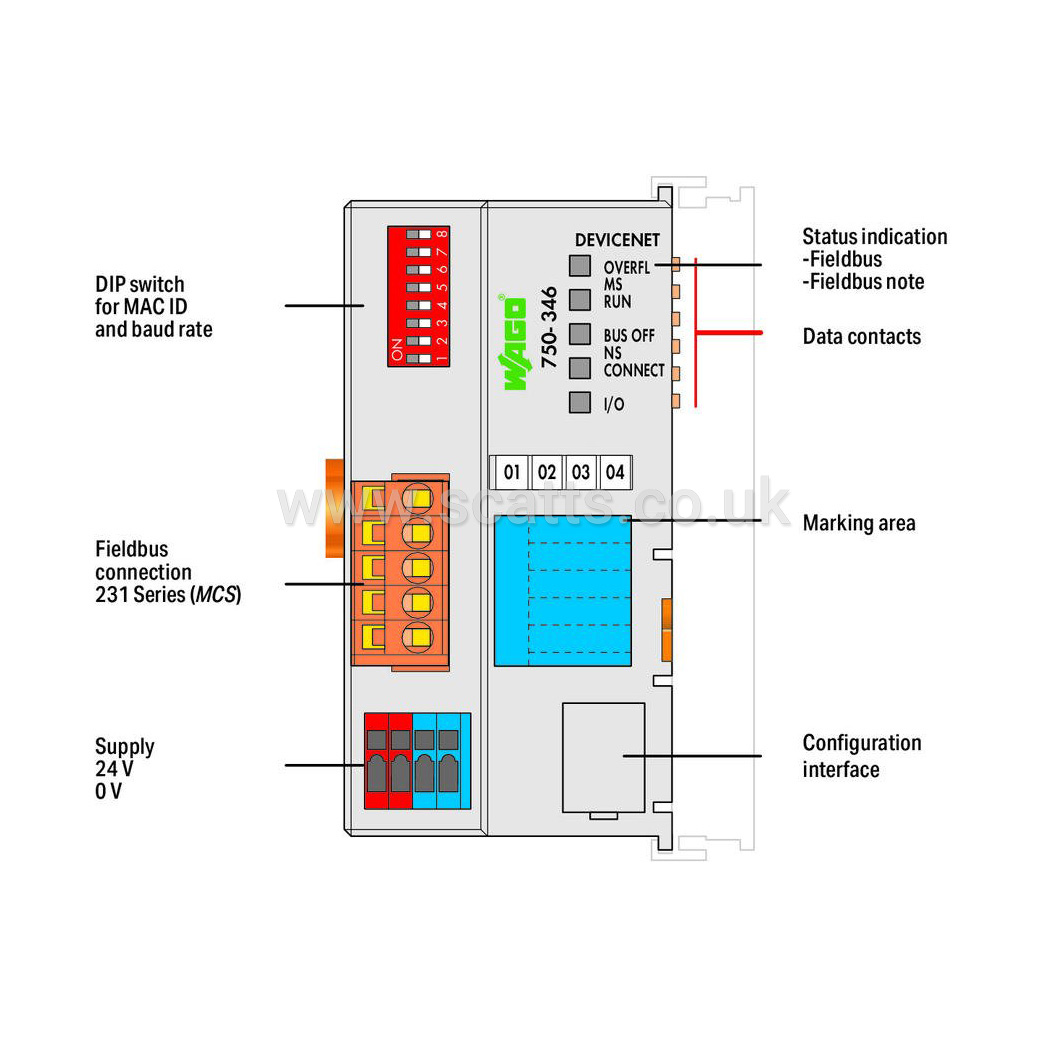

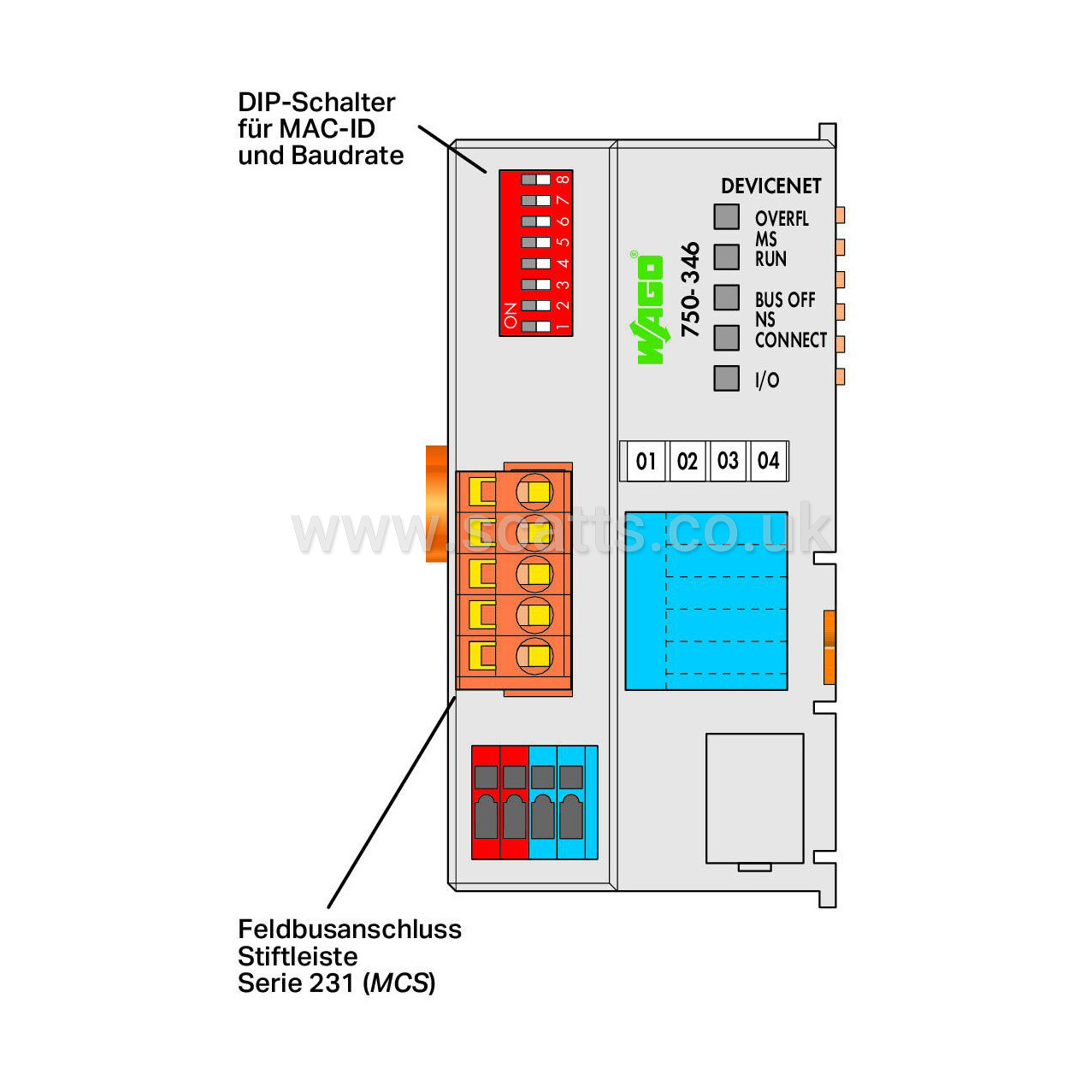

Fieldbus Coupler DeviceNet - ECO, light gray
The ECO Fieldbus Coupler is designed for applications with a low data width in the process image. These are primarily applications that use digital process data or only low volumes of analog process data.
The system supply is provided directly by the coupler. The field supply is provided via a separate supply module.
The DeviceNet Fieldbus Coupler detects all connected I/O modules and creates a local process image.
The process image can be transferred via the DeviceNet fieldbus to the memory of the control system.
The local process image is divided into two data zones containing the data received and the data to be sent. The process data can be sent via the DeviceNetTM to a control system for further processing. The process output data is sent via DeviceNetTM.
The data of the analog modules is stored in the process image that is created automatically according to the order in which the modules are connected to the coupler. The bits of the digital modules are sent byte by byte and added to the analog data. If the amount of digital I/O information exceeds eight bits, the coupler automatically starts with a new byte.
Communication: DeviceNet
Number of fieldbus nodes on master (max.): 64
Number of I/O points: 6,000
Baud rate: 500 kBd (125 kBd, 250 kBd, 500 kBd)
Bus segment length (max.): 500 m
Transmission medium: Shielded Cu cable; Remote bus cable: 2 x 0.82 mm² + 2 x 1.7 mm²; Drop cable: 2 x 0.2 mm² + 2 x 0.32 mm²
Number of modules per node (max.): 64
Input and output process image (fieldbus) max.: 32 bytes/32 bytes

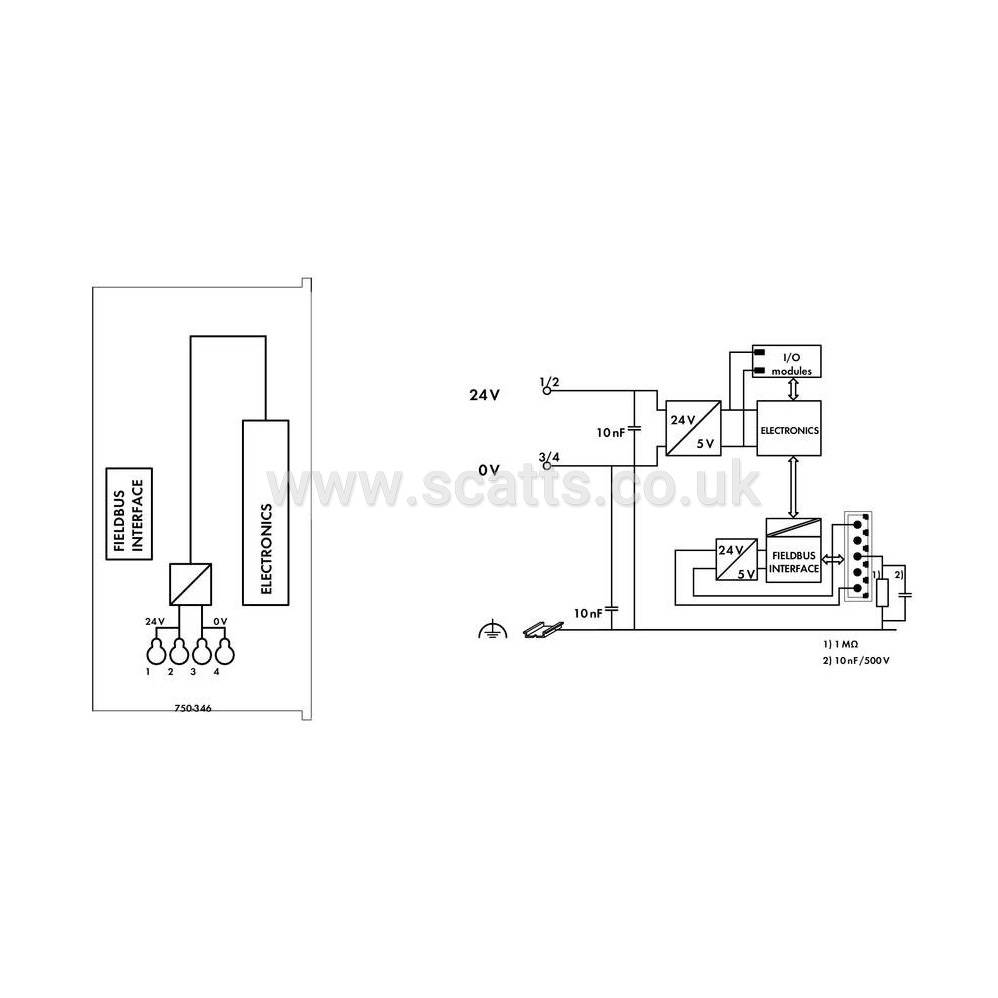

Supply voltage (system): 24 VDC (-15 … +20 %); via pluggable connector
Current consumption (5 V system supply): 350mA
Total current (system supply): 650mA
Input current via DeviceNet interface at 11 V: 120mA
Input current (typ.): 260mA
Power supply efficiency (typ.) at nominal load (24 V): 80%
Brand |
WAGO |
|
£221.75
per 1 (ex. VAT)£266.10
per 1 (inc. VAT)
