Part Number: 750-354/000-001
Manufacturer Code: 750-354/000-001
Multiples of: 1 | Minimum Order: 1

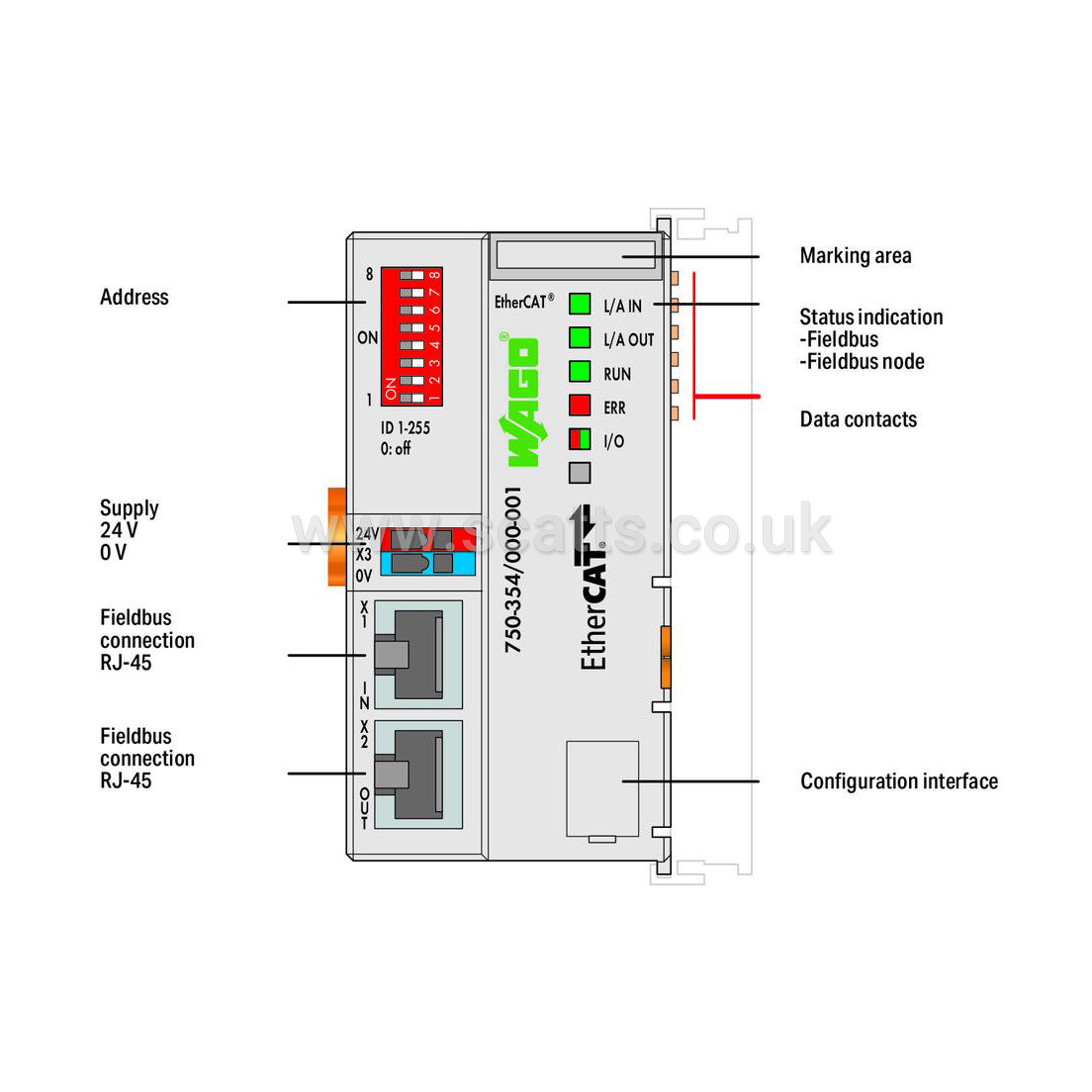

Fieldbus Coupler EtherCAT - ID Switch, light gray
The EtherCAT® Fieldbus Coupler connects EtherCAT® to the modular WAGO I/O System.
The fieldbus coupler detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules.
The upper EtherCAT® interface connects the coupler to the network. The lower RJ-45 socket may connect additional EtherCAT ® devices to the same line.
EtherCAT® (Ethernet Control Automation Technology) is a real-time ETHERNET solution designed for industrial automation applications and characterized by high performance, flexible topology and simple configuration. With EtherCAT®, the costly ETHERNET star topology can be replaced with a simple line or tree structure.
The address selection switch is used to set an Explicit Device ID (EDI), which allows a fixed address to be assigned to an EtherCAT® slave.
Communication: EtherCAT®
Baud rate: 100 Mbit/s
Transmission medium: Shielded twisted pair S/FTP, F/FTP or SF/FTP; 100 Ω; Cat. 6
Transmission performance: Class D per EN 50173
Number of modules per node (max.): 64
Input and output process image (fieldbus) max.: 1024 bytes/1024 bytes

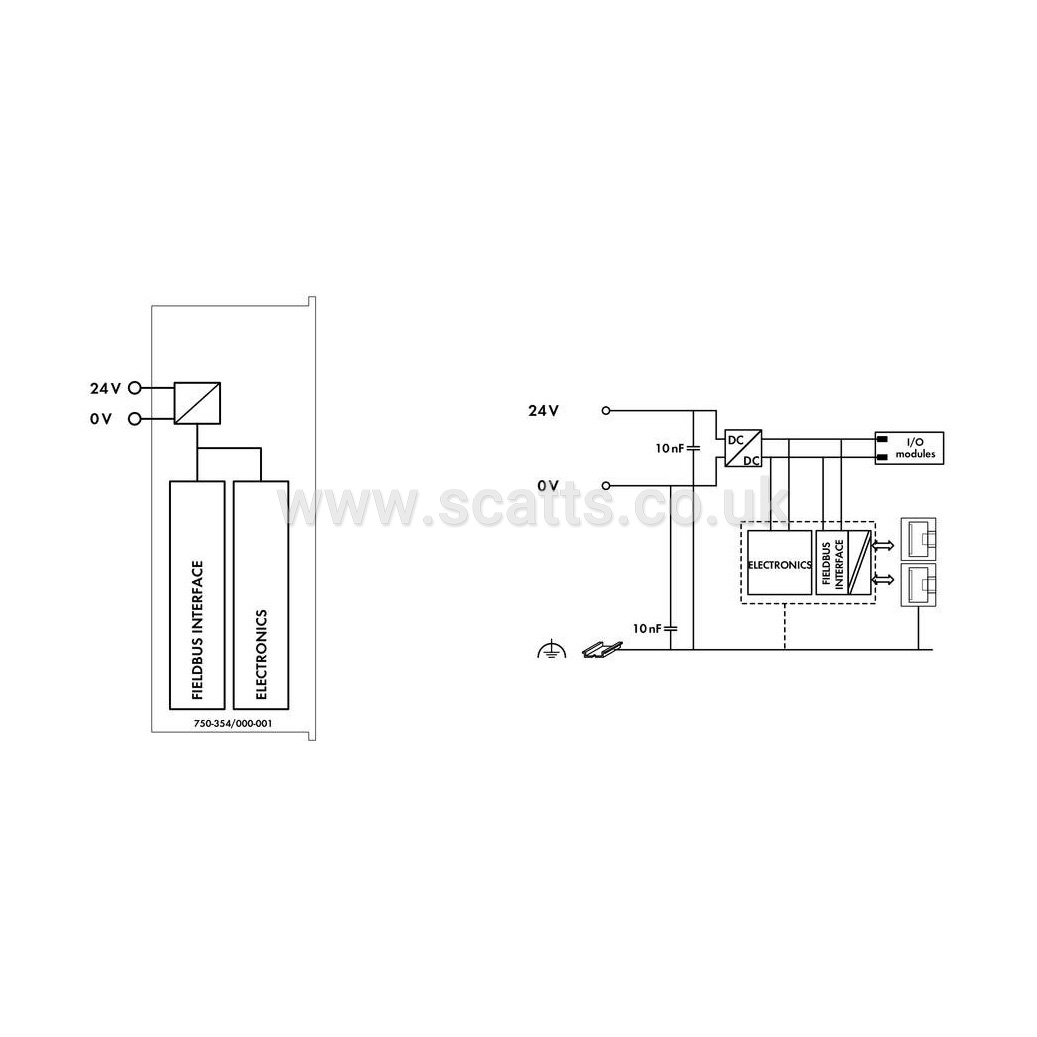

Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
Current consumption (5 V system supply): 300mA
Total current (system supply): 700mA
Input current (typ.): 250mA
Power supply efficiency (typ.) at nominal load (24 V): 85%
Isolation: 500 V system/field
