UP/DOWN COUNTER 24V DC 100KHZ

Up/Down Counter - light gray


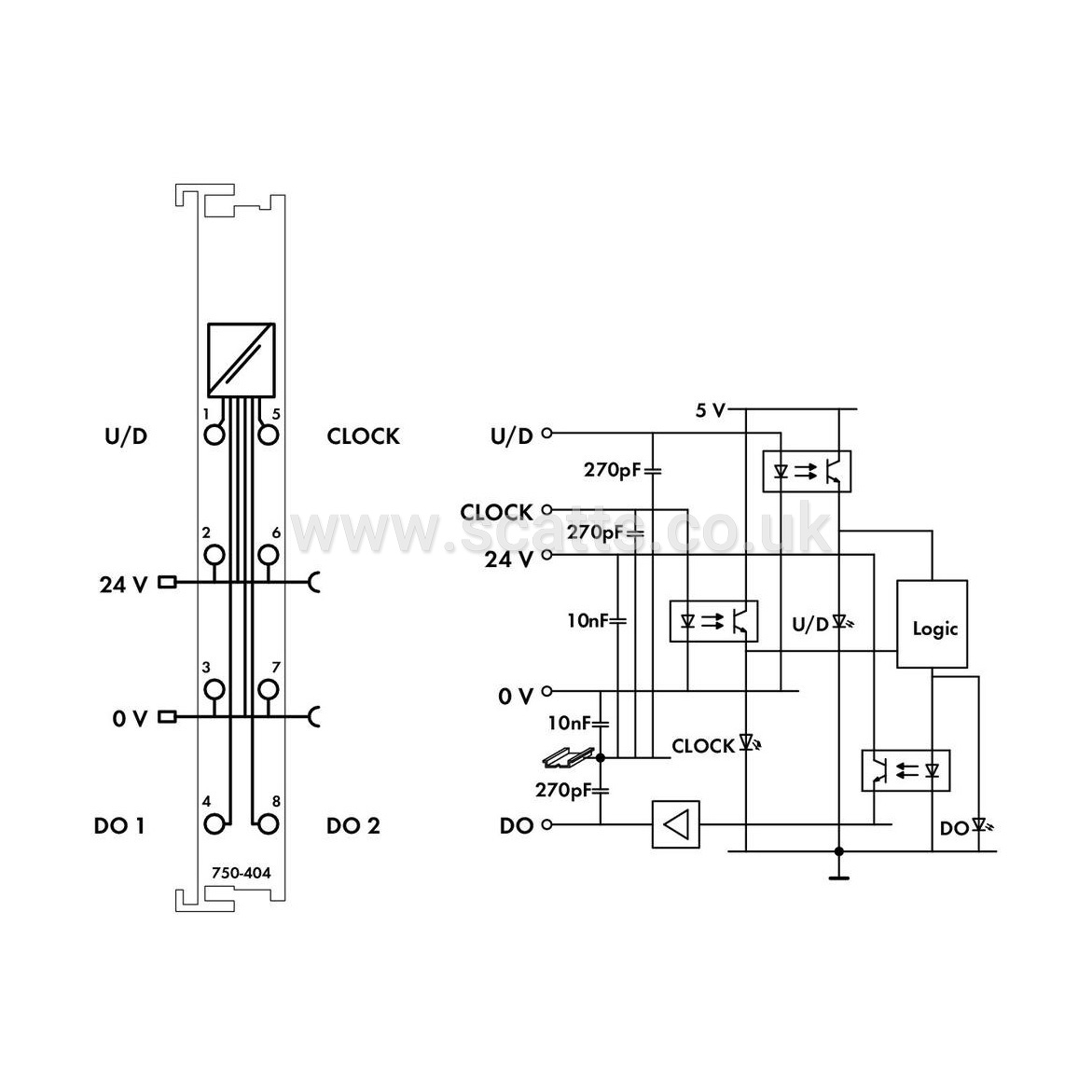

This counter records 24 V binary pulses and transmits the counter status to the fieldbus system.

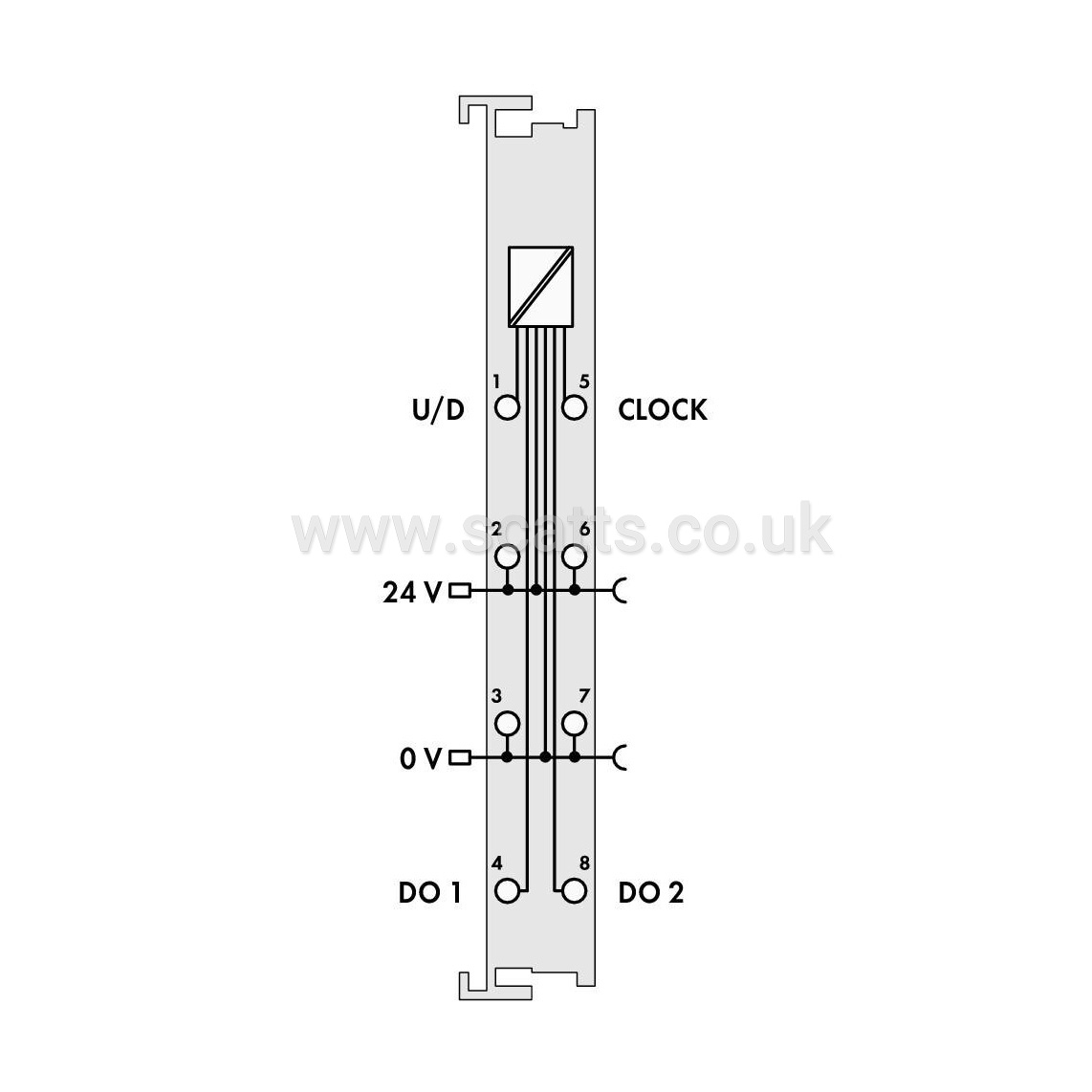

The U/D input allows either Up or Down counting.
Digital outputs DO 1 and DO 2 can be set using the control byte.
The control byte sets or resets the counter.
A counter lock-out is also possible.

Number of digital outputs: 2
Number of counters: 1
Signal type: Voltage
Signal type: 24 VDC
Counter depth: 32Bit
Input current (typ.): 6 mA
Output current per channel: 0.5A
Output current: short-circuit-protected
Switching frequency (max.): 100 kHz
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
Data width: 32-bit data; 8-bit control/status
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 70mA
Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

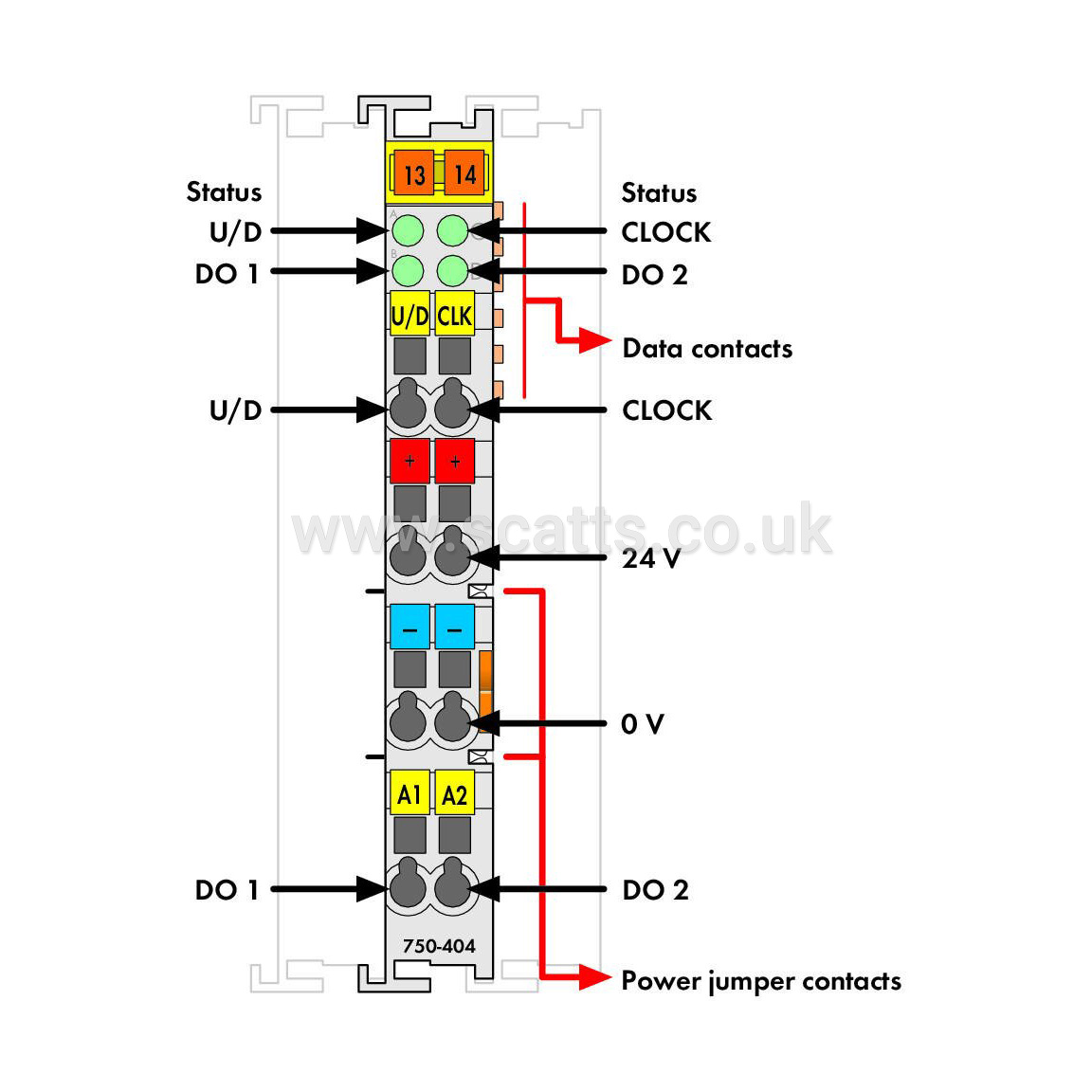

Indicators: LED (A-D) green: Status U/D, DO 1, CLOCK, DO 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
