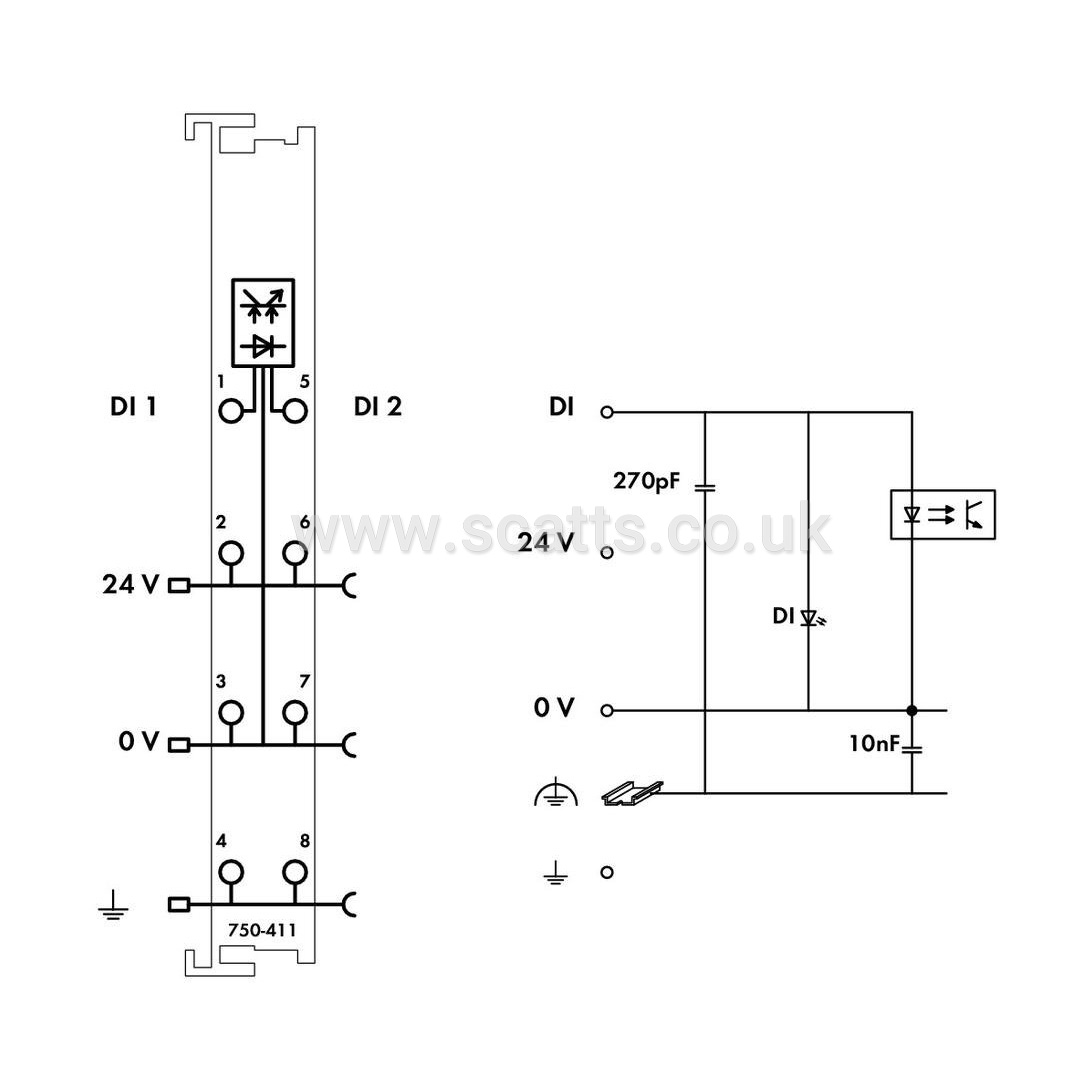

2 CH 24VDC I/P PROXIMITY SW.

2-channel digital input - 24 VDC, 0.2 ms, Proximity switch, light gray


This digital input module receives control signals from field devices (e.g., sensors).
Each input module has a noise-rejection filter.
Field and system levels are electrically isolated.
A 2-wire proximity sensor can be connected to this module.

Number of digital inputs: 2
Total number of channels (module): 2
Signal type: Digital, Voltage
Signal type: 24 VDC

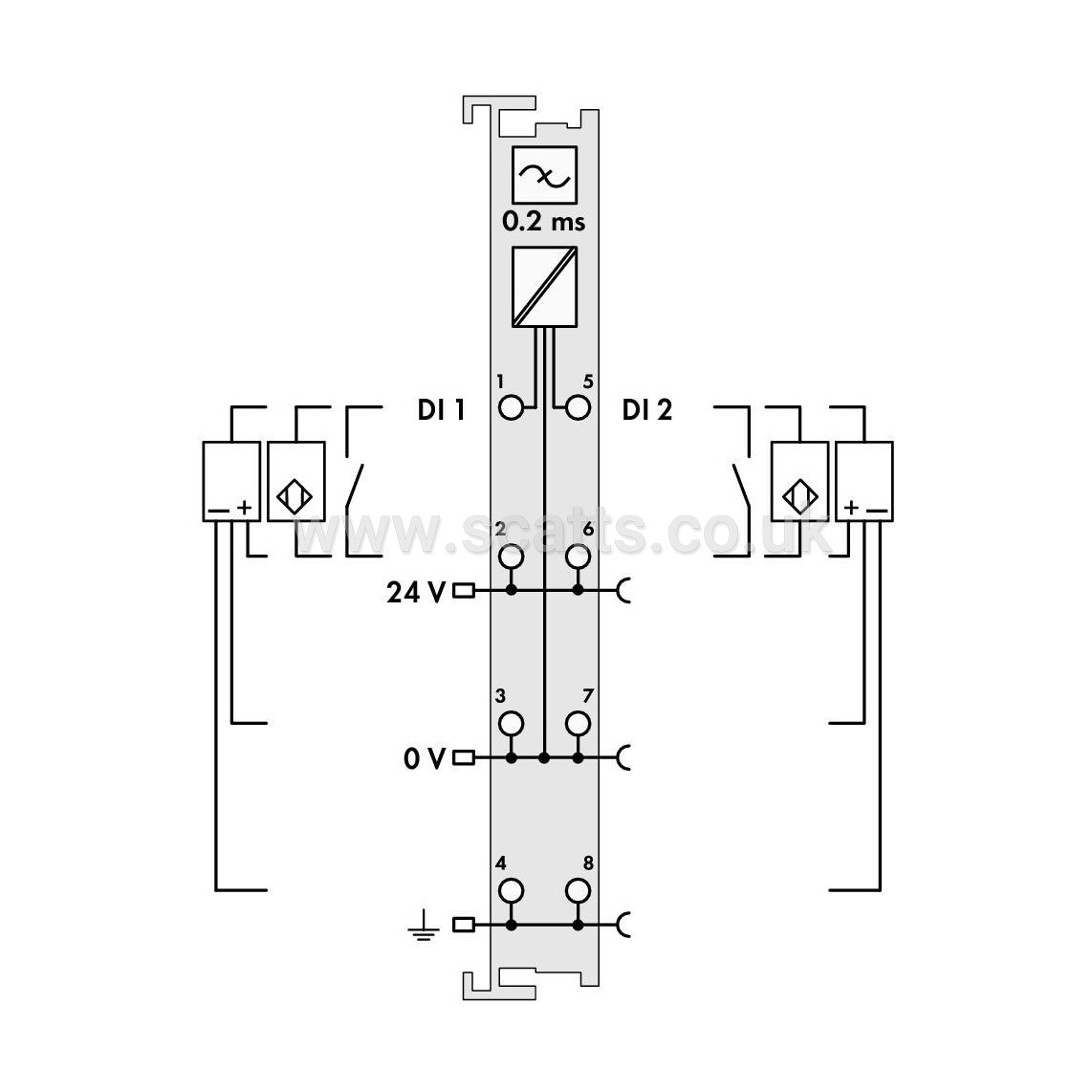

Sensor connection: 2 x (2-wire, 3-wire, 4-wire); 2-wire proximity sensor
Input characteristic: high-side switching
Input filter (digital): 0.2ms, 0.2ms
Input current per channel for signal (1) typ.: 8mA
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
Input data width (internal) max.: 2Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 2.5mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

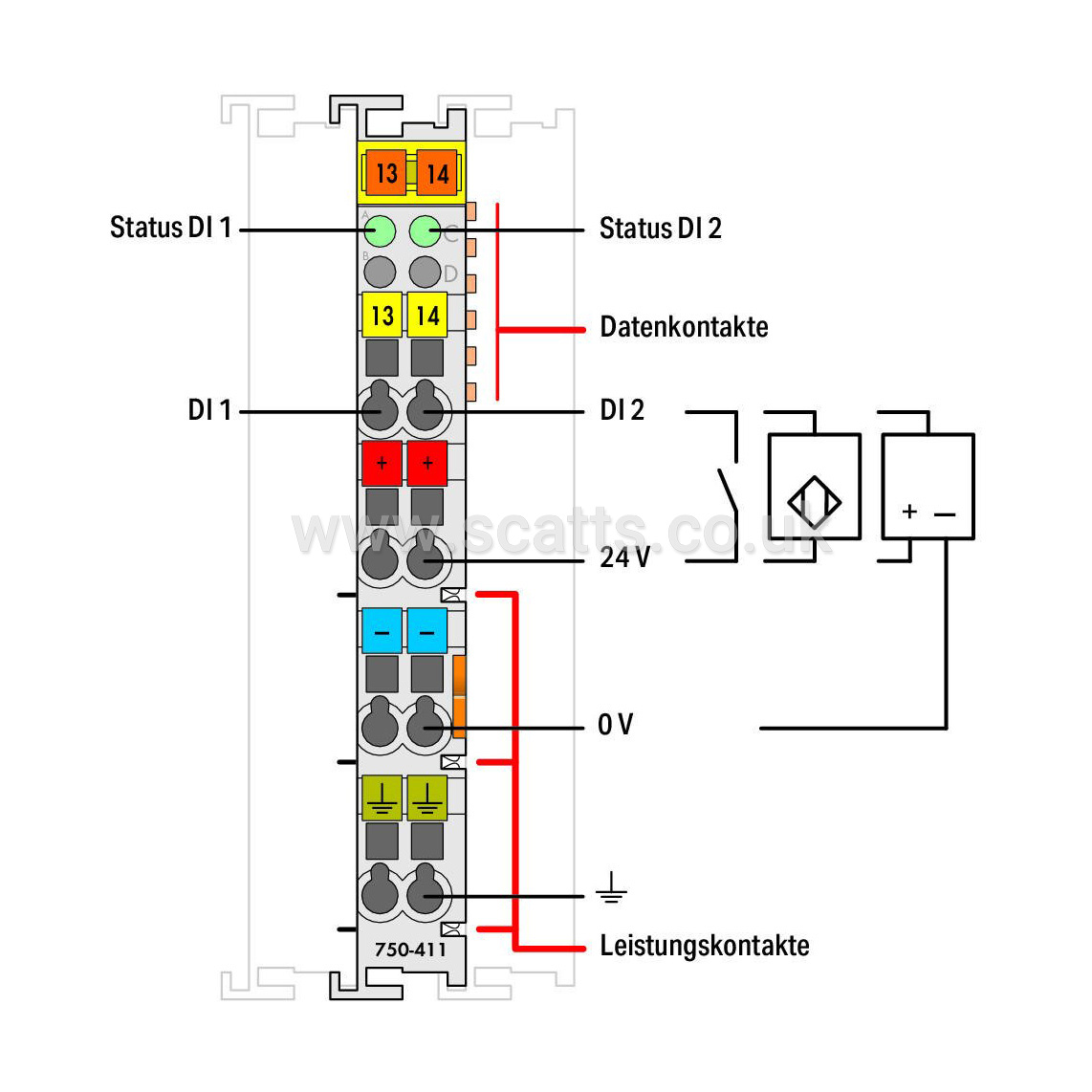

Indicators: LED (A, C) green: Status DI 1, DI 2
Number of incoming power jumper contacts: 3
Number of outgoing power jumper contacts: 3
Current carrying capacity (power jumper contacts): 10A
