Part Number: 750-424
Manufacturer Code: 750-424
Multiples of: 1 | Minimum Order: 1
2-channel digital input - Intruder detection, light gray
This module incorporates a current loop, which makes it possible to monitor alarm contacts (window contacts) with a fixed resistance ratio (R1, R2), for intruder detection. The module indicates the status of the connected contact via LEDs and status bits in the process image.
Number of digital inputs: 2
Total number of channels (module): 2
Signal type: Current loop (intruder detection)

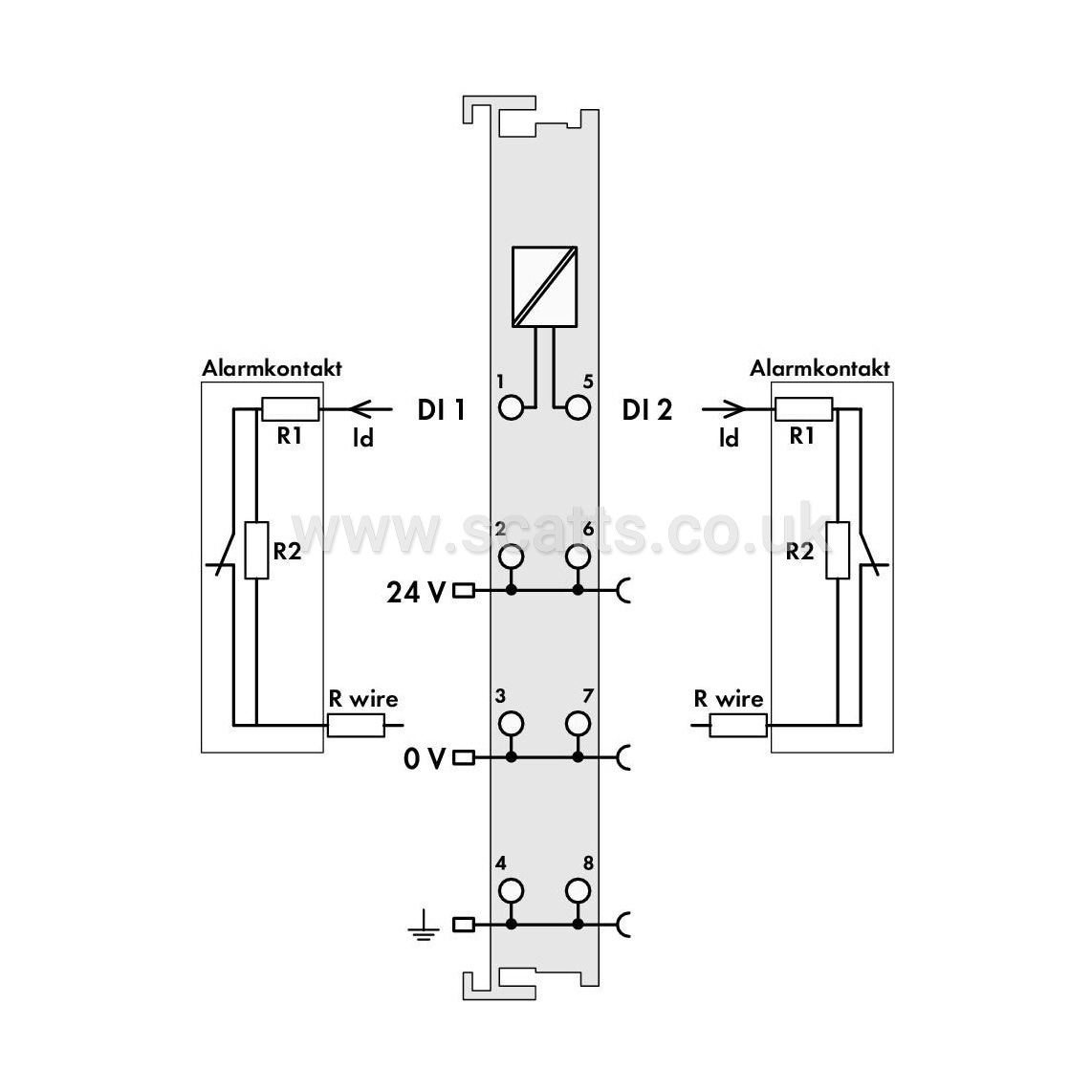

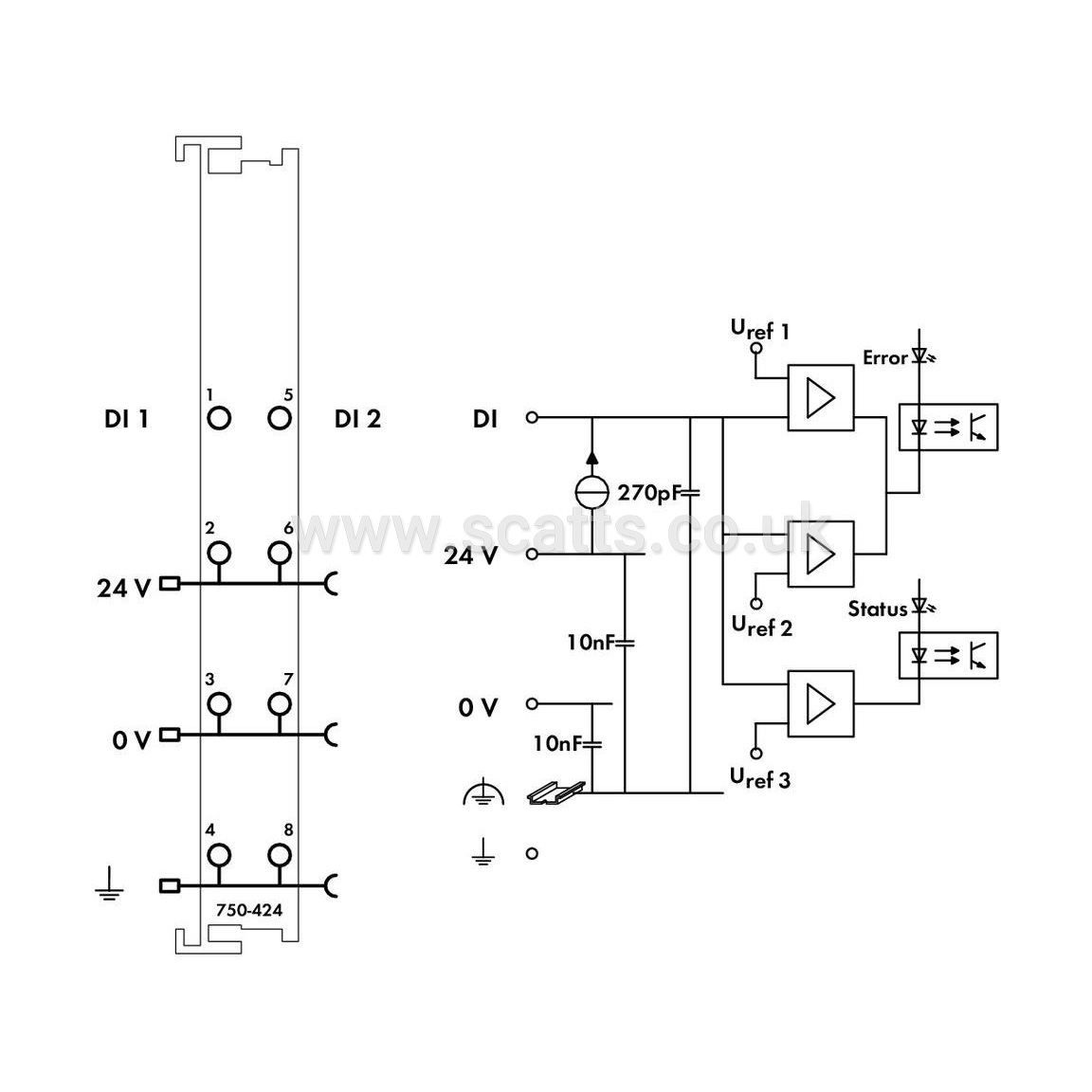

Sensor connection: 2 x (2-wire)
Specific sensor properties: Alarm contact: R1 = 1.5 kΩ (±5 %); R2 = 2.2 kΩ (±5 %); Conductor resistance (R wire): 200 Ω (max.)
Output current per channel: 0.001A
Input data width (internal) max.: 4Bit
Data width: 4-bit input: 2-bit data, 2-bit error (short circuit/wire break)
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 6mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 16mA
Isolation: 500 V system/field

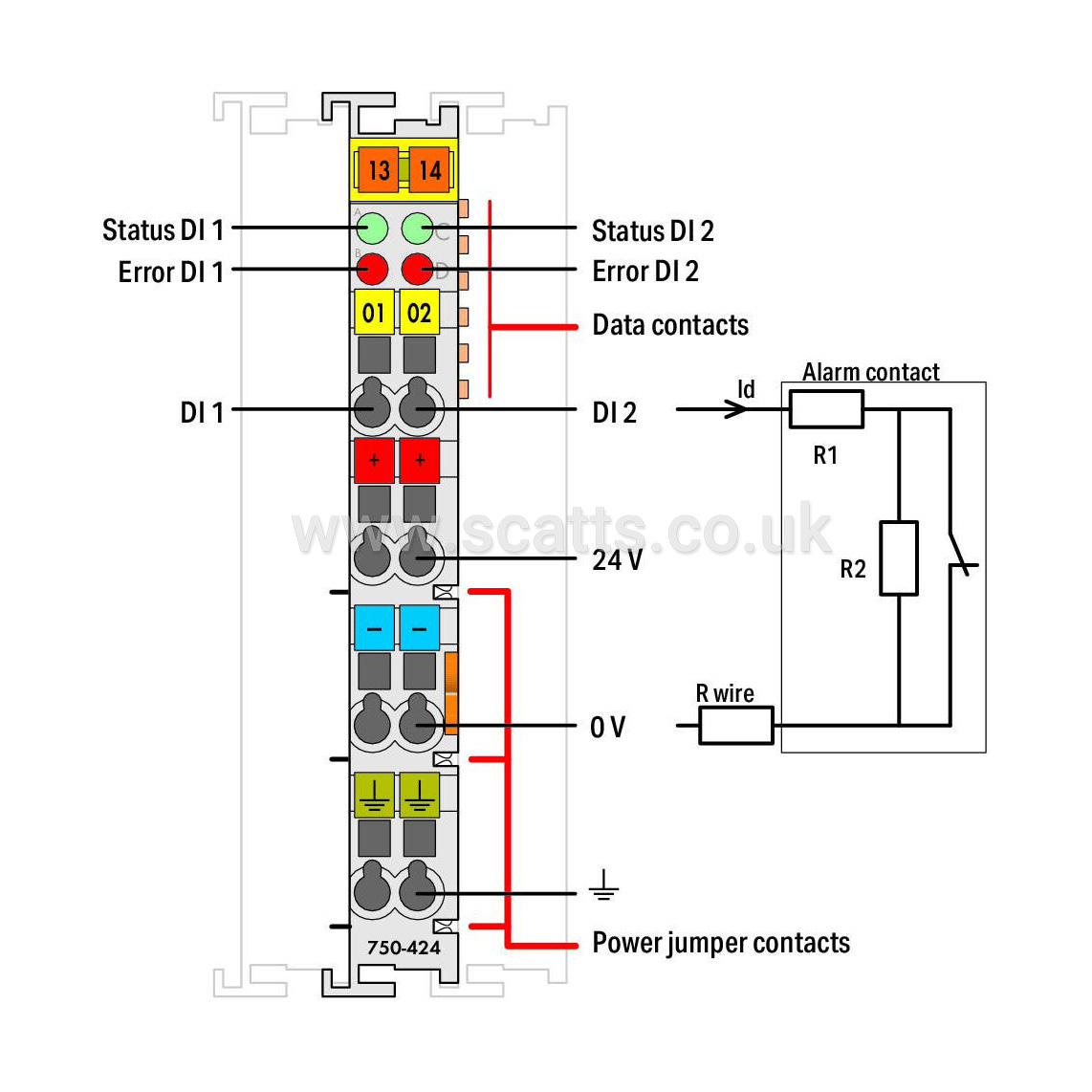

Indicators: LED (A, C) green: Status DI 1, DI 2; LED (B, D) red: Error DI 1, DI 2
Number of incoming power jumper contacts: 3
Number of outgoing power jumper contacts: 3
Current carrying capacity (power jumper contacts): 10A
