2 CH DI/P 110V DC NPN/PNP

2-channel digital input - 110 VDC, light gray


This digital input module receives control signals from field devices (e.g., sensors).

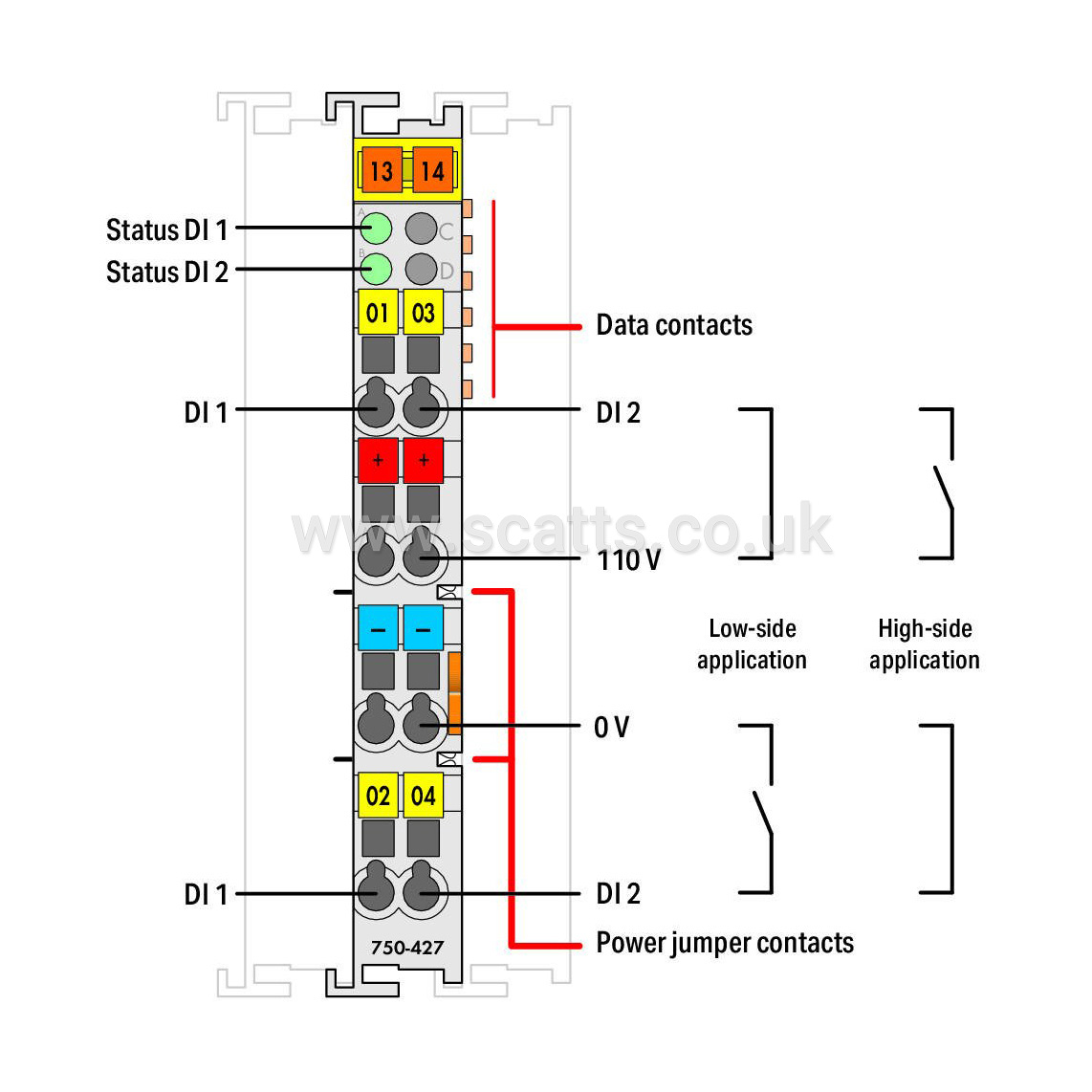

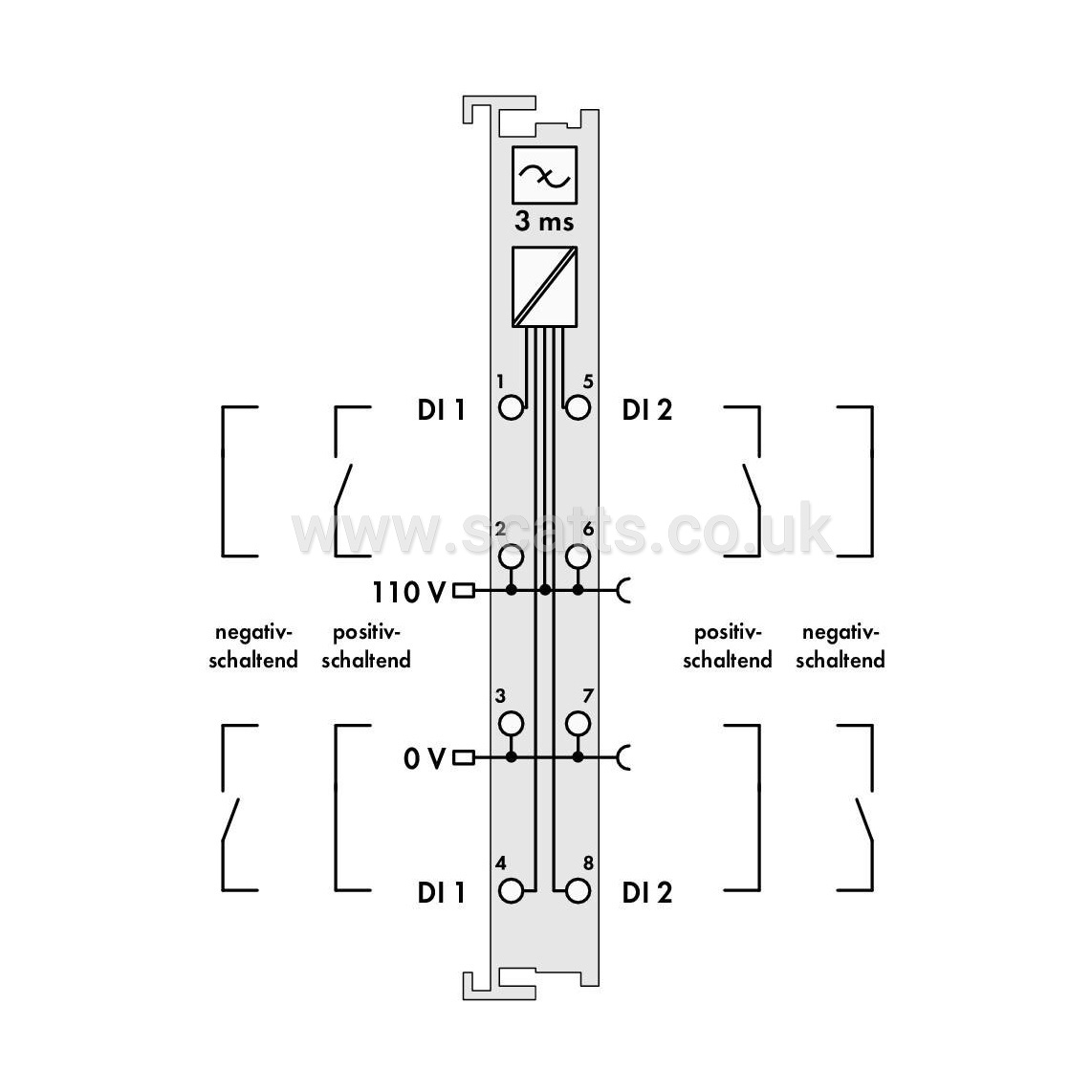

The module features two channels. Each channel can be used as a high-side or low-side switching input.

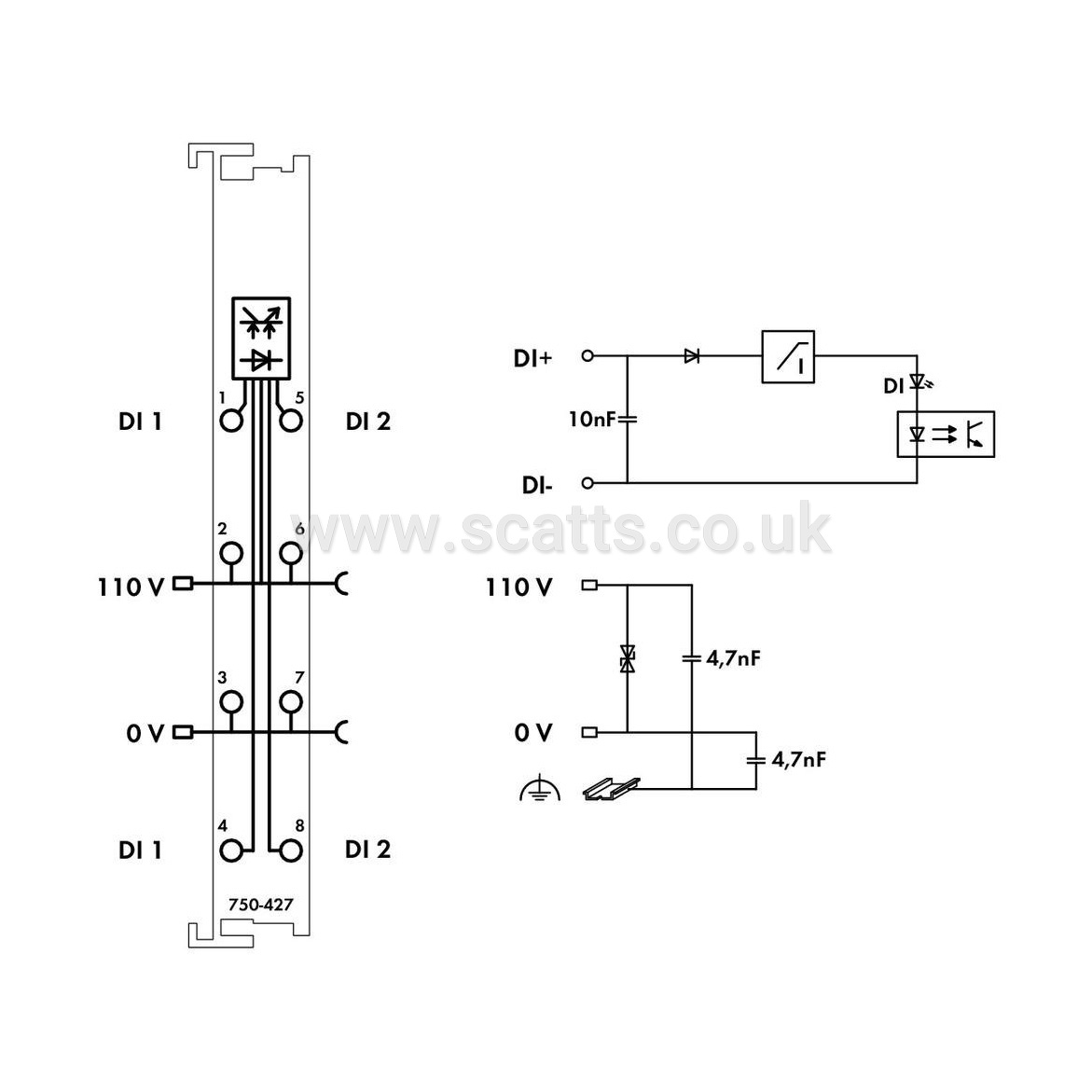

Field and system levels are electrically isolated.
Notice: An additional supply module must be added for 110 VDC supply!

Number of digital inputs: 2
Total number of channels (module): 2
Signal type: Digital
Signal type: 110 VDC
Sensor connection: 2 x (2-wire)
Input characteristic: High-side/low-side switching, configurable
Input filter (digital): 3ms
Input current per channel for signal (1) typ.: 2.5mA
Voltage range for signal (0): −14 … +50 VDC
Voltage range for signal (1): 70 … 143 VDC
Input data width (internal) max.: 2Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 2.5mA
Supply voltage (field): 110 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 1500 V (system/field)
Indicators: LED (A, B) green: Status DI 1, DI 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
