My Part Number:
Part Number: 750-430/025-000
Manufacturer Code: 750-430/025-000
Multiples of: 1 | Minimum Order: 1
8-channel digital input - 24 VDC, 3 ms, Ext. Temperature

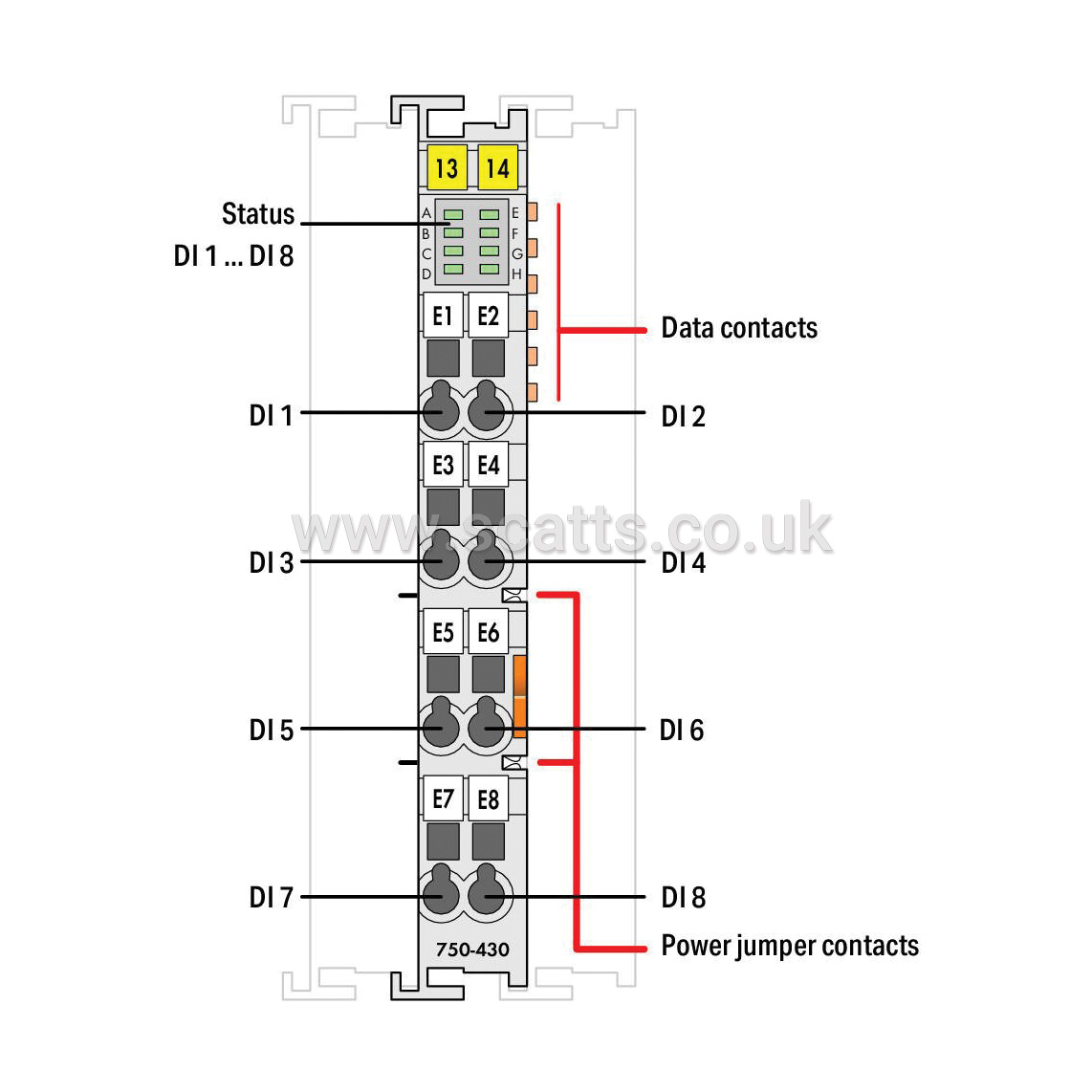

This digital input module features eight channels in a width of just 12 mm (0.47 inch). It receives control signals from digital field devices (e.g., sensors).
Each input module has a noise-rejection filter.
Field and system levels are electrically isolated.
Signal type: Digital, Voltage
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
Current consumption (5 V system supply): 17mA
Current carrying capacity (power jumper contacts): 10A
Brand |
WAGO |
|
£88.47
per 1 (ex. VAT)£106.16
per 1 (inc. VAT)
8-channel digital input - 24 VDC, 3 ms, Ext. Temperature
This digital input module features eight channels in a width of just 12 mm (0.47 inch). It receives control signals from digital field devices (e.g., sensors).
Each input module has a noise-rejection filter.
Field and system levels are electrically isolated.
Signal type: Digital, Voltage
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
Current consumption (5 V system supply): 17mA
Current carrying capacity (power jumper contacts): 10A
