My Part Number:
Part Number: 750-438
Manufacturer Code: 750-438
Multiples of: 1 | Minimum Order: 1
2-channel digital input - NAMUR, Intrinsically safe
This digital input module records binary signals from sensors operating in Zone 0+1 hazardous areas.
NAMUR sensors, optocouplers, mechanical contacts or other actuating elements can also be connected via intrinsically safe devices.
The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area. Each sensor is supplied with a short-circuit-protected voltage of 8.2 V.

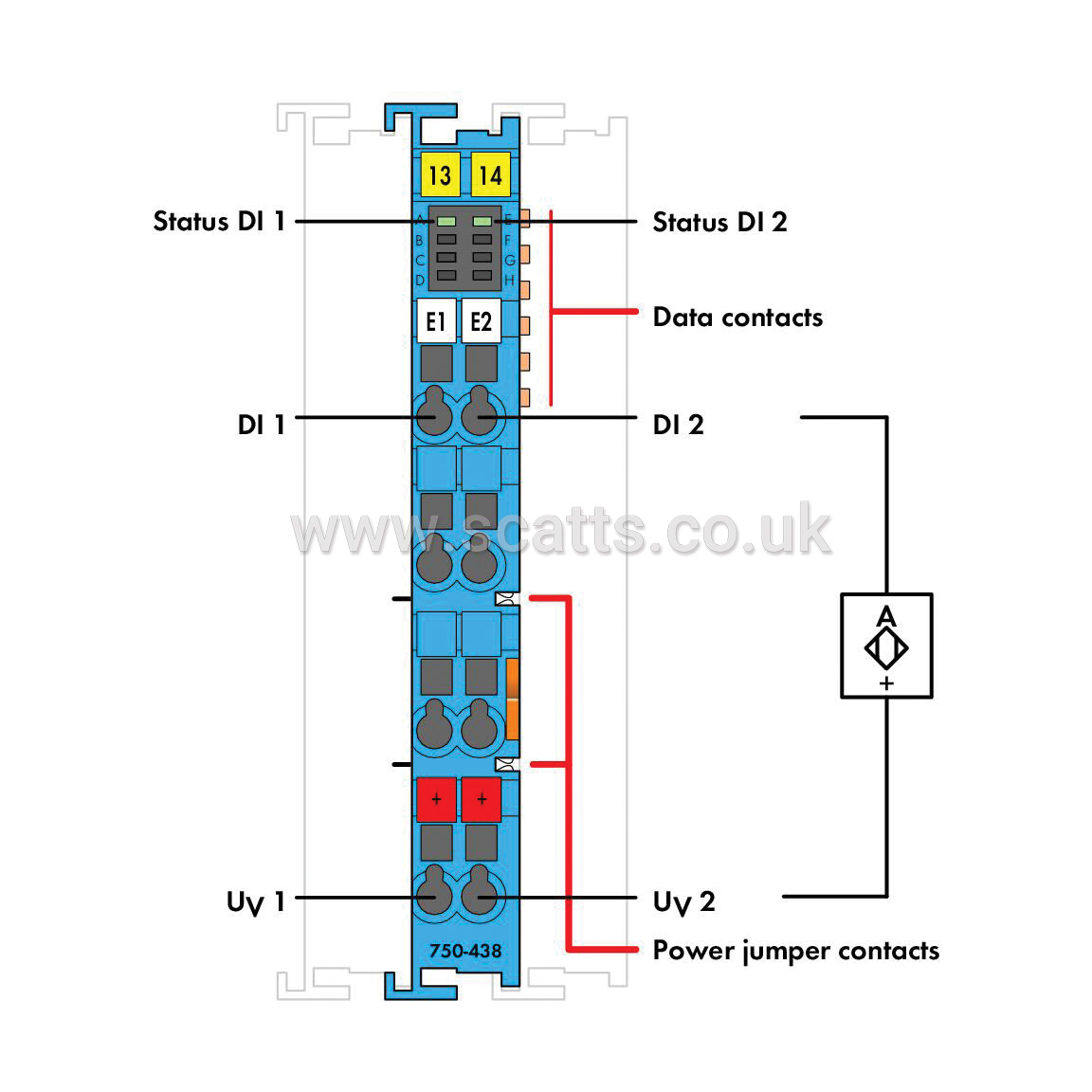

Indicators:
• Green LED (signal on)
Field and system levels are electrically isolated.
Brand |
WAGO |
|
Output Type |
NAMUR |
|
£127.70
per 1 (ex. VAT)£153.24
per 1 (inc. VAT)
2-channel digital input - NAMUR, Intrinsically safe
This digital input module records binary signals from sensors operating in Zone 0+1 hazardous areas.
NAMUR sensors, optocouplers, mechanical contacts or other actuating elements can also be connected via intrinsically safe devices.
The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area. Each sensor is supplied with a short-circuit-protected voltage of 8.2 V.
Indicators:
• Green LED (signal on)
Field and system levels are electrically isolated.
Brand |
WAGO |
|
Output Type |
NAMUR |
|
