My Part Number:
Part Number: 750-451
Manufacturer Code: 750-451
Multiples of: 1 | Minimum Order: 1
8-channel analog input - Resistance measurement, Adjustable, light gray
This analog input module directly connects to Pt or Ni resistance sensors. Two-wire sensors can be connected.
The module automatically linearizes the entire temperature range. A sensor error (short circuit, wire break or out-of-measurement range) is indicated by a red LED. Unused channels can be deactivated. The module can be configured via WAGO‐I/O‐CHECK or GSD files. It features multiple setting options and high accuracy.
Number of analog inputs: 8
Total number of channels (module): 8
Signal type: Resistance measurement, Potentiometer positions, Resistance measurement, Potentiometer positions
Signal type: yes

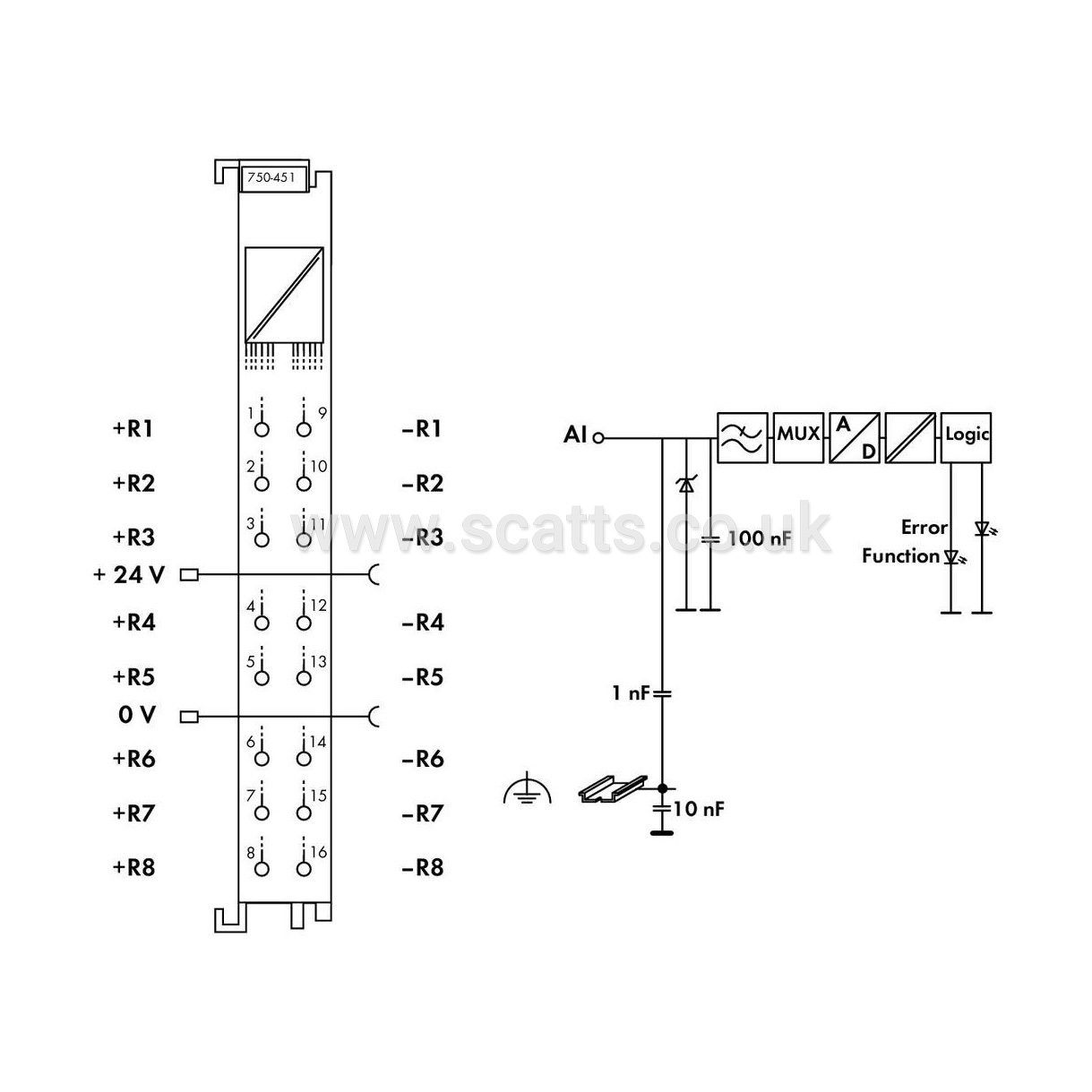

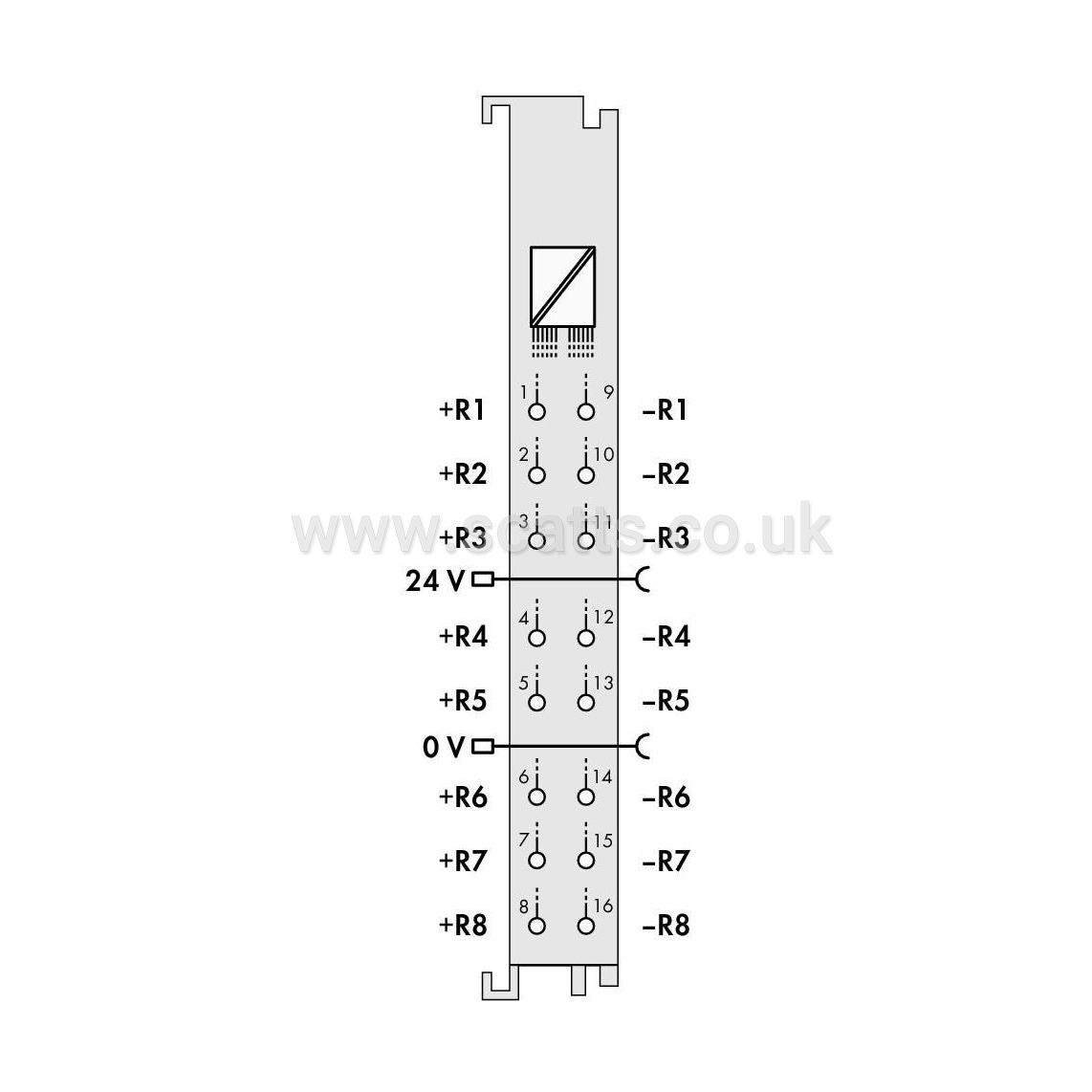

Sensor connection: 8 x (2-wire)
Data width: 8 x 16-bit data; 8 x 8-bit control/status (optional)
Resolution: 0.1 °C (over the entire range); 0.01 °C (–50 … 150 °C; Pt1000, Ni1000)
Conversion time (typ.): 100ms
Measurement error (25 °C): ≤ ±0.6 K (Pt100, Pt200, Pt500, Ni100, Ni120); ≤ ±0.2 K (Pt1000, Ni1000); ≤ ±0.3 Ω for resistance measurement
Measuring current (typ.): ≤ 350 µA
Response time (max.): 3s
Sensor types: Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 (TK6180 + TK5000), Potentiometer: 10R … 1k2, 10R … 5k0
Temperature range: −200 … +850 °C (Pt100, Pt200, Pt500, Pt1000), −60 … +250 °C (Ni100, Ni1000), −80 … +260 °C (Ni120)
Configuration options: WAGO-I/O-CHECK, CODESYS Library, e!COCKPIT
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 110mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field
Indicators: LED (1-8) green: Status R1 … R8; LED (9-16) red: Error R1 … R8
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Brand |
WAGO |
|
£309.41
per 1 (ex. VAT)£371.29
per 1 (inc. VAT)
