4 CH.AI/P 0-20MA XTR SERIES

4-channel analog input; 0 … 20 mA; Single-ended; Extreme

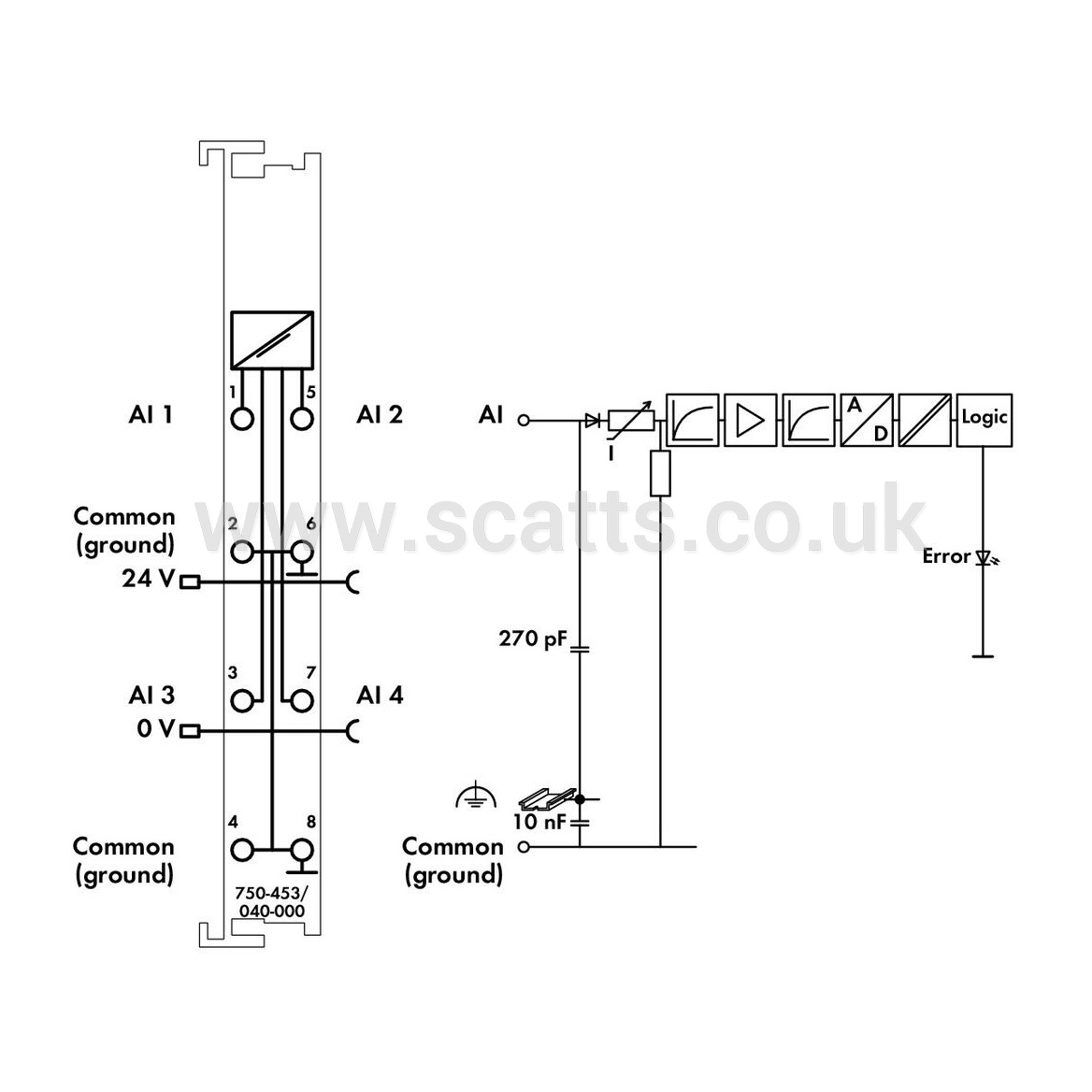

This analog input module processes standard 0–20 mA signals.
The input signal is electrically isolated and is transmitted with a resolution of 12 bits.
The internal system supply powers the module.
The input channels of the module have a common ground potential.
The device is ideal for operation in extreme environments thanks to:

• An extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance


Technical data
Number of analog inputs: 4
Total number of channels (module): 4
Signal type: Current
Signal type (current): 0 … 20 mADC

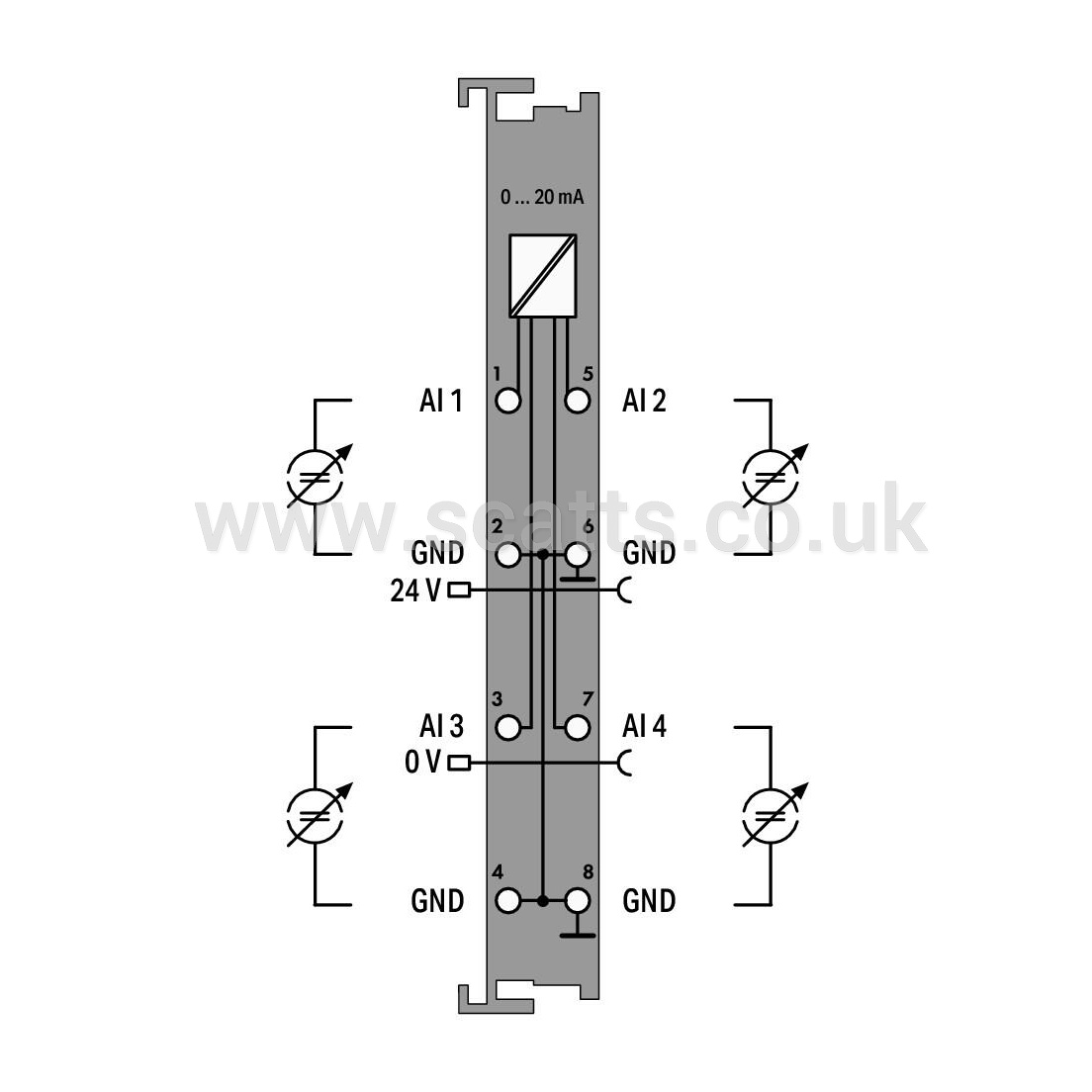

Sensor connection: 4 x (2-wire)
Input voltage (max.): 32 V
Signal characteristics: Single-ended
Resolution [bit]: 12Bit
Input resistance (max.): 100Ω
Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
Conversion time (typ.): 10ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.1%
Temperature error (max.) of the upper-range value: 0.01%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (system supply): 65mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed!
Dielectric strength: 510 VAC / 775 VDC; per EN 60870-2-1
Rated impulse withstand voltage: 1 kV

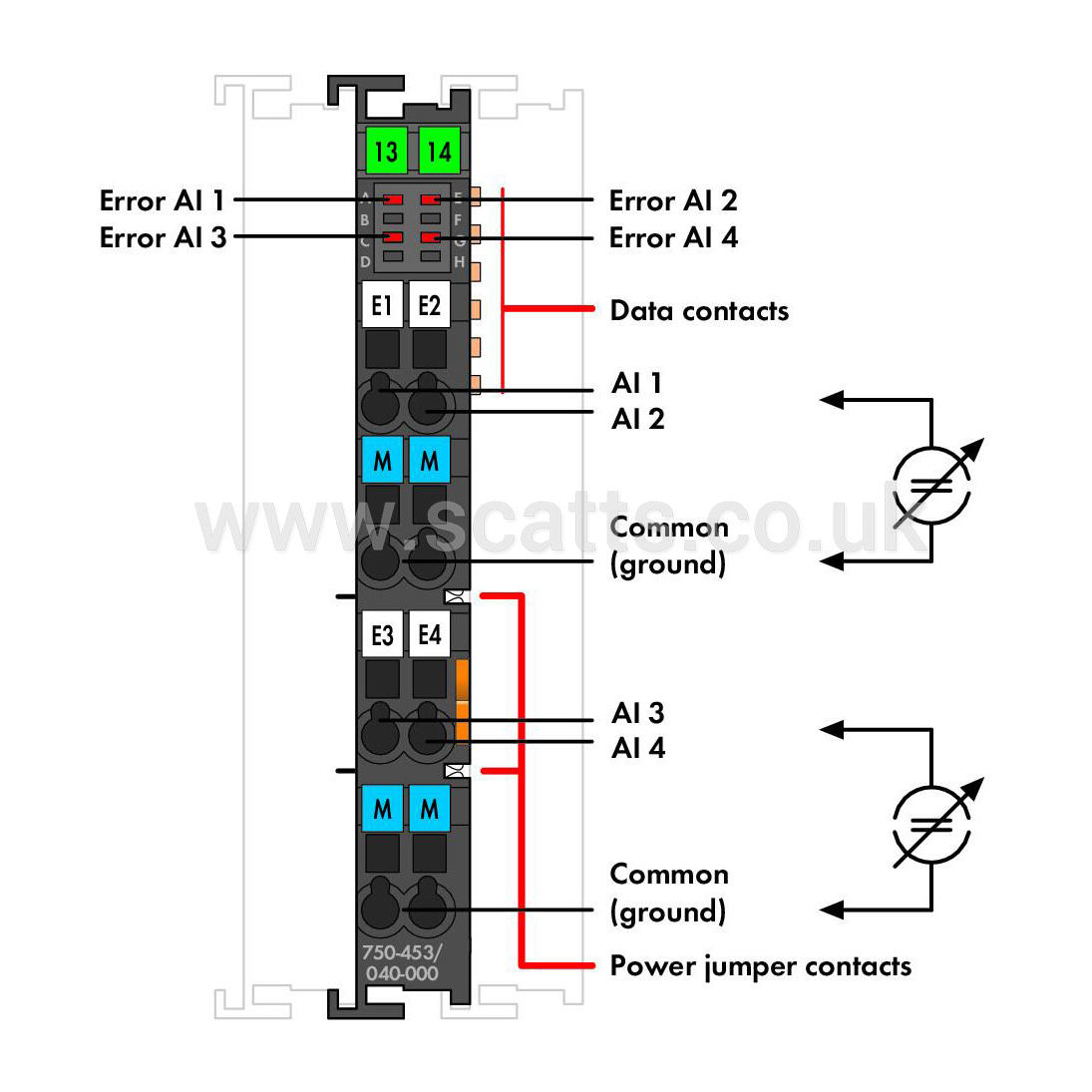

Indicators: LED (A, E, C, G) red: Error AI 1 … AI 4
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Derating
Derating (supply voltage): Ambient temperatures under laboratory conditions: (-25 … +30 %); for -40 … +55 °C: 24 V (-25 … +20 %); for +55 … +70 °C: 24 V (-25 … +10 %);
Lower limit in all temperature ranges: -27.5 % (including 15 % residual ripple)

Connection Data
Connection technology: I/O 8 x CAGE CLAMP®
Connectable conductor materials: Copper
Connection type: Inputs/outputs
Solid conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
Fine-stranded conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Physical data
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches

Mechanical data
Mounting type: DIN-35 rail

Material data
Colour: dark grey
Housing material: Polycarbonate; polyamide 6.6
Fire load: 0.697MJ
Weight: 51.3g
Conformity marking: CE
