Part Number: 750-454/000-003
Manufacturer Code: 750-454/000-003
Multiples of: 1 | Minimum Order: 1
2-channel analog input; 4 … 20 mA; Differential input; Extend. measurement range

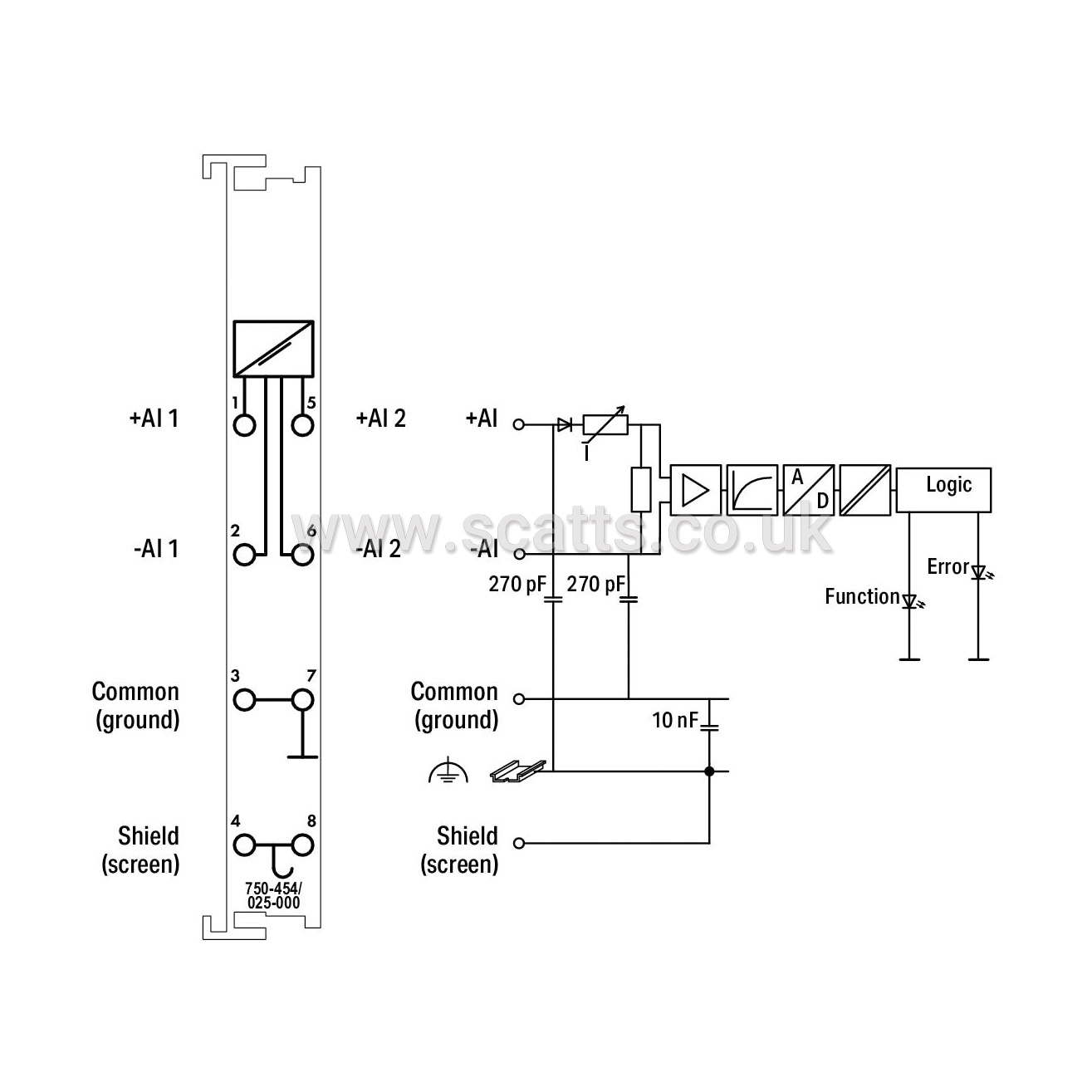

This analog input module processes standard 4–20 mA signals. The input signal is electrically isolated and is transmitted with a resolution of 12 bits. The internal system supply powers the module. The input channels of the module are differential inputs. The shield directly connects to the DIN-rail.
Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Current
Signal type: 3.8 … 20.5 mADC

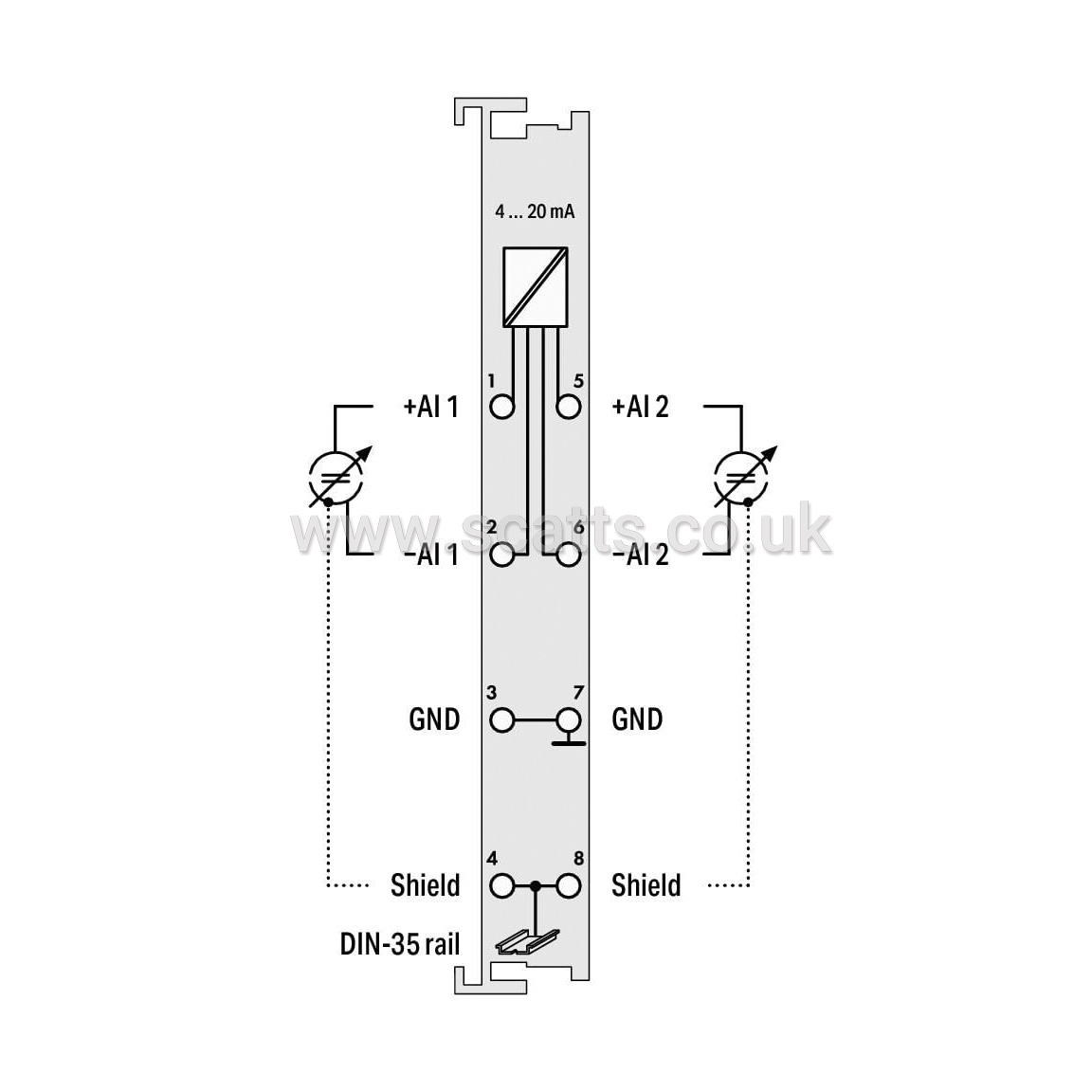

Sensor connection: 2 x (2-wire)
Input voltage (max.): 35 V
Signal characteristics: Differential
Resolution [bit]: 12Bit
Input resistance (max.): 220Ω
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Conversion time (typ.): 2ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.2%
Temperature error (max.) of the upper-range value: 0.01%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 70mA
Isolation: 500 V system/field

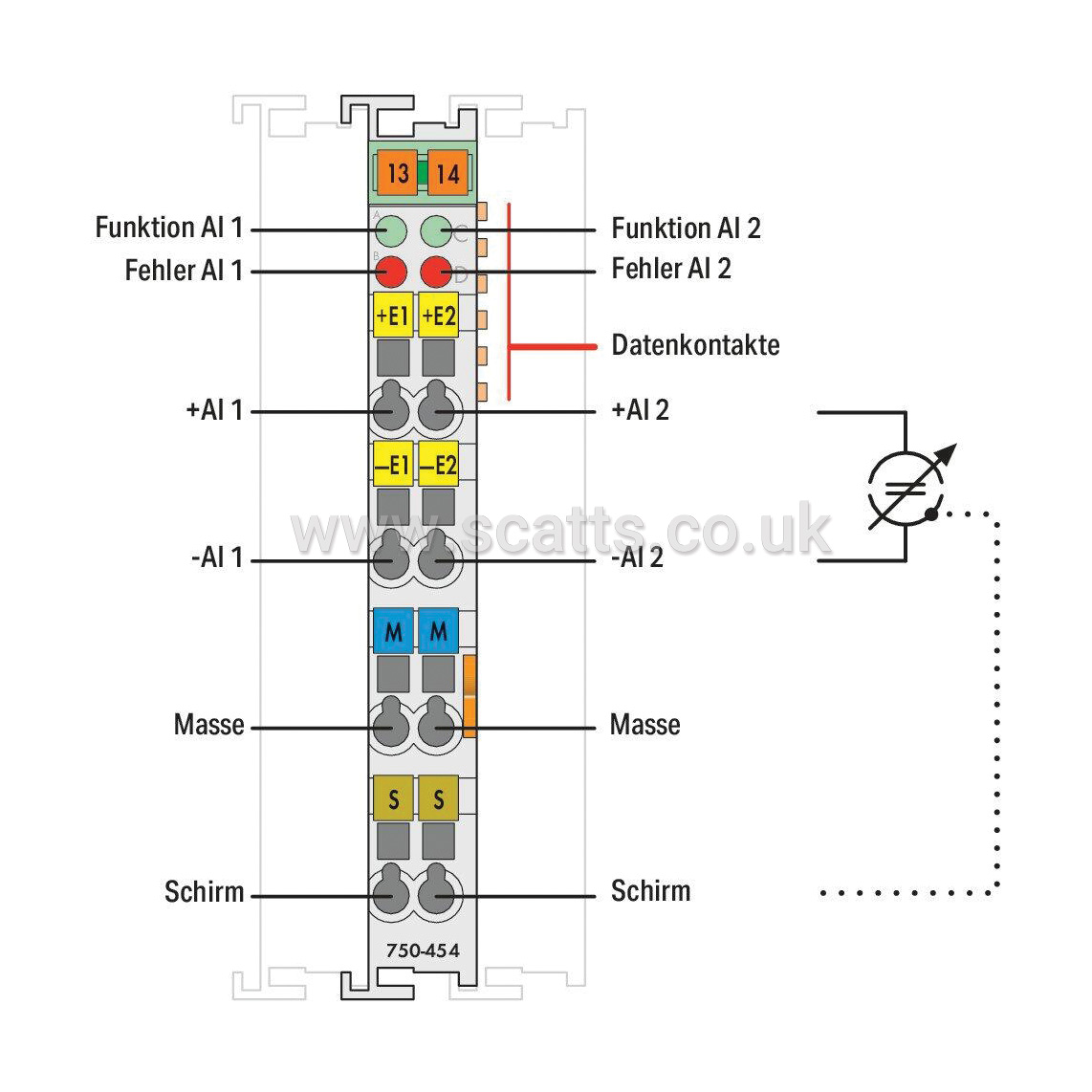

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
