4 CH AI/P 4-20MA S/END 12 BIT

4-channel analog input - 4-20 mA, Single-ended, 4 x 24 V


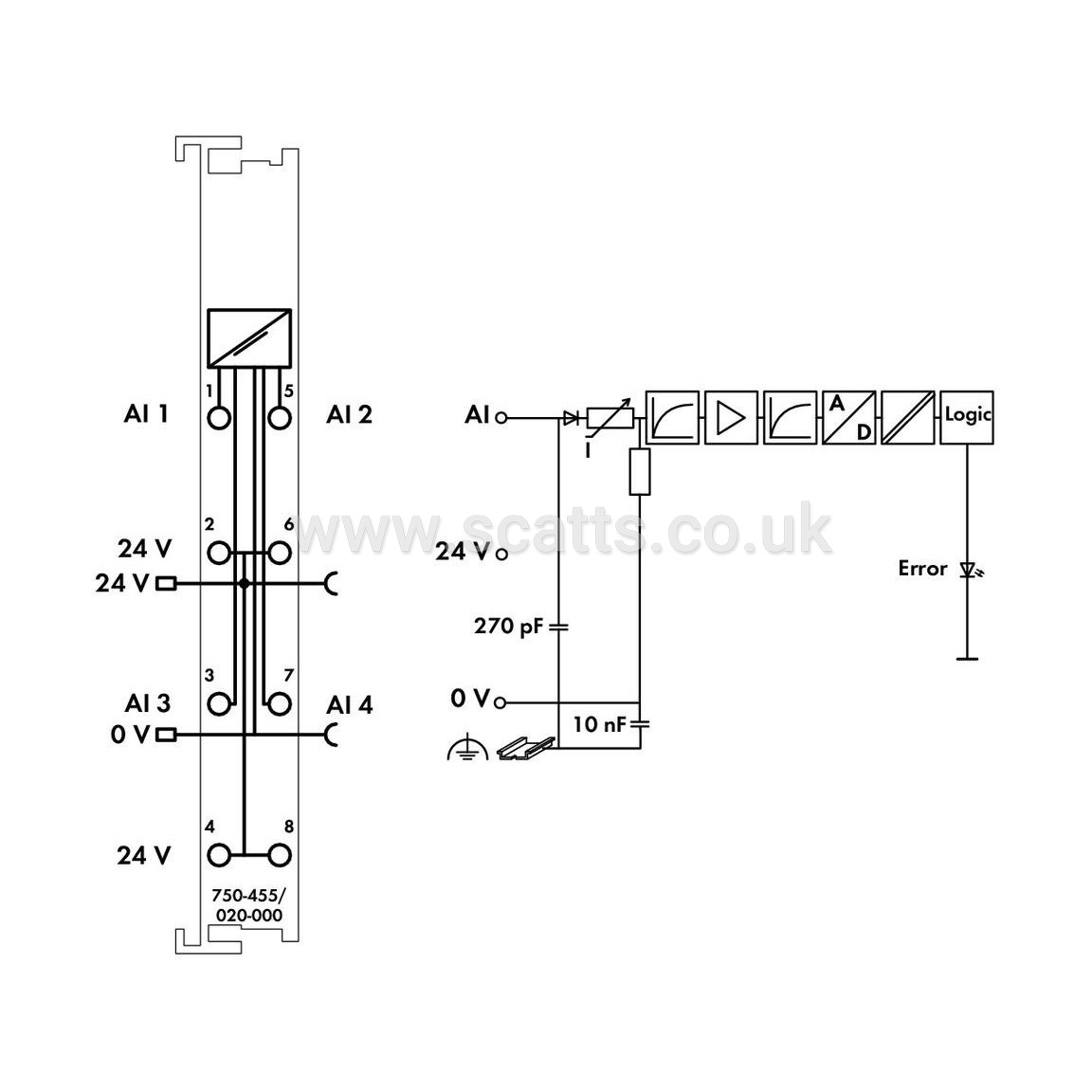

This analog input module processes standard 4–20 V signals. The input signal is electrically isolated and transmitted with a resolution of 12 bits.

The internal system supply powers the module. The input channels of the module have a common ground potential. The module provides a 24 V power supply for a direct connection to 2-wire sensors.

Number of analog inputs: 4
Total number of channels (module): 4
Signal type: Current
Signal type: 4 … 20 mADC

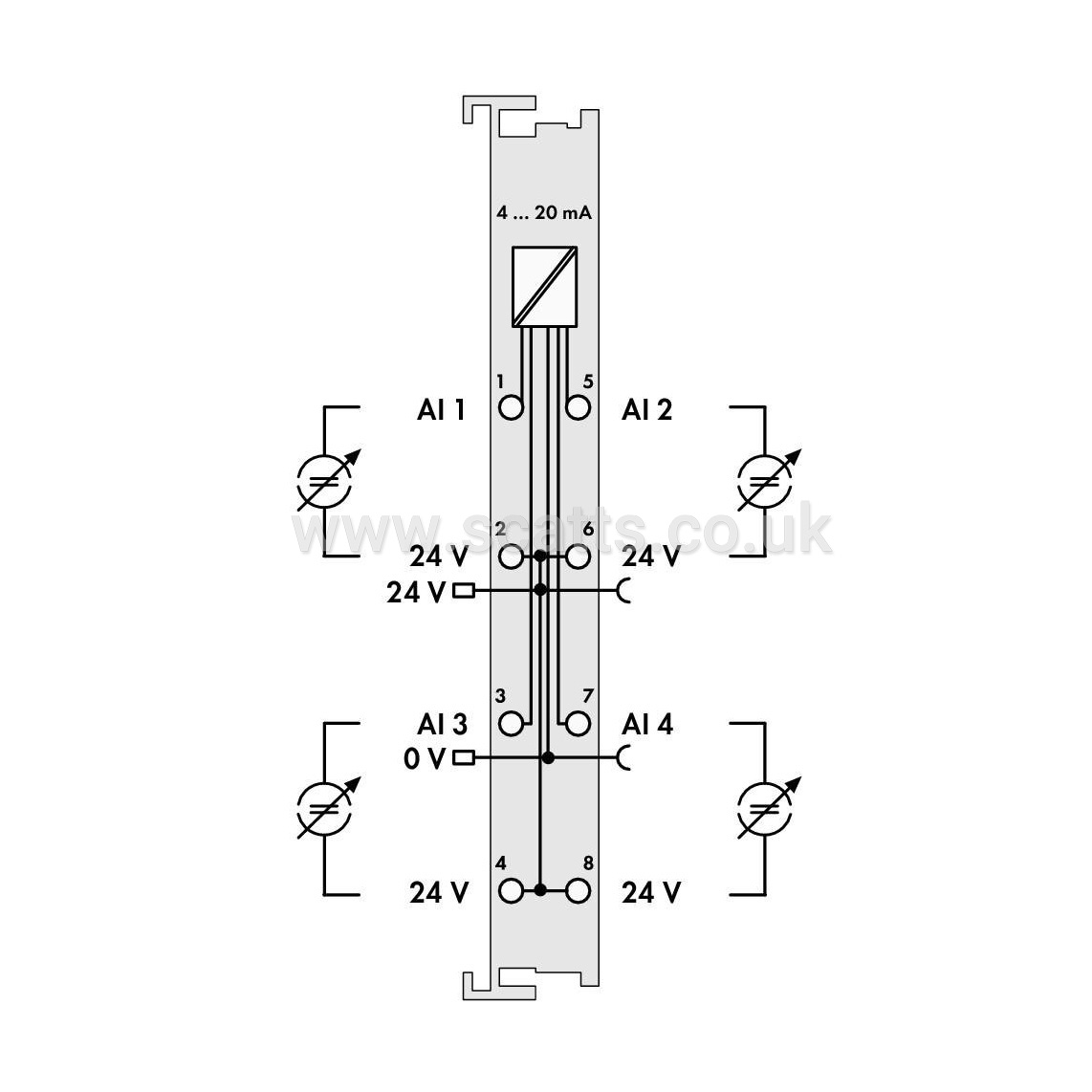

Sensor connection: 4 x (2-wire)
Input voltage (max.): 32 V
Signal characteristics: Single-ended
Resolution [bit]: 12Bit
Input resistance (max.): 100Ω
Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
Conversion time (typ.): 10ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.1%
Temperature error (max.) of the upper-range value: 0.01%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 65mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

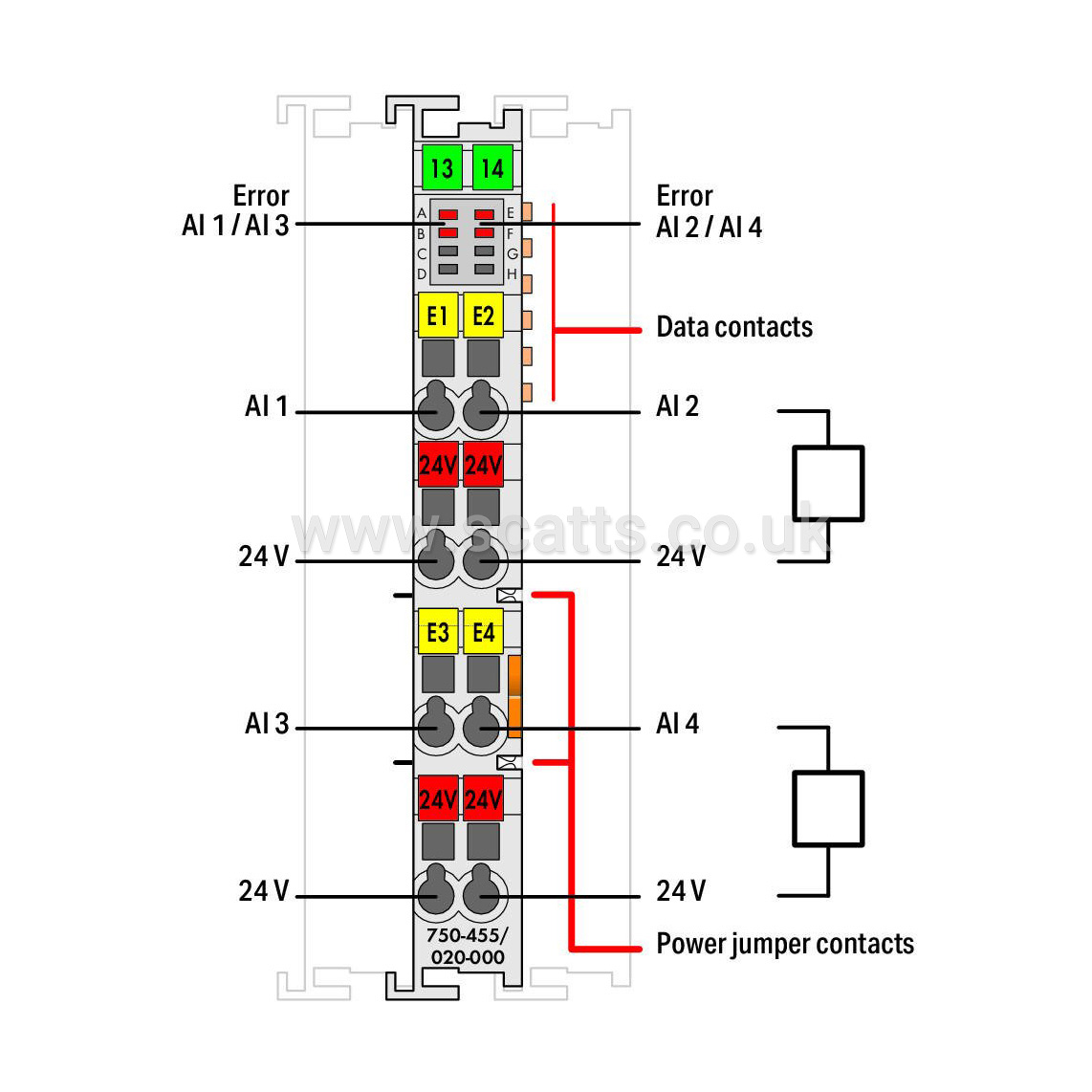

Indicators: LED (A-D) red: Error AI 1 … AI 4
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
