4 CH AN.I/P FOR PT100/RTD

4-channel analog input - For Pt100/RTD resistance sensors, light gray


This analog input module directly connects to Pt resistance sensors. Two-wire sensors can be connected.

The module automatically linearizes the entire temperature range. A sensor error (short circuit, line break or measurement range overflow) is indicated by a red LED.

Number of analog inputs: 4
Total number of channels (module): 4
Signal type: Resistance measurement

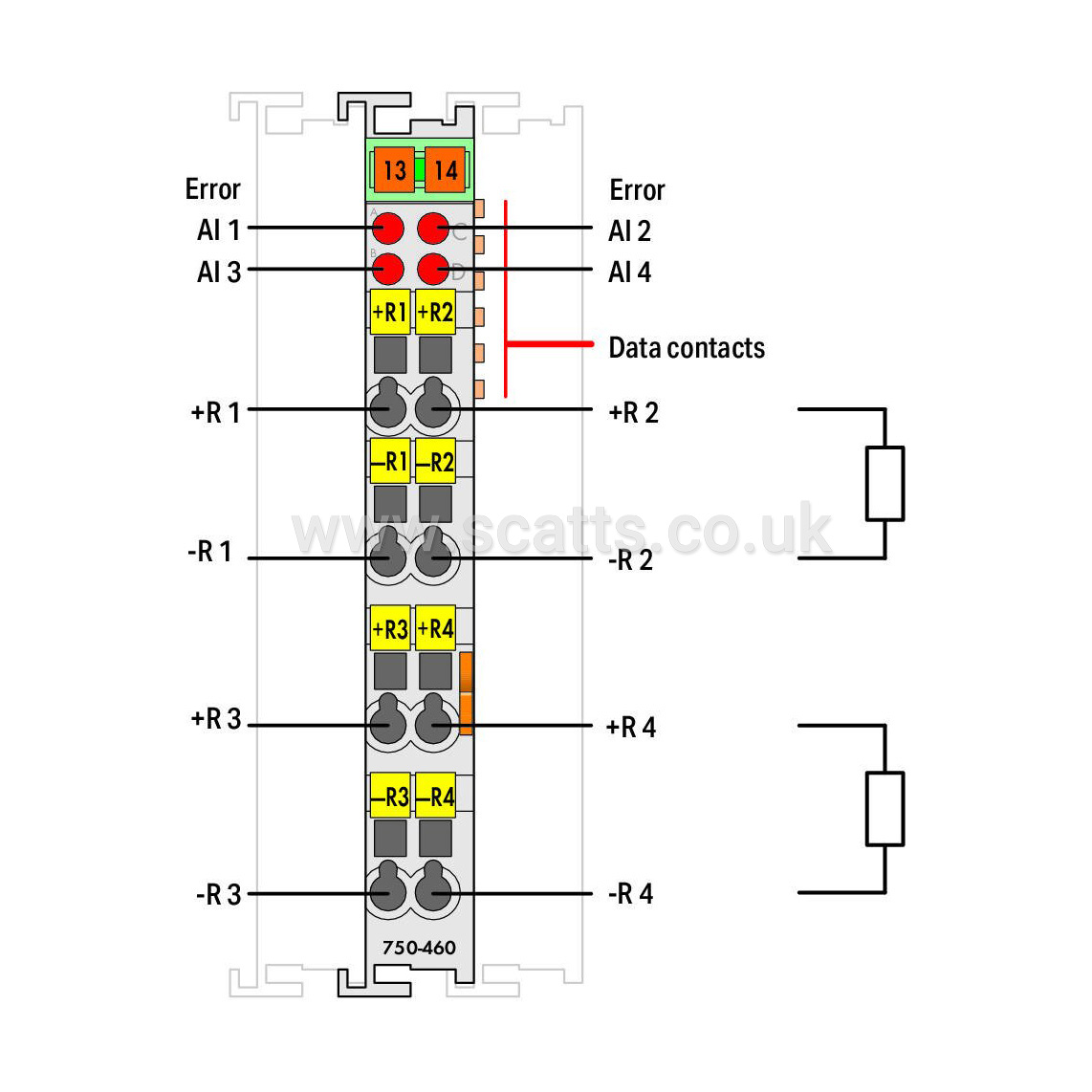

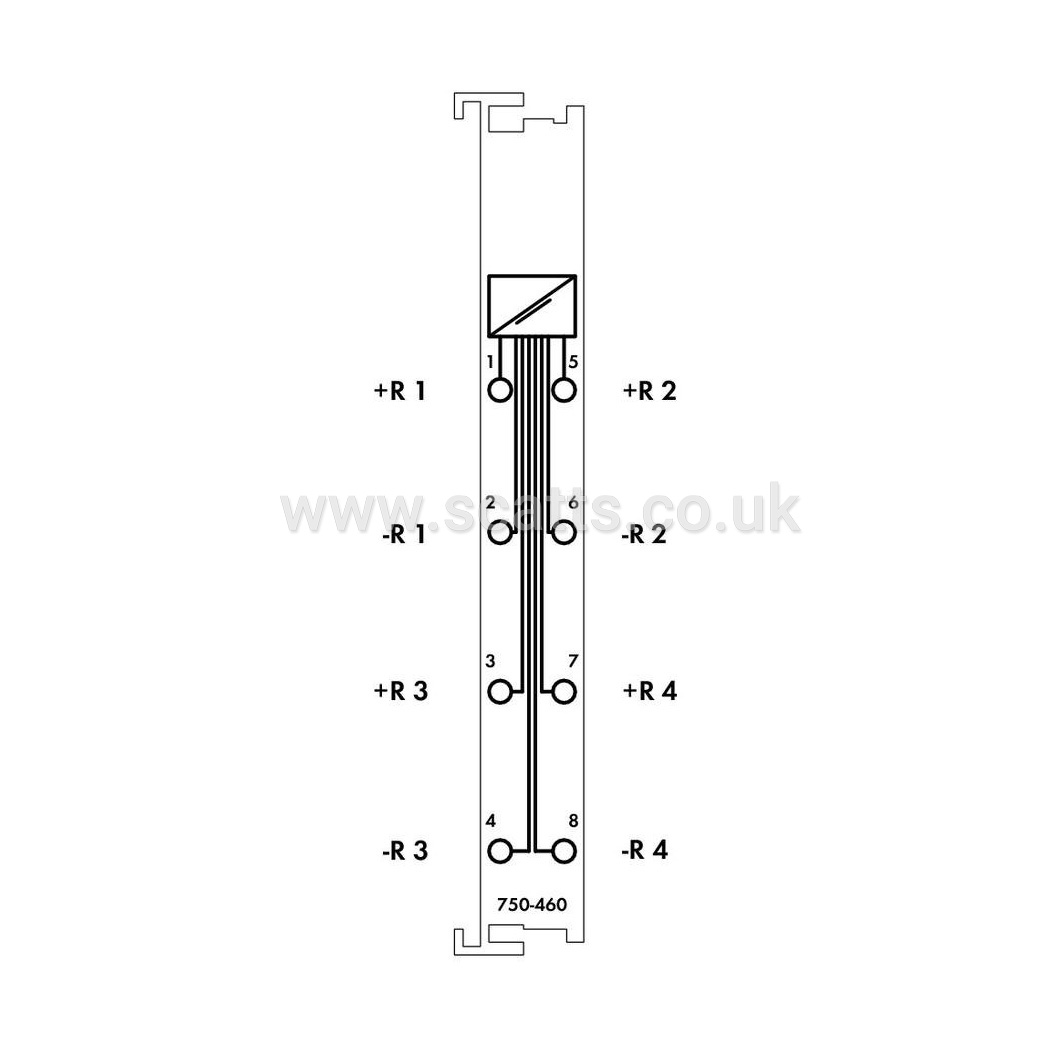

Sensor connection: 4 x (2-wire)
Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
Resolution: 0.1 °C
Conversion time (typ.): 250ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.2%
Temperature error (max.) of the upper-range value: 0.01%/K
Measuring current (typ.): 0.5 mA
Sensor types: Pt100
Temperature range: −200 … +850 °C
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 65mA
Isolation: 500 V system/field
Indicators: LED (A-D) red: Error AI 1 … AI 4
