2 CH RESISTANCE I/P 10-5000OHM

2-channel analog input - Resistance measurement: 10 … 5000 Ohm


Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Potentiometer positions

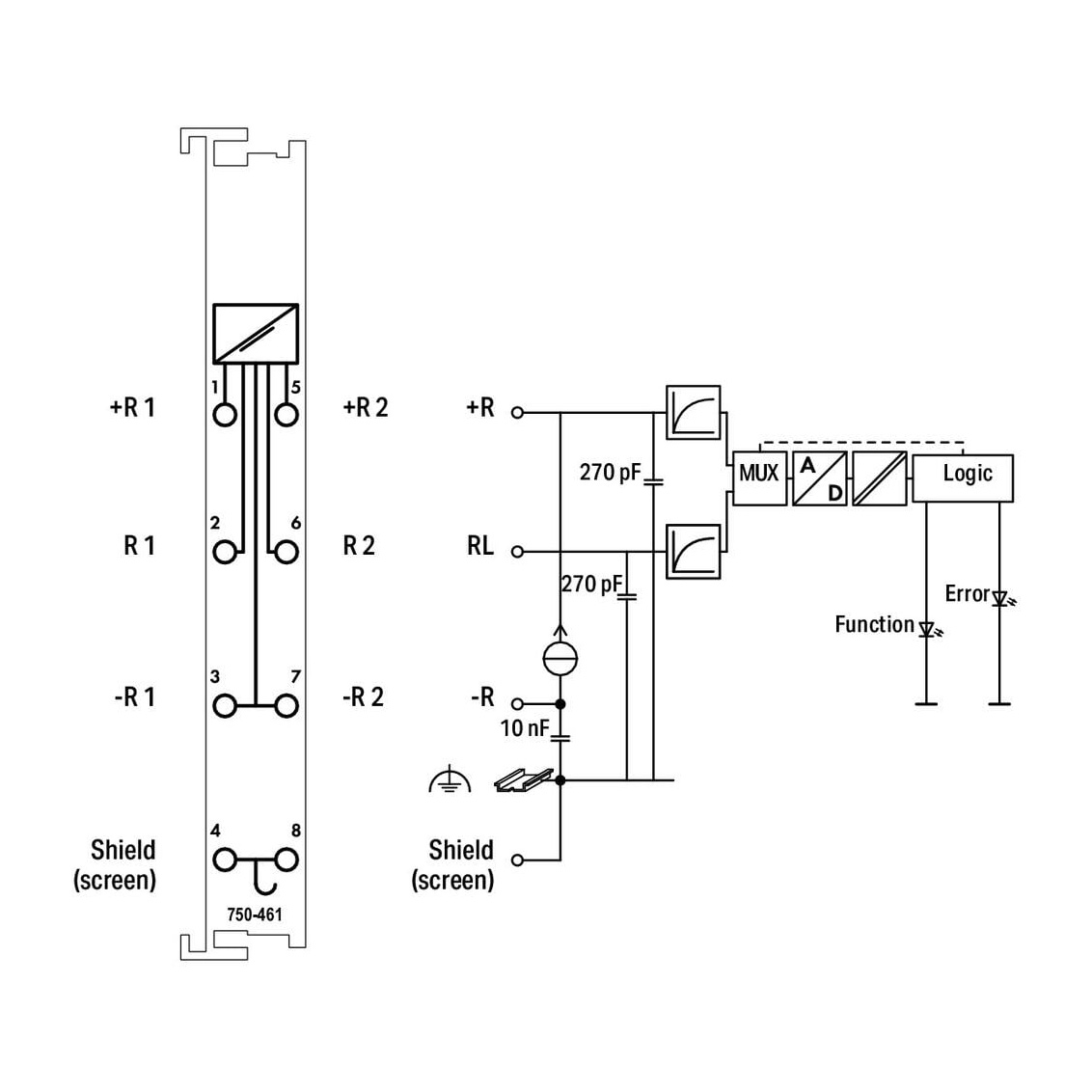

Sensor connection: 2 x (2-wire)
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Resolution (over entire range): 0.5 Ohm
Conversion time (typ.): 320ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.2%
Temperature error (max.) of the upper-range value: 0.01%/K
Measuring current (typ.): 0.5 mA
Response time (max.): 4s
Sensor types: 10R … 5k0
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 80mA
Isolation: 500 V system/field

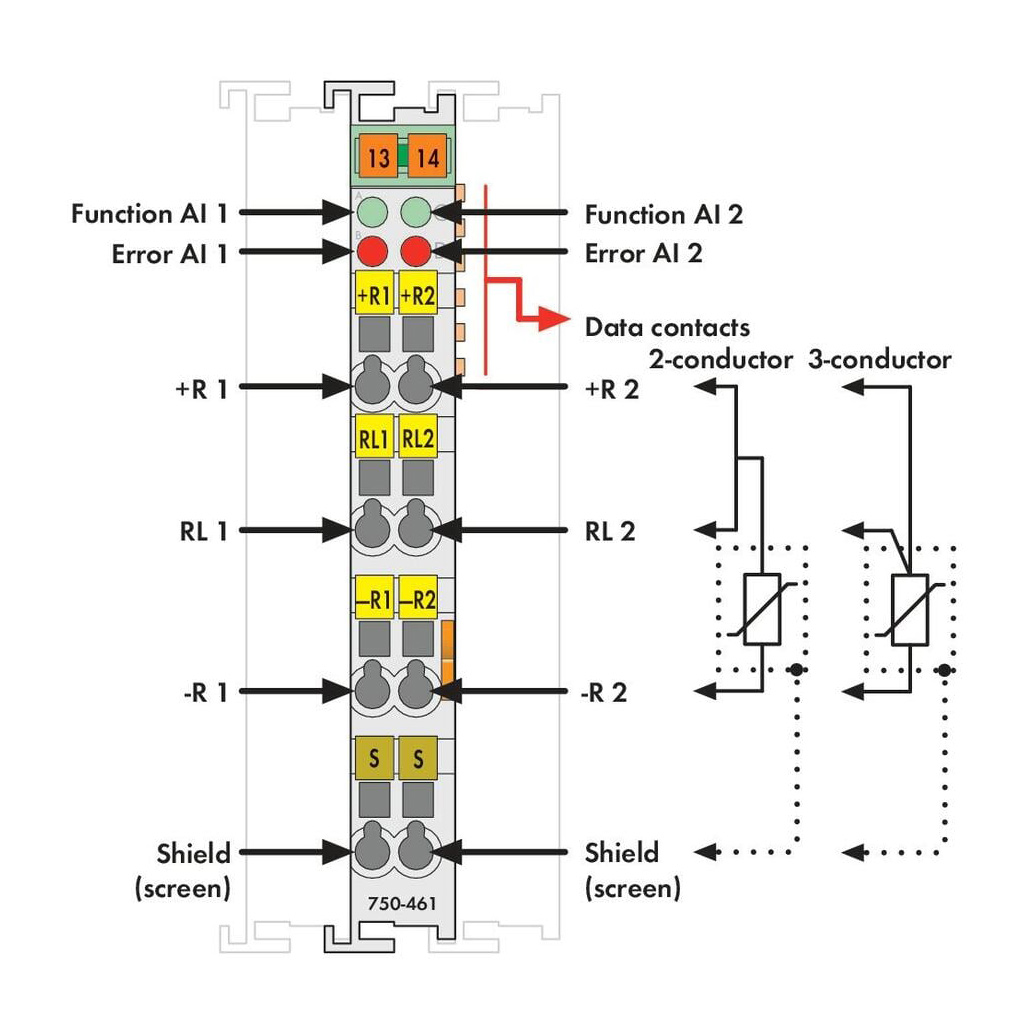

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2

Connection technology: inputs/outputs: 8 x CAGE CLAMP®
Connectable conductor materials: Copper
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69.8 mm / 2.748 inches
Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches

Mounting type: DIN-35 rail

Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Fire load: 1MJ
Weight: 51g
Conformity marking: CE
