My Part Number:
Part Number: 750-461/025-000
Manufacturer Code: 750-461/025-000
Multiples of: 1 | Minimum Order: 1
2-channel analog input - For Pt100/RTD resistance sensors, Adjustable, Ext. Temperature

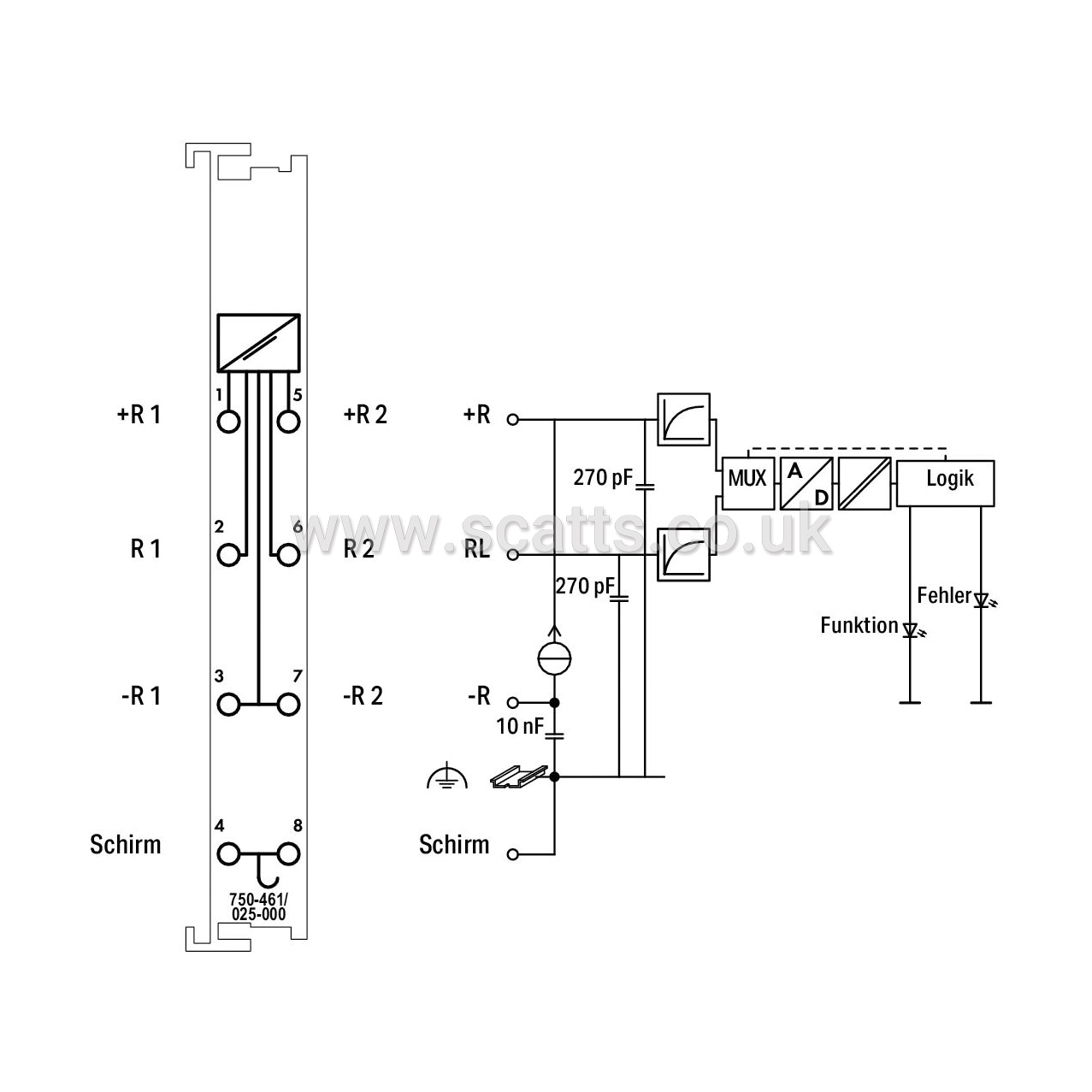

This analog input module directly connects to Pt resistance sensors. Two- or three-wire sensors can be connected.
The module automatically linearizes the entire temperature range. A sensor error (short circuit, line break or measurement range overflow) is indicated by a red LED. A green LED indicates readiness for operation and error-free communication with the coupler. The shield directly connects to the DIN-rail.
Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Resistance measurement

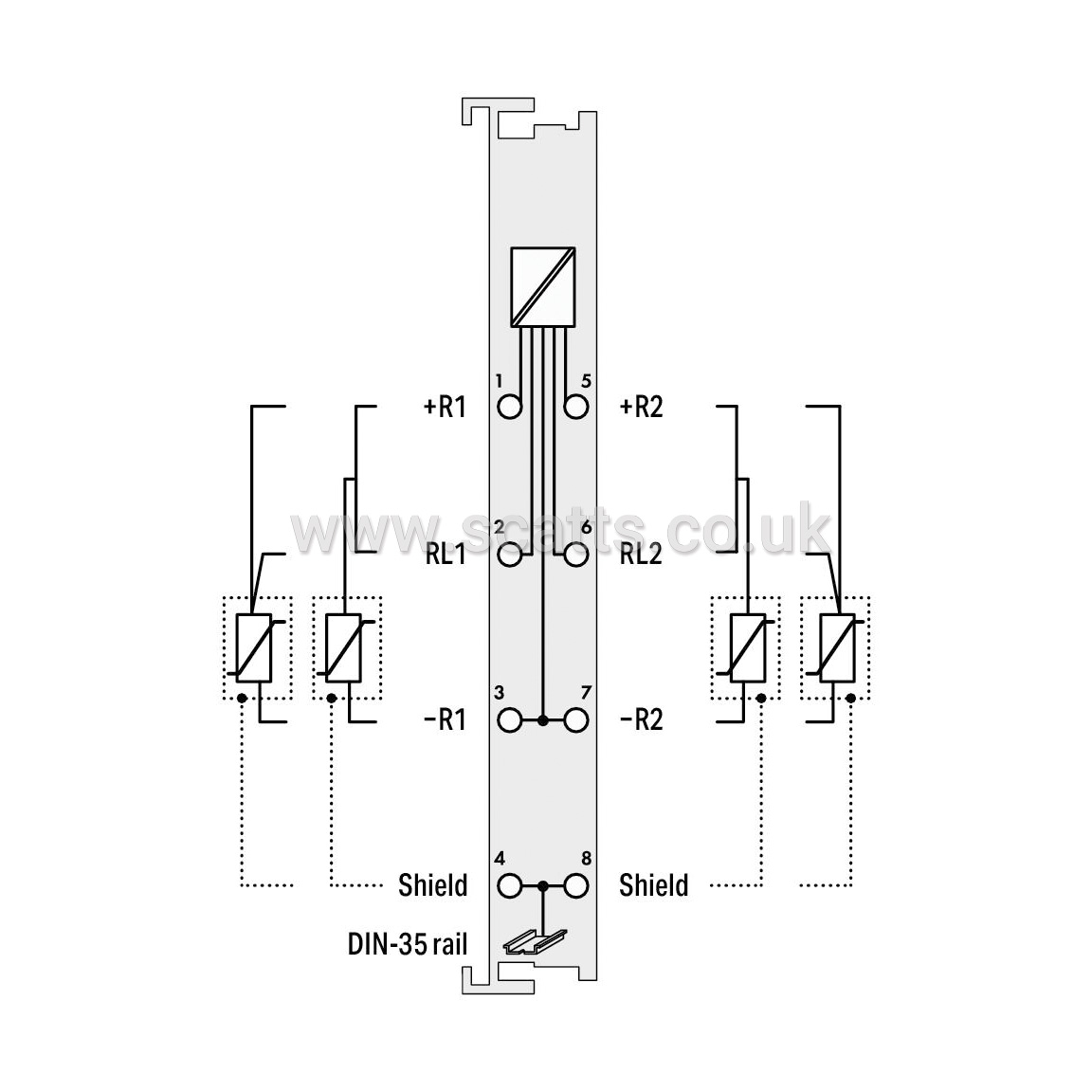

Sensor connection: 2 x (2-wire, 3-wire)
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Resolution: 0.1 °C
Conversion time (typ.): 320ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.2%
Temperature error (max.) of the upper-range value: 0.01%/K
Measuring current (typ.): 0.5 mA
Response time (max.): 4s
Sensor types: Pt100
Temperature range: −200 … +850 °C
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 80mA
Isolation: 500 V system/field
Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
Brand |
WAGO |
|
£342.31
per 1 (ex. VAT)£410.77
per 1 (inc. VAT)
