2 CH AI/P 4-20MA S/END

2-channel analog input - 4-20 mA, Single-ended, light gray

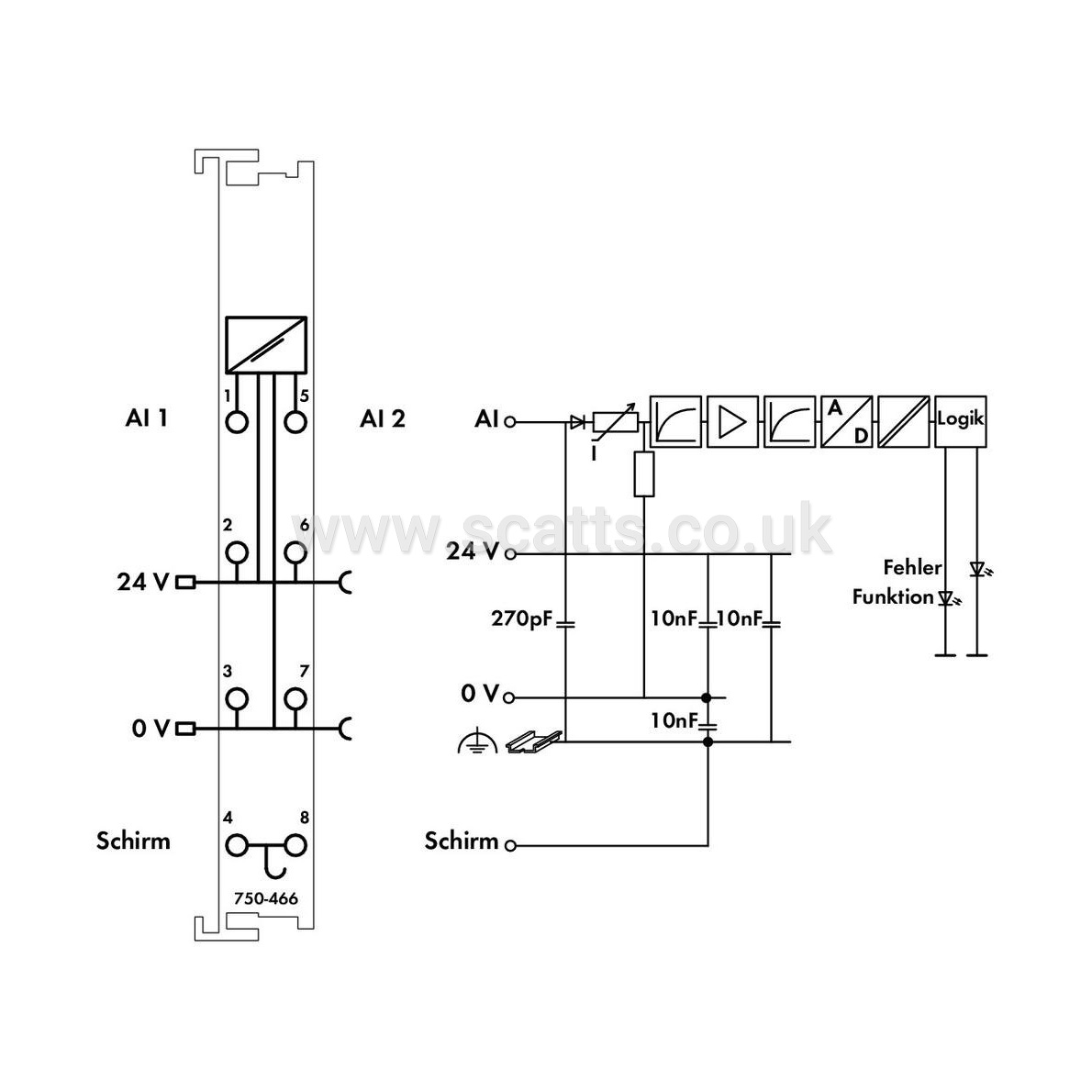

This analog input module powers field-side signal conditioners and transmits electrically isolated analog signals to the bus system. The 24 V field supply is derived from the module's power jumper contacts.

The shield directly connects to the DIN-rail. This module powers 2-wire signal conditioners without dedicated power supply.

Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Current
Signal type: 4 … 20 mADC

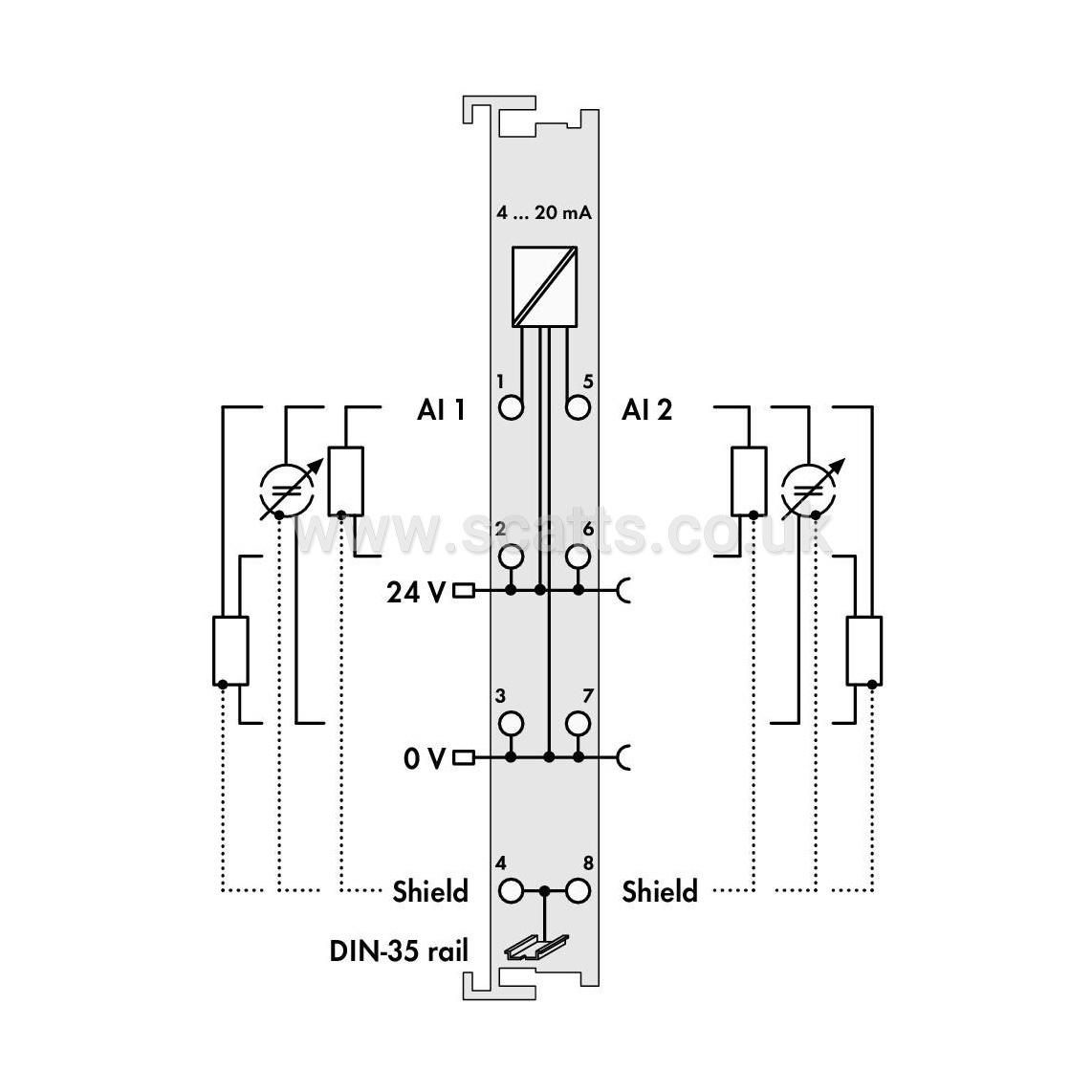

Sensor connection: 2 x (2-wire, 3-wire)
Input voltage (max.): 10 V
Signal characteristics: Single-ended
Resolution [bit]: 12Bit
Input resistance (max.): 220Ω
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Conversion time (typ.): 2ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.2%
Temperature error (max.) of the upper-range value: 0.01%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 75mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

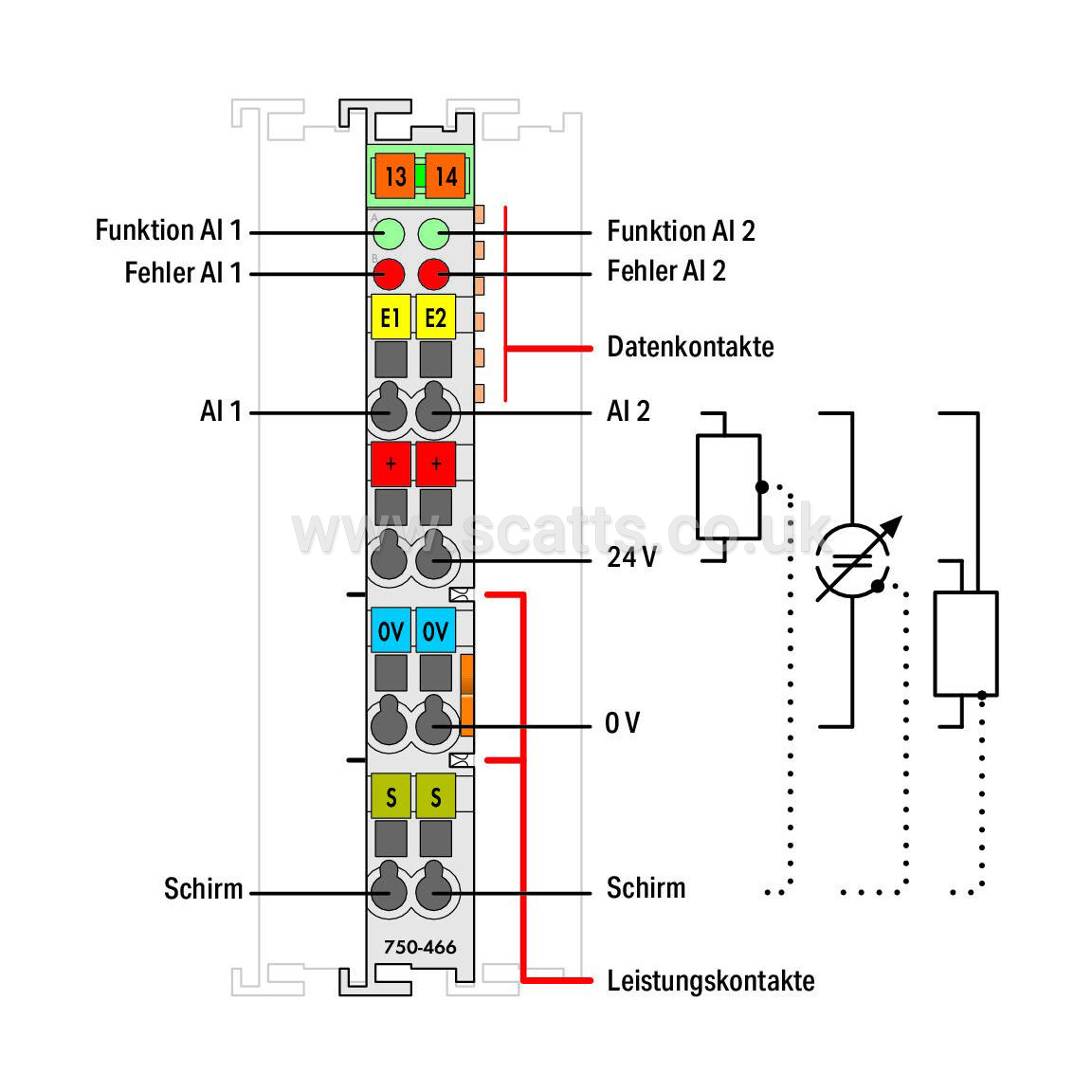

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
