2 CH AI/P 0-10V DC S/END

2-channel analog input - 0-10 VDC, Single-ended, light gray

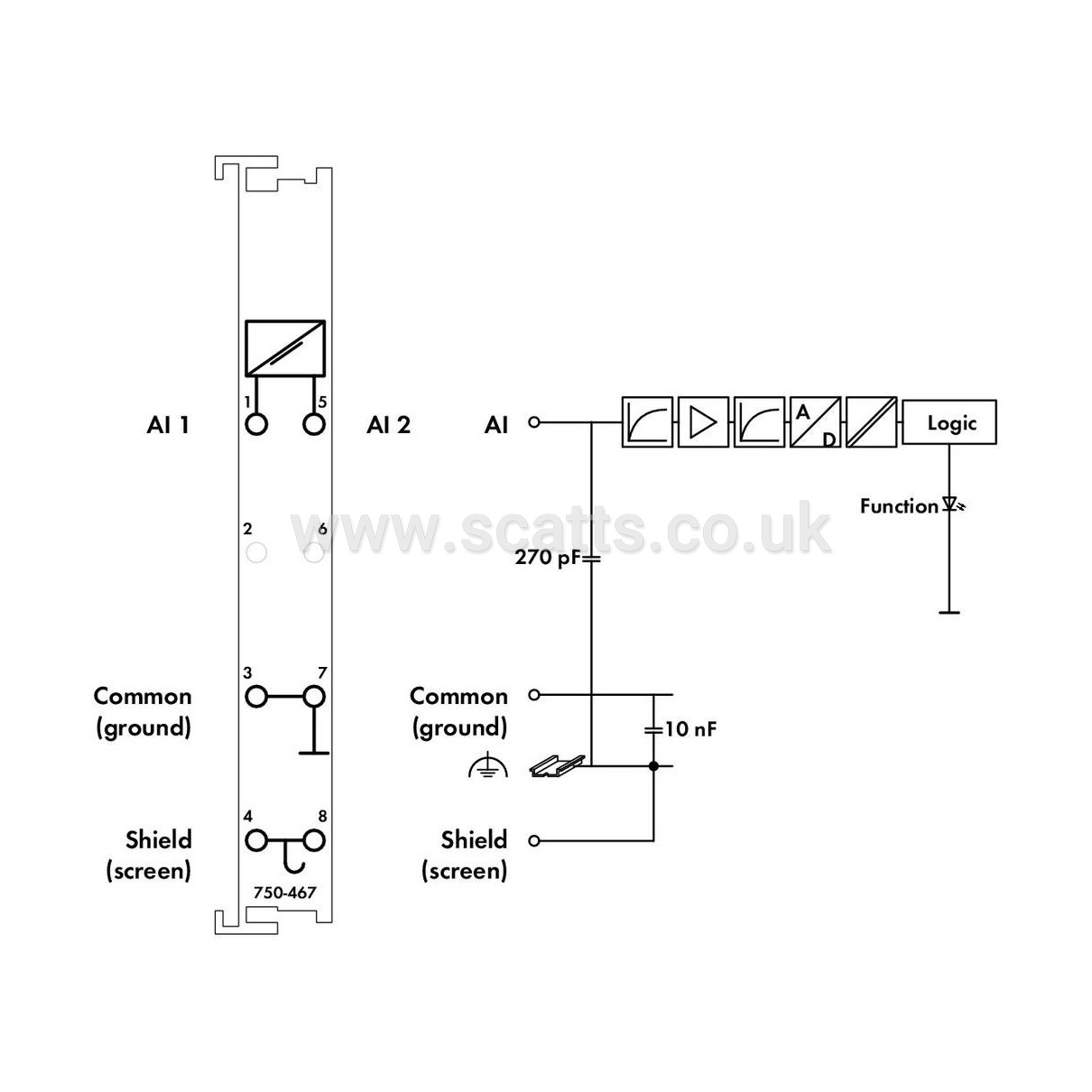

This analog input module processes standard 0–10 V signals. The input signal is electrically isolated and transmitted with a resolution of 12 bits.
The internal system supply powers the module. The input channels of the module have a common ground potential. The shield directly connects to the DIN-rail.

Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Voltage
Signal type: 0 … 10 VDC

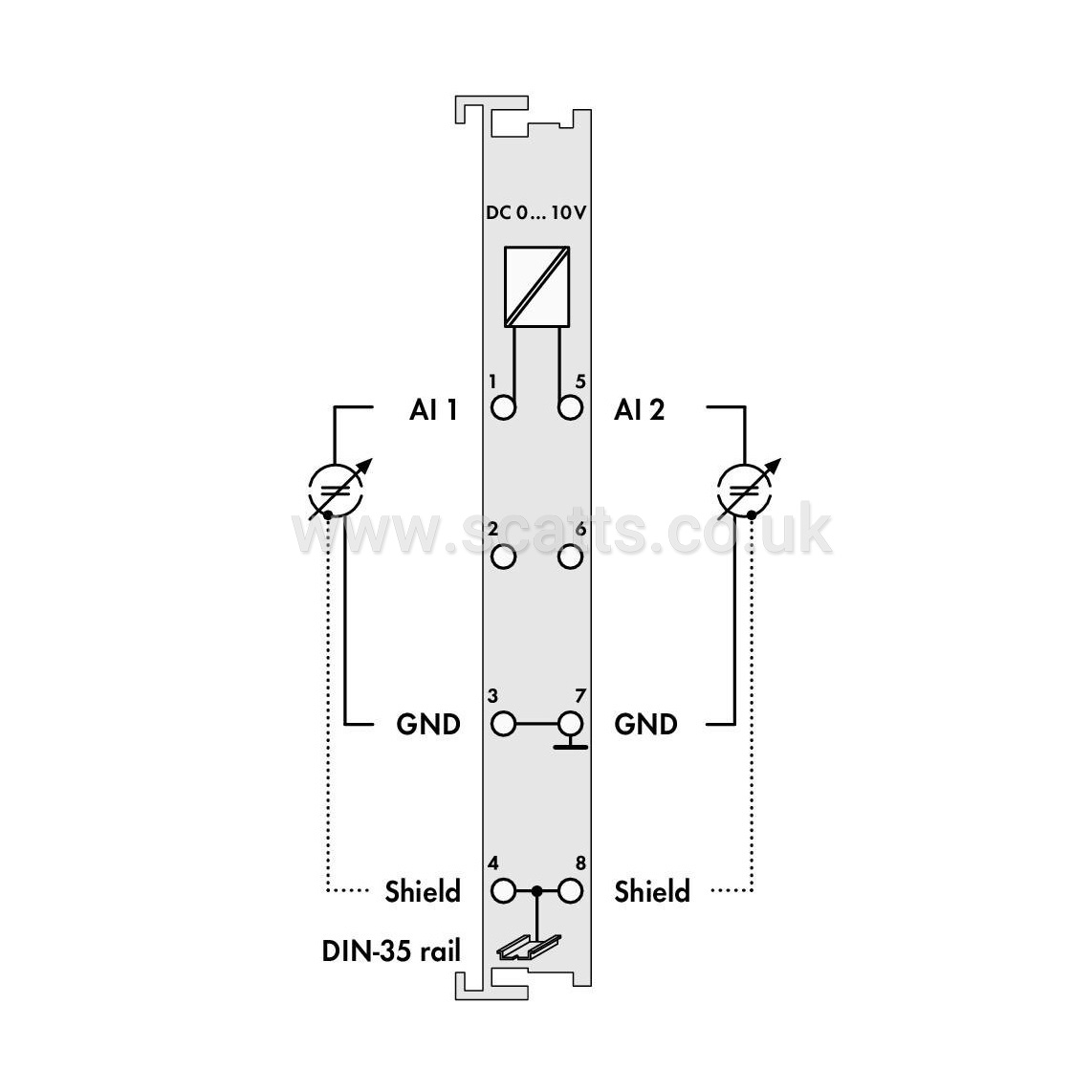

Sensor connection: 2 x (2-wire)
Input voltage (max.): 35 V
Signal characteristics: Single-ended
Resolution [bit]: 12Bit
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Internal resistance: 130kΩ
Conversion time (typ.): 2ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.2%
Temperature error (max.) of the upper-range value: 0.01%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 60mA
Isolation: 500 V system/field

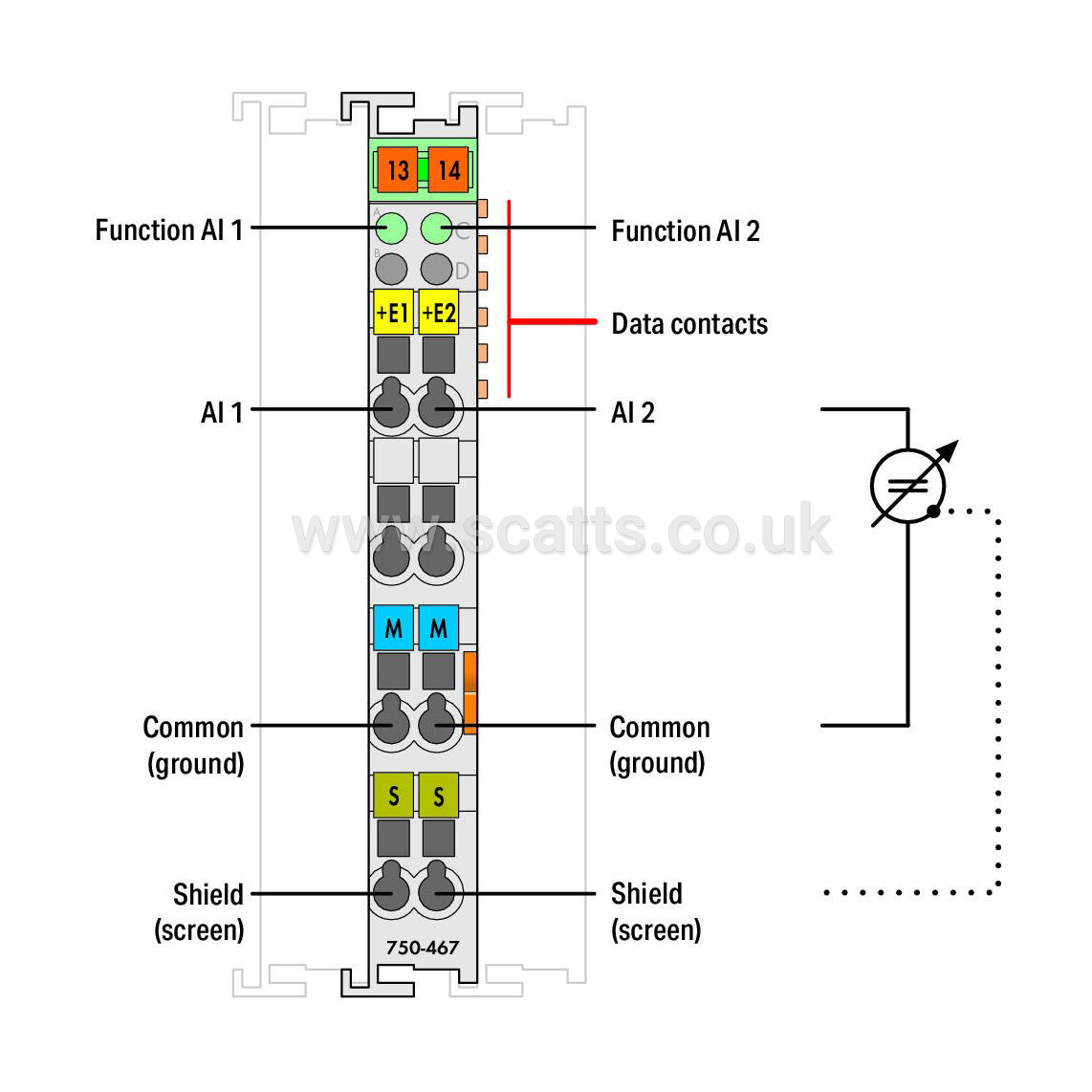

Indicators: LED (A, C) green: Function AI 1, AI 2
