4-CHANNEL ANALOG INPUT; 0 ... 10 VDC; SINGLE-ENDED; LIGHT GRAY

4-channel analog input - 0 ... 10 VDC, Single-ended

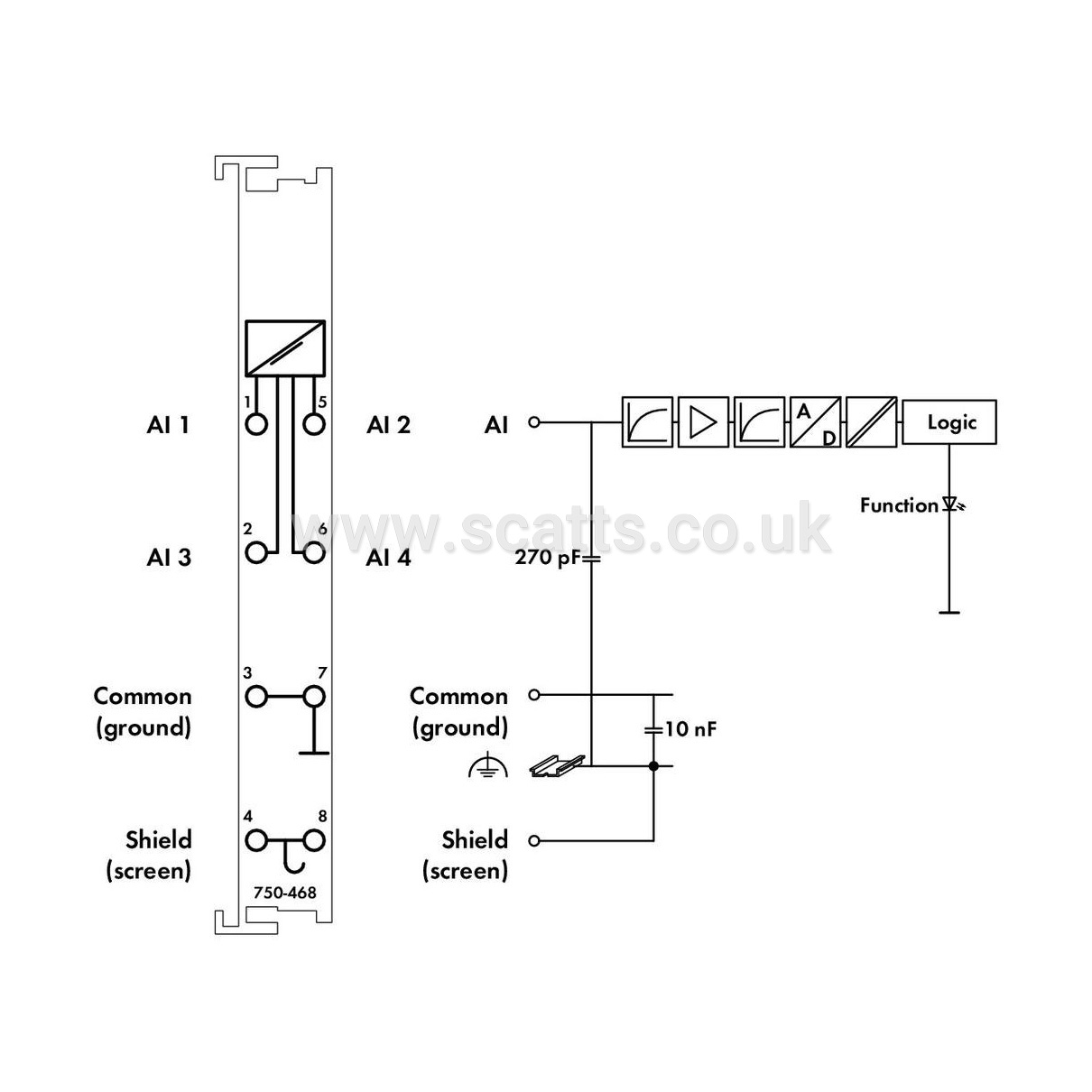

This analog input module processes standard 0–10 V signals. The input signal is electrically isolated and transmitted with a resolution of 12 bits.

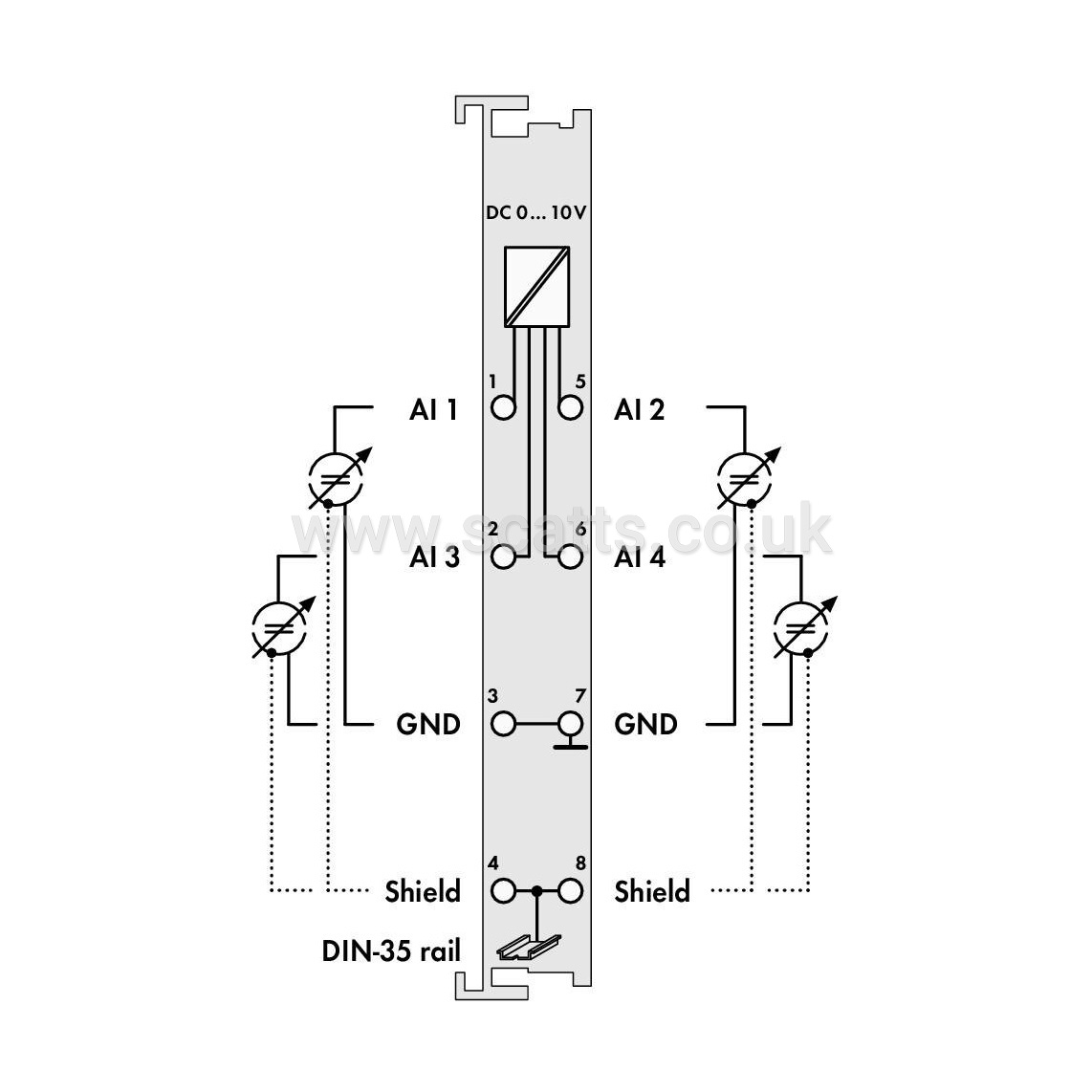

The internal system supply powers the module. The input channels of the module have a common ground potential. The shield directly connects to the DIN-rail.

Number of analog inputs: 4
Total number of channels (module): 4
Signal type: Voltage
Signal type: 0 … 10 VDC

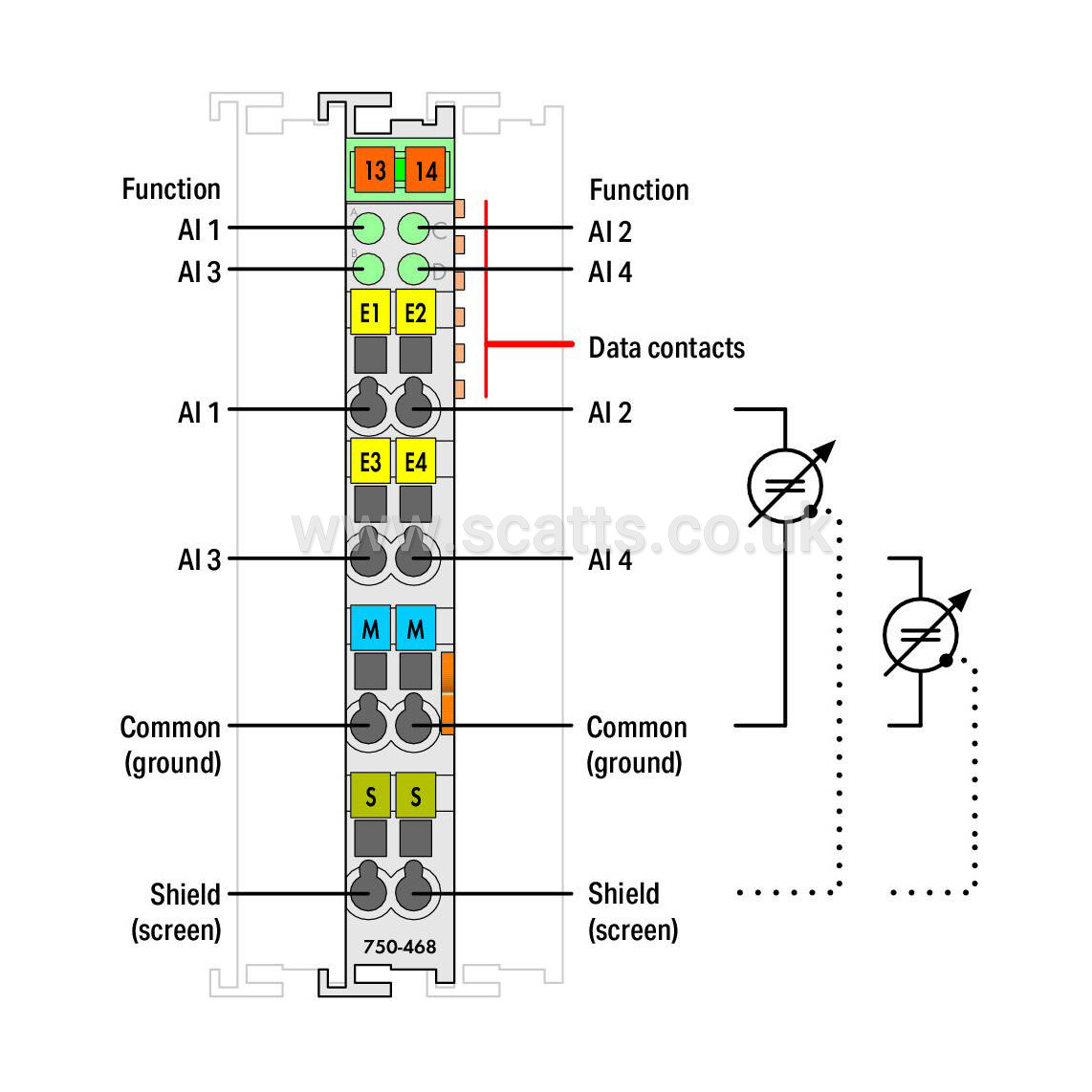

Sensor connection: 4 x (2-wire)
Input voltage (max.): 35 V
Signal characteristics: Single-ended
Resolution [bit]: 12Bit
Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
Internal resistance: 133kΩ
Conversion time (typ.): 4ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.2%
Temperature error (max.) of the upper-range value: 0.01%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 60mA
Isolation: 500 V system/field
Indicators: LED (A-D) green: Function AI 1 … AI 4
