My Part Number:
Part Number: 750-469/000-006
Manufacturer Code: 750-469/000-006
Multiples of: 1 | Minimum Order: 1

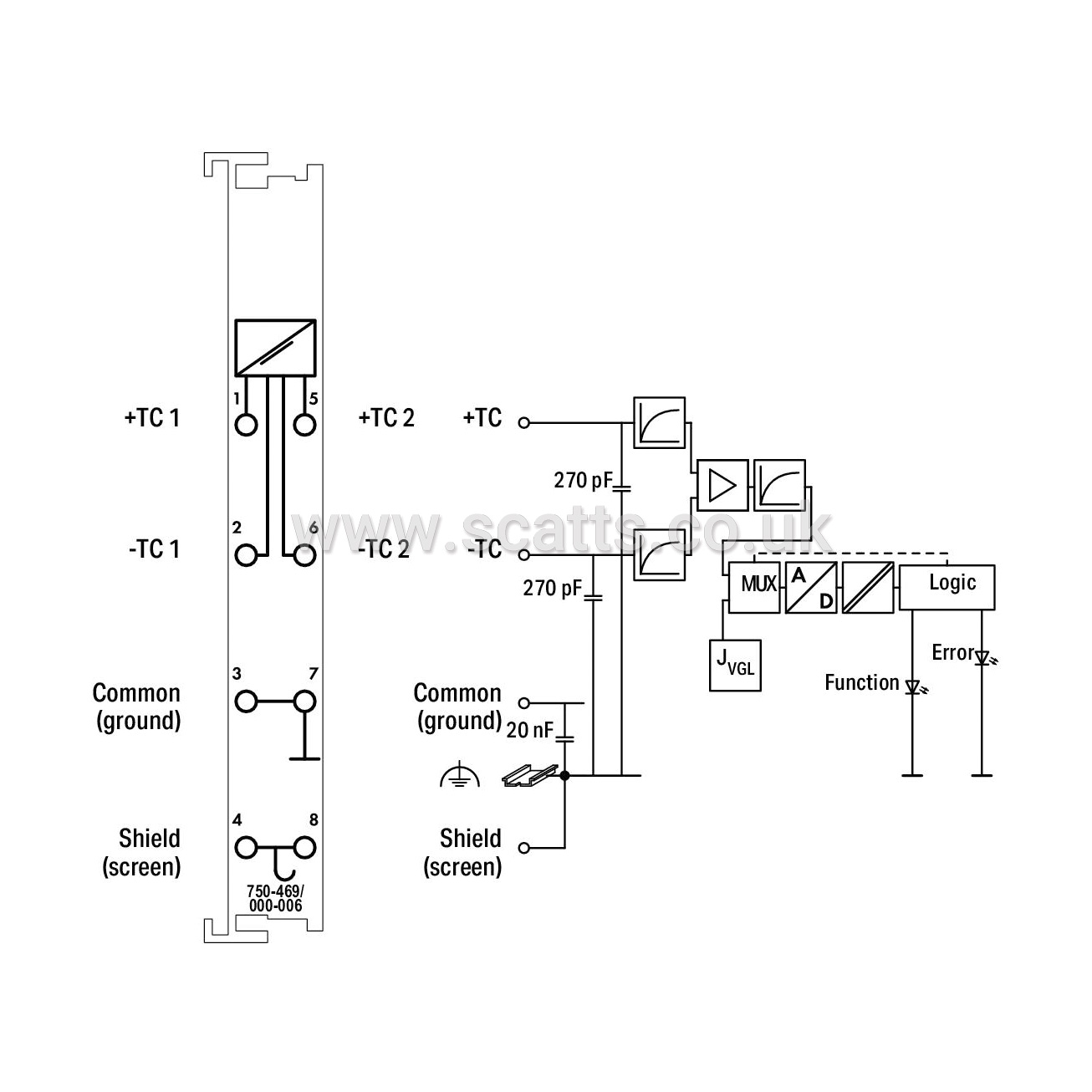

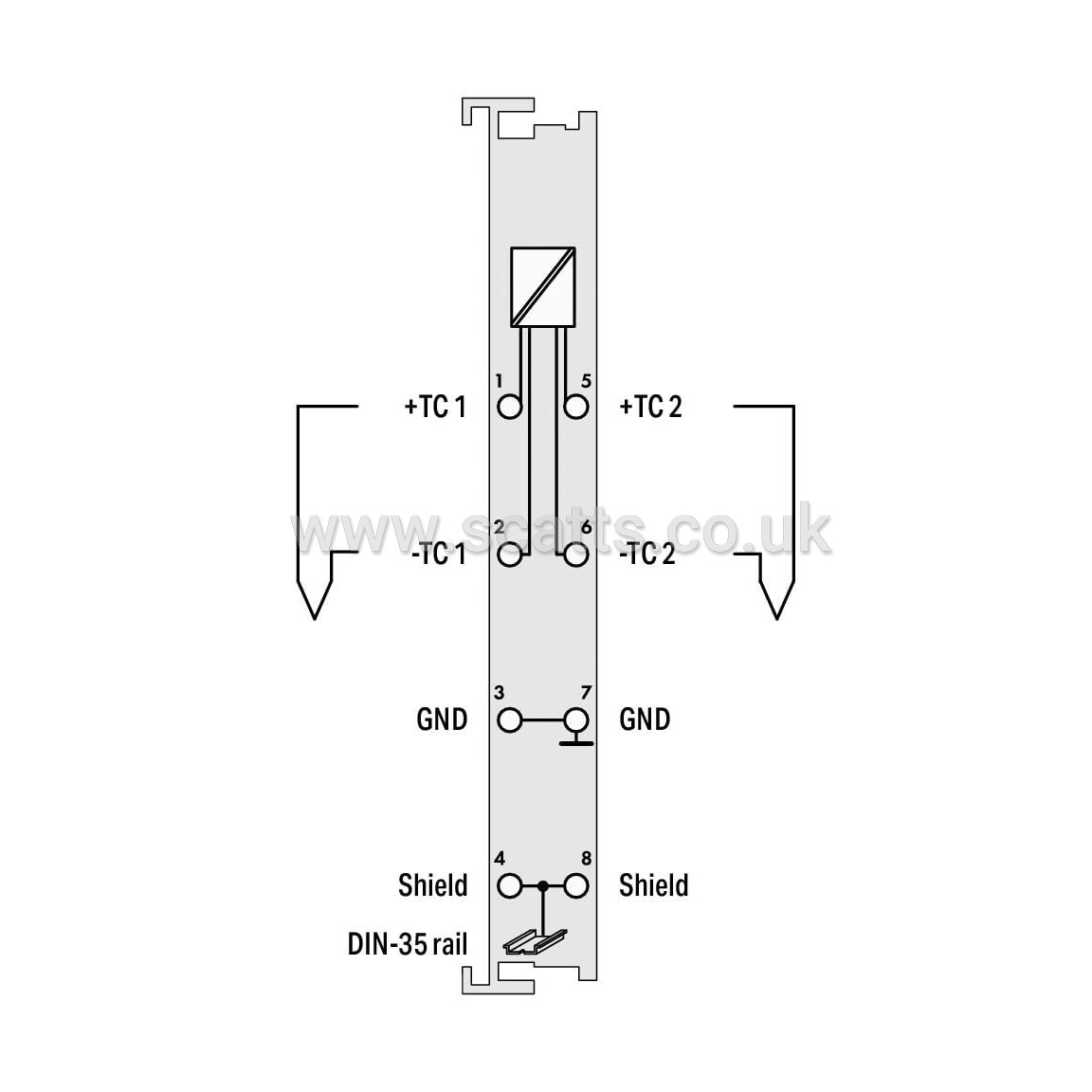

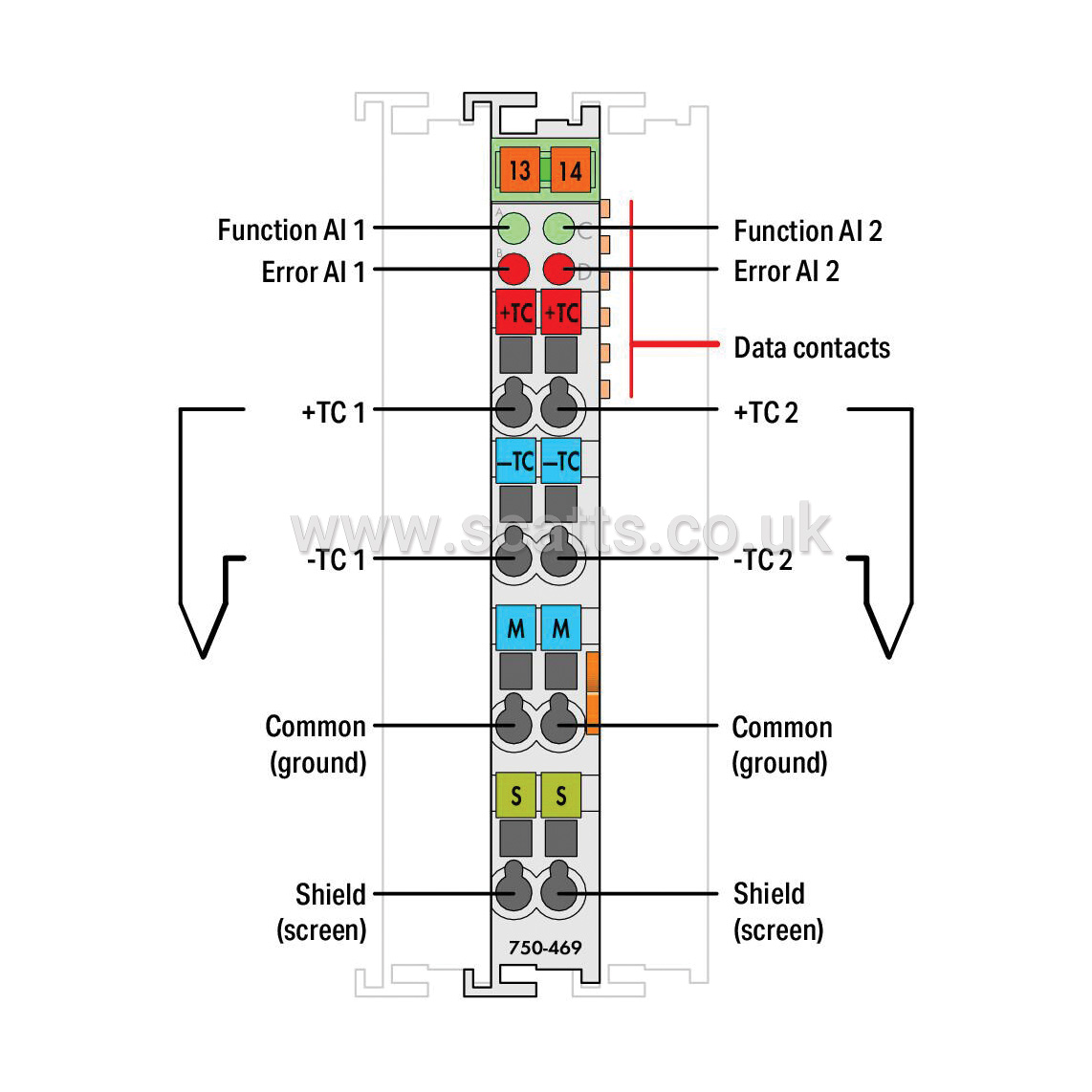

2-channel analog input; Thermocouple J; Diagnostics
This analog input module directly connects to two thermocouples. Internal electrical isolation allows operation of grounded sensors.
The module automatically linearizes the entire temperature range.
Cold junction compensation mitigates the clamping unit offset voltage over the 0–55°C operating range.
A line break is indicated by a red LED. A green LED indicates readiness for operation and error-free communication with the coupler.
The shield directly connects to the DIN-rail.
Brand |
WAGO |
|
£293.87
per 1 (ex. VAT)£352.64
per 1 (inc. VAT)
2-channel analog input; Thermocouple J; Diagnostics
This analog input module directly connects to two thermocouples. Internal electrical isolation allows operation of grounded sensors.
The module automatically linearizes the entire temperature range.
Cold junction compensation mitigates the clamping unit offset voltage over the 0–55°C operating range.
A line break is indicated by a red LED. A green LED indicates readiness for operation and error-free communication with the coupler.
The shield directly connects to the DIN-rail.
Brand |
WAGO |
|
