2 CH AI/P THERMOCOUPLE K

2-channel analog input - Thermocouple K, Diagnostics, adjustable


Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Thermocouple, Low voltages
Signal type (configurable): yes

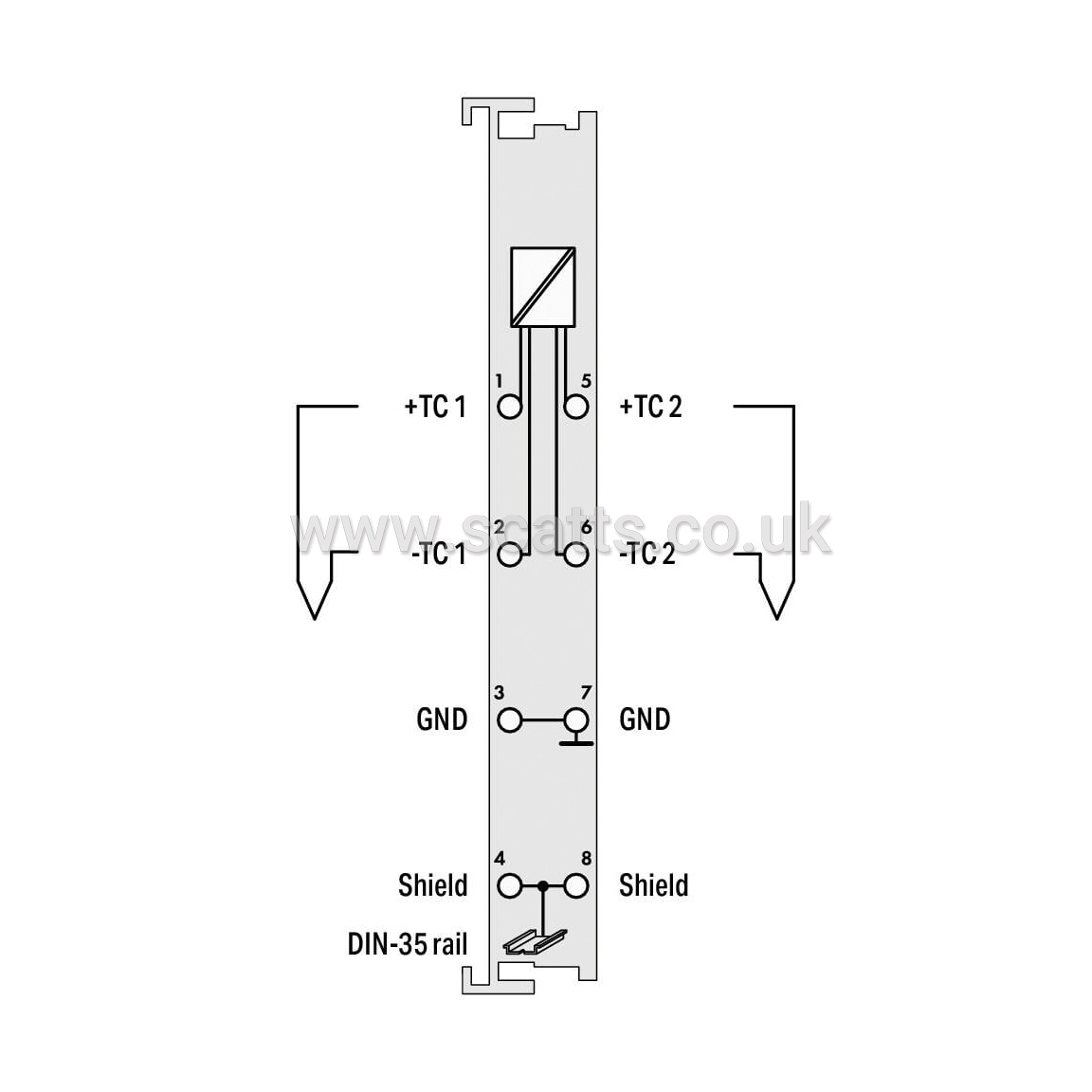

Sensor connection: 2 x (2-wire)
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Internal resistance: 1000kΩ
Resolution (over entire range): 0.1 °C
Conversion time (typ.): 320ms
Measurement error (25 °C): < ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K)
Temperature coefficient: < ±0.2 K/K
Sensor types: Thermocouple K; Configurable: L, J, E, T, N, U, B, R, S, mV
Temperature range: Sensor-specific

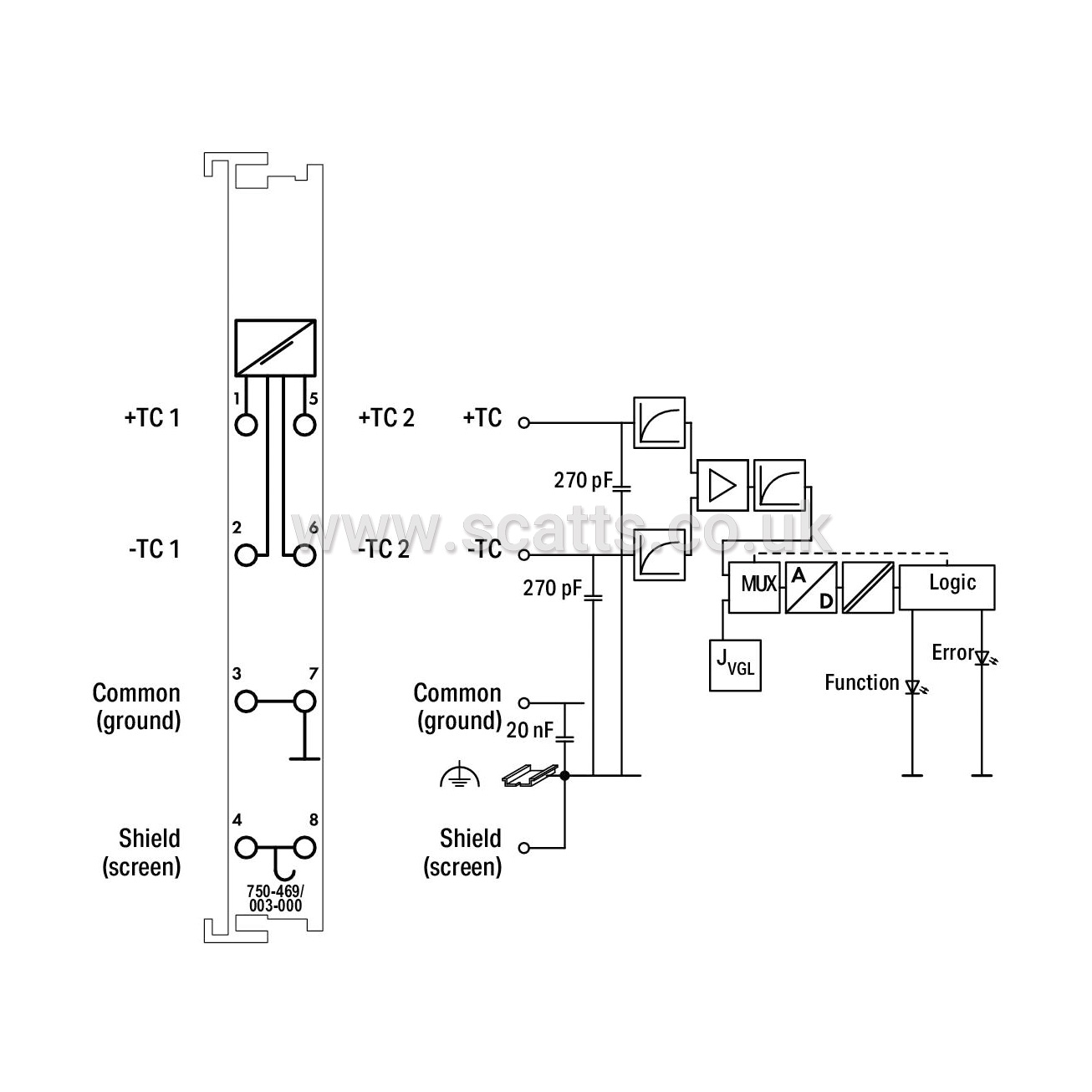

Cold junction compensation: at each pair of terminal blocks
Configuration options: WAGO-I/O-CHECK, CODESYS Library, e!COCKPIT
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 65mA
Isolation: 500 V system/field

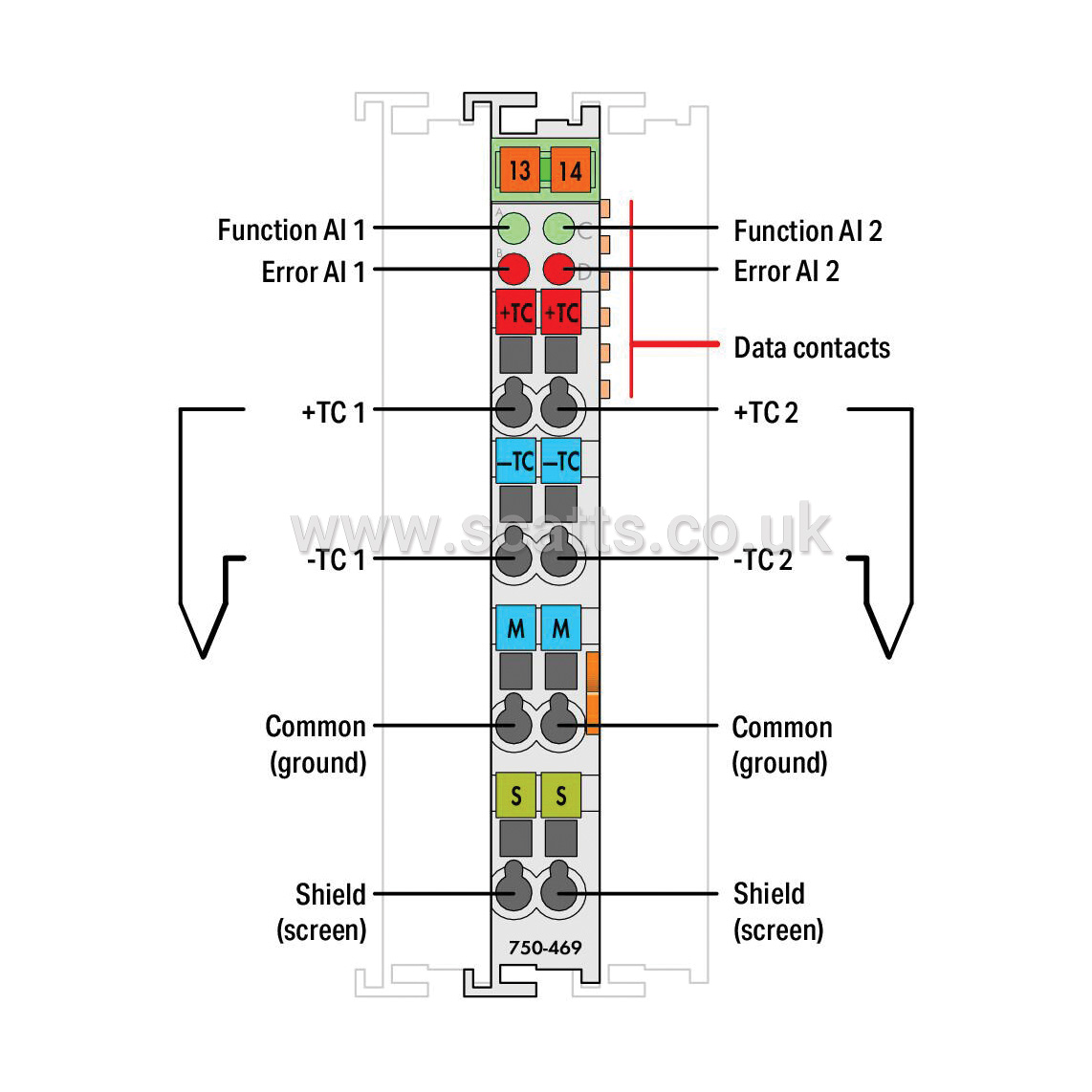

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
